School Bus

This 4cm wide, 5cm tall, and 15cm long school bus is perfect for a paperweight or just decoration.

Design steps:

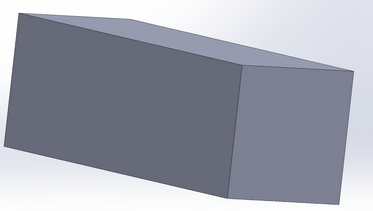

First, I boss extruded the main body of the bus:

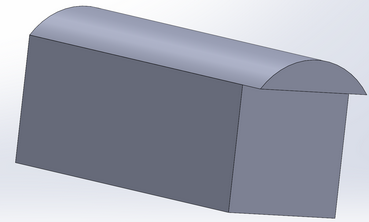

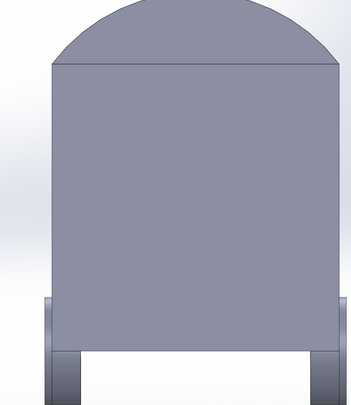

Then, I added a sketch for the top of the bus:

Then I added tires:

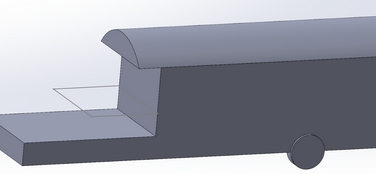

Then, I added the bottom of the front of the bus:

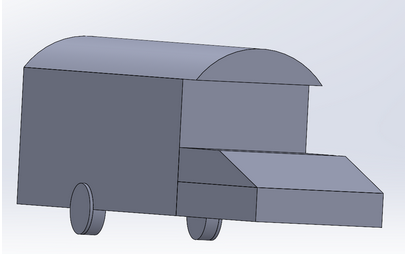

After, I designed the hood using the loft tool:

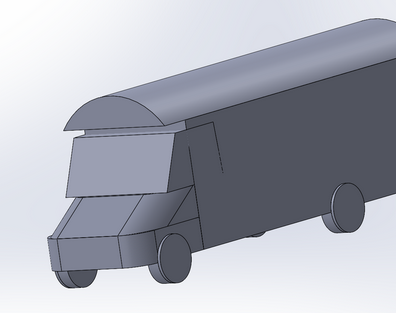

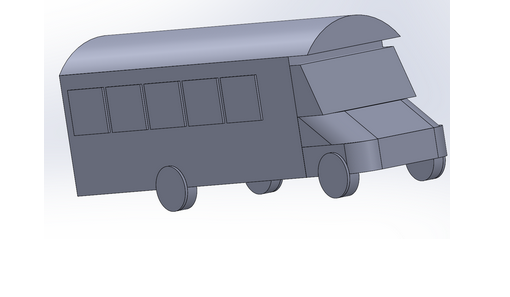

I used the loft tool to create the windshield:

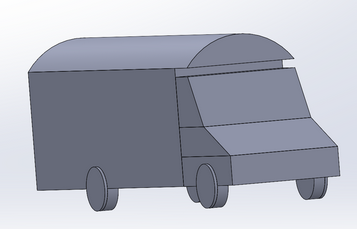

I used the fillet tool to smoothen out the front:

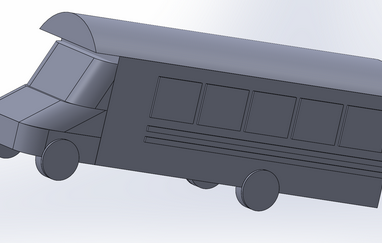

Then, I used the boss extrude tool to add windows and stripes to both sides of the bus:

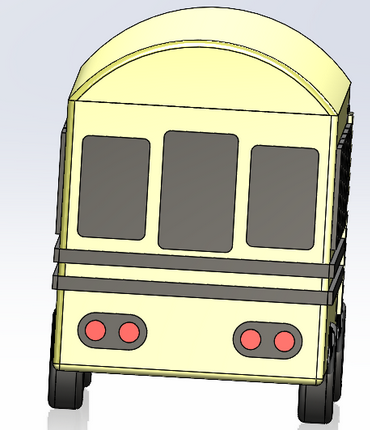

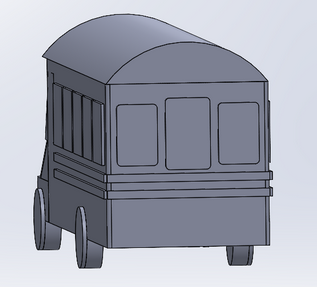

After that I designed the back of the bus and used the boss extrude tool to add it:

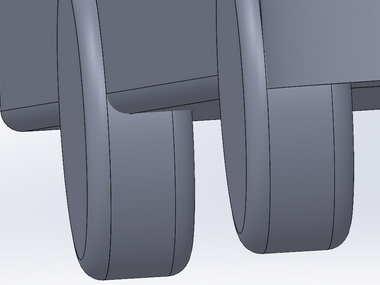

I filleted the wheels so they were smoother:

To add more detail, I added a sketch to the front:

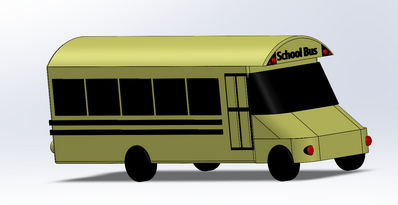

I colored the bus:

I boss extruded lights in the back:

I added more detail to the wheels:

I designed the stop sign. I used the dome tool to create the lights:

I added more detail to the front sign:

Design choices:

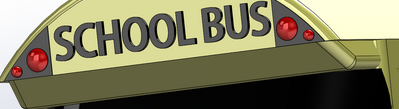

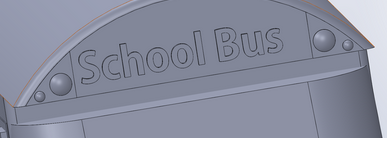

One of the first changes to the school bus design was the front sign that said “SCHOOL BUS”. I changed it so that it is in all caps and in the correct font:

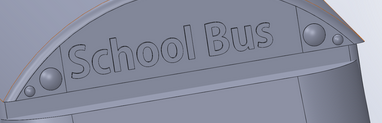

Before:

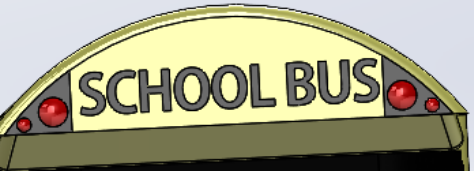

After:

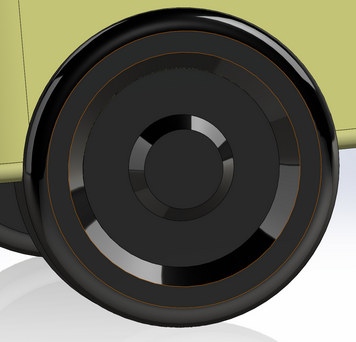

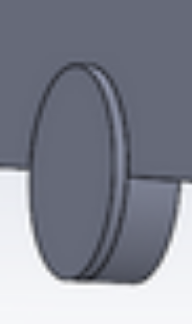

The next change I made was to the wheels. I thought that they weren't detailed enough, and after a few different attempts, I found a good solution:

Before:

After:

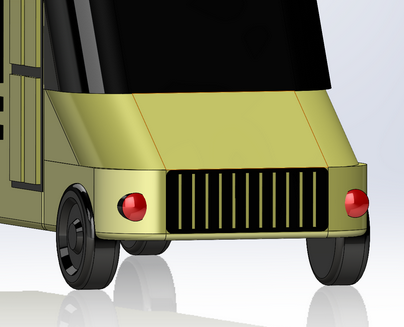

Near the end of the modeling of the bus, I experimented with adding a grail. In the end, I thought it didn’t look good with the rest of the bus and I removed it:

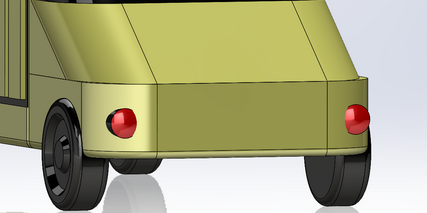

With:

Without:

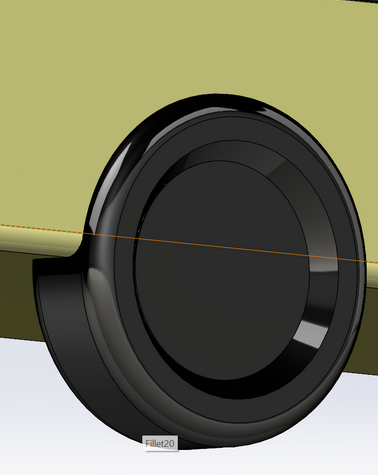

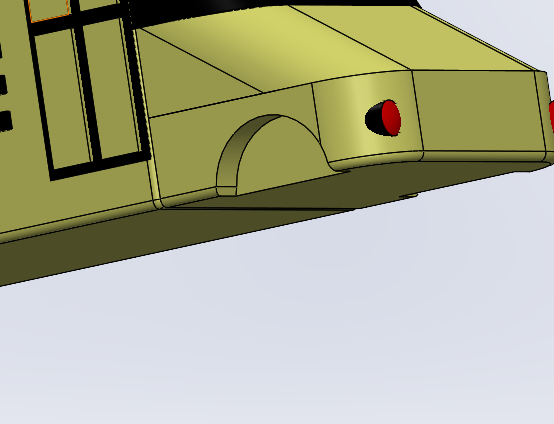

Finally, before slicing, I realized that I would need to print the wheels and the bus separately, and when I separated them, there would not have been a hole for the wheels. I fixed this by adding indents for the wheels:

Reflection:

After printing, I super glued the wheel to the bus. The wheels fit perfectly. Some of the smaller details, such as the text on the stop sign and a light on the front didn't print, which could have been solved by scaling up the design.
