This model is composed of,

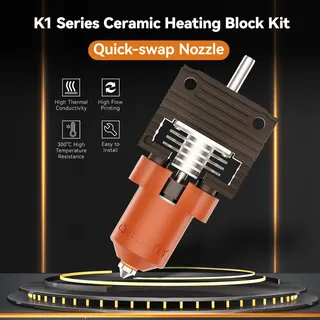

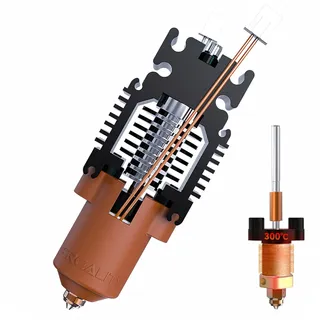

K1 hotend, older version, did not test with the newer unicorn nozzle because the distance between the extruder and hotend is not the same;
K1 extruder, i used one of those knock offs;
4010 fan for the hotend;
5015 fan for the part fan;
M2 screws for - holding the CR holder part and the hotend
M3 screws for - all the other parts

If you see a hole with \u00d84,2mm, it is for a M3 insert.

If you see a hole with \u00d82,8mm, it is for a M2 insert, there are 4, two for the hotend and two for the CR holder part.

I did not account for the used bolts, please see yourselft.

IMPORTANT: Requires drilling the X plate carriage to install it.
