Spaghetti /pasta /noodle drying rack stand with tripod

We often make our own noodles and needed a stand for drying them. The tripod is more compact and lighter, making it easier to transport and store. It also provides better stability, especially when loading noodles unevenly.

How I printed it

I have printed base/stand using 0.2mm layer, 3 walls and 50% grid infill in PETG.

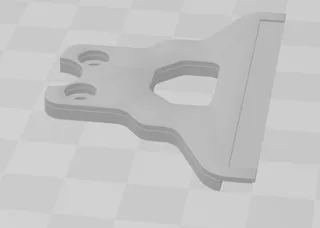

1. Rod_holder_tripod_leg_M3 X3
2. Rod_holder_tripod_main_M3 X1
3. Rod_holder_6ways X 1, or Rod_holder_1way X6   (support on build plate only)
4. Pasta Dryer Bottom Clamp_M4 X2

How to assemble it

1. Tripod Assembly
   Begin by assembling the tripod using three M3 bolts and an Allen key.
2. Insert the Stand Pole
   Insert a pole—either a wooden stick or an aluminum pipe—with a diameter of 14 mm into the central hole on the tripod platform.
3. Attach the Bottom Clamp
   Slide the Pasta Dryer Bottom Clamp_M4 onto the stand pole. Secure it in place using one M4 bolt and an Allen key.
4. Prepare the Rod Holder
   Insert six wooden sticks (each with a diameter of 3/8 inch or 9.5 mm and a length of 8 inches or 20 cm) into the holes of the Rod_holder_6ways.
5. Final Assembly
   Place the assembled Rod_holder_6ways onto the stand pole, positioning it just above the Pasta Dryer Bottom Clamp_M4.

when you want to store this drying rack., you can disassemble wooden sticks from Rod_holder_6ways  and fold three legs in tripod.

Original drying stand version can hold single wooden sticks. My version scaled size and can hold 6 wooden sticks.

Original tripod is larger in size. Mine was scaled to a smaller size to fit my Stand Pole.
