Garden Hose Valve

The In-line Valve with Double Male Quick Connect is a versatile and essential tool for any garden or irrigation system. Designed to connect perfectly with standard quick couplings, it offers a convenient and efficient way to manage water flow. The double male quick connect ensures a secure and leak-free connection, allowing for easy connection and disconnection of hoses and other irrigation accessories.

A key feature of this inline valve is its flow control mechanism, which allows for precise control of water delivery. This makes it ideal for a variety of applications, from watering plants and lawns to washing cars and outdoor surfaces. With a simple twist, users can start or stop the flow of water instantly, giving them maximum control over their irrigation tasks and saving water as needed.

Operation:

To close the flow: screw the valve (rotate clockwise).

To open the flow: unscrew the valve (rotate counterclockwise).

Note: If you do not have TPU, you can use 3 standard O-rings (16mm x 2mm) and a Gasket with external diameter 16, internal diameter 8 and thickness 2 mm.

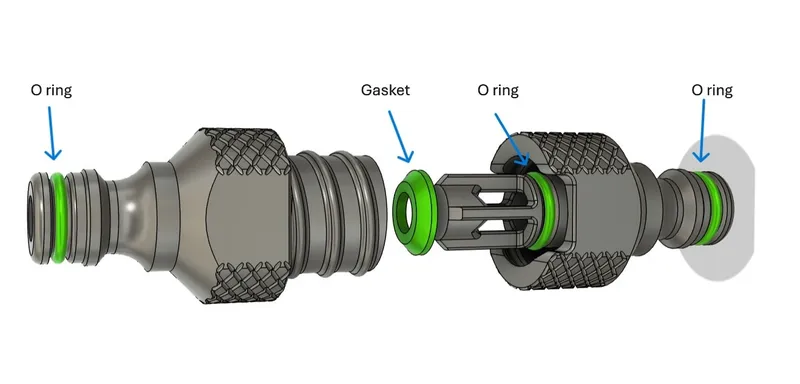

Assembly, insert the gasket and O-rings as shown in the figure

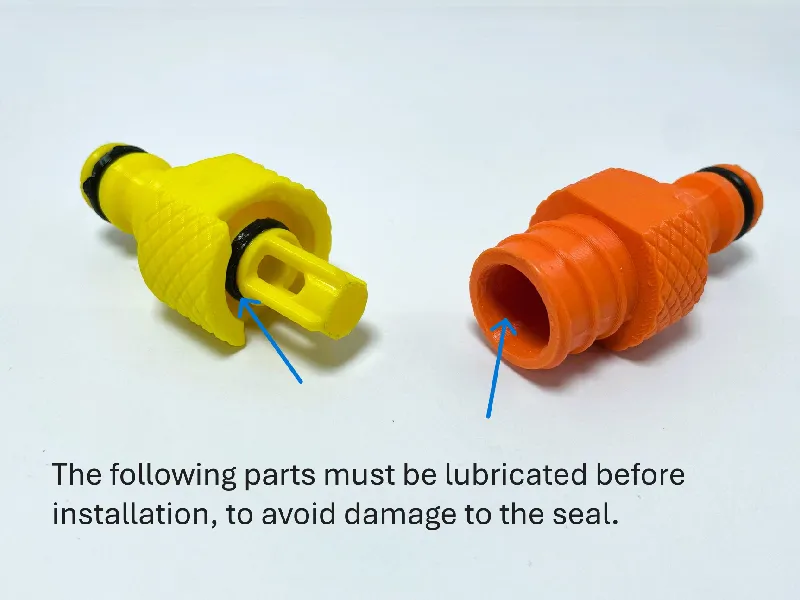

The following parts must be lubricated before installation, to avoid damage to the seal.

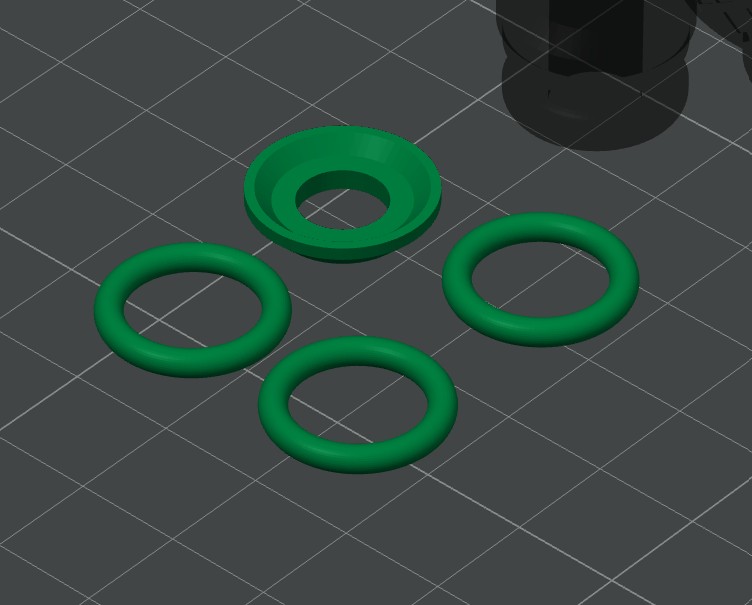

The parts to be printed in tpu.
