The Collector (Dead Cells) mod for Dummy 13

Another fanart mod using the same base, this time it's Collector!

PLEASE read the description both for this mod and for Dummy13 before printing!

On first try it's not easy to print and not easy to assemble, some parts can break, some parts can be tighter/looser fit than needed depending on materials & printing conditions, and in general resizing can add to some problems.

Please note that only modded parts are included!!! For this mod you will also need:

• Dummy13v1 frame (linked below): frame chest, frame neck, frame head, frame waist, frame hip/shouder x2 (only for legs), frame knee/elbow x6, frame ankle x2
• Frame from Organic Arm (linked below)
• Frame mid-leg from Digitigrade Legs (linked below)

Please note! This mod is made at 100% for remix compatibility.

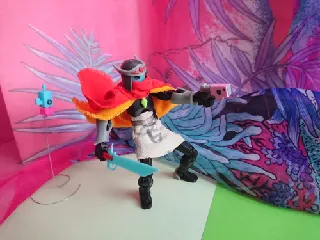

But I wanted my actual toy to be bigger so figure in photos is printed at 120%.
I did some test prints at 100%, overall it should be working okay, hopefully.

Some parts will require printing with supports: skulls, maaaybe chest piece, abdomen (upside down to keep spine spikes clean), mid-leg armor (add adhesion for that one to make sure it won't fall over).

Proportions of this body are somewhat exaggerated. Don't think too hard about it or feel free to play with files further.

However, there is already some weird geometry going on in several places that I wasn't able to completely fix without redoing alot from scratch. This is bc there was quite alot of manipulating done, including upped polygon count, resizing, mirroring, etc. It's probably fine as long as models are slicing.

I also included blank chest and abdomen for remix purposes if you want them. Mid-leg armor also can be adapted back to standard legs by cutting off bottom part.

There are places where I had to sacrifice aesthetics for mobility and mobility for aesthetics. I'm still not quite satisfied with everything but also Done Is Better Than Not.

Skull pauldrons are very hard to take off once arms are fully assembled. At 100% it becomes easier after few tries but at 120% it's significantly harder. Be careful with test fits, you may end up with pieces stuck.

Also! Ankles are gonna be a weak spot eventually!! Even if you think it's stable at first, don't be fooled! This fig is quite top-heavy and will eventually become looser under all that weight! Take that into account when assembling and displaying/storing later!

Syringe and Panacea Bottle are sized for figure printed at 120%. Both are empty and printed with transparent PETG so they could be filled with paint/glitter/thread etc. Or alternatively you can use jewelry glass bottle like I did, and some acrylic beads for Cells.

Syringe is more of a prop than Dummy style weapon for one reason – my figures are printed at different scales. I tried to scale it accurately to both Beheaded' and Collector' in-game sprites. If you don't like that it's just a prop – feel free to adapt it's handle. I have to say tho, even mostly hollow plastic, it ended up heavier than expected and will topple the figure over. Also for syringe needle you can use emptied gel pen cartridge (4mm diameter), imho it looks abit prettier than printed version. Ideally Syringe assembly shouldn't require glue but that will depend on materials & print settings.

This figure requires fabric outfit, patterns incuded are sized for 120% without seam allowance so you will need to upscale or downscale them abit depending on your choice of size. For hood specifically you'll need fabric that can be pressed to hold right shape. There are fold lines on pattern for that. It will sit weird if you skip that step! Cotton woven fabrics are best choice.

Also if you want Collector in his NPC attire, you can print him in black&blue, and there's a very nice lowpoly model on thingiverse that includes his tank. I didn't use it for this remix so I'm not including the link but it's easily searchable.

-Frame edited for new proportions
-Torso enlarged, changed shape, smoothed, added details on
-Reshaped arm a little
-Reshaped skull to add teeth and horns, added tech cutouts
-Leg tech cutouts edited, thigh reshaped, mid leg edited for digitigrade addon, lower leg mirrored, lower "knee" reshaped
-Feet made from scratch, added toe articulation
-Manakles made from scratch, chain link resized
-Syringe made from scratch
-Bottle made from scratch
