Cybergun Scar-L replacement stock

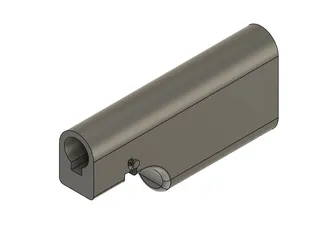

Pretty simple non-adjustable replacement stocks for Cybergun Scar L AEG airsoft gun. 5 different lengths.

I edited the models to have more space towards the back. I left the original model with less room in. Its the one closest to the buttpad.

Ill refer to the bigger “half” of the stock that's closer to the gun when locked into position as the first half, and the smaller half that you're replacing with this print as the second half.

Hardware required and where its used

• 2 m4 nuts (glue into the second half of the stock before installation)
• 2 m4 washers (one between each bolt and the first half of the stock)
• 2 m4 8-10mm bolts (through the holes in the first half of the stock)
• 3 m3 heat set inserts (one for each hole on the “bottom of the boot”)
• 3 m3 washers (1 between each 3mm bolt and the buttpad)
• 3 m3 14-16mm bolts (one for each heat set insert)

Modifications required:

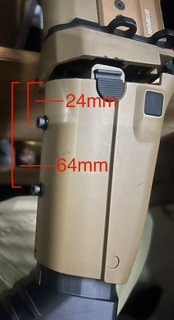

2 holes in the bottom of the first half of the stock. These are where the 4mm bolts will go through to secure the second half of the stock

Both holes will be on the mold line along the bottom of the first half of the stock.

Both holes need to be 4-6mm in diameter. I recommend 6mm so there is some wiggle room. It will work just as well as long as you use washers.

One hole 24mm from the face that closes against the receiver.

One hole 64mm from the face that closes against the receiver.

Printing Recommendations

I printed it as if it was a boot standing on the ground with auto tree supports and canceled the supports to the bolt holes and the print came out perfect.

6 walls for strength.

At least PLA+

To print what you want, delete the bodies from the STL or make a negative volume in your slicer and scale it to cover everything you don't want printed.

Feel free to message me or leave a comment with any questions! Happy printing!
