Shimano Bottom Bracket Bearing Press by TunnelVision.

A huge thanks to TunnelVision for the high quality design and documentation of this very useful tool. Original source description:

"Tool for removing and installing Shimano press-fit BB86/BB92 bottom bracket.

https://www.youtube.com/watch?v=2yMyXWclet4

CAD https://a360.co/2Omcynn

Print Settings

• Printer brand:

Wanhao

• Printer:

Wanhao Duplicator i3 V2

• Rafts:

No

• Supports:

No

• Resolution:

0.2mm

Post-Printing

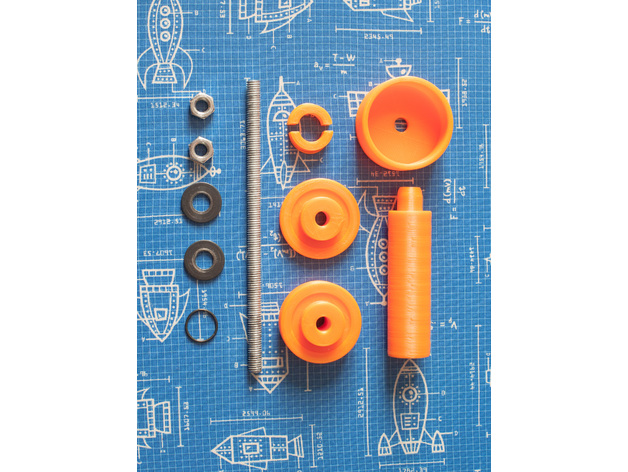

3D printed parts

For bottom bracket removal:

• 2 x collet
• 1 x cup
• 1 x expander rod

For installation:

• 2 x bushing 1
• 1 x bushing 2 (I glued bushing 2 back-to-back with 1 of the bushing 1's)

Additional parts

• ~150mm M8 threaded rod
• 2 x M8 nuts
• 2 x M8 washers. Large washers on the bushings help distribute the load
• 1 x small o-ring or rubber band to keep the two halves of the collet together - 18-21mm OD seems to work."
