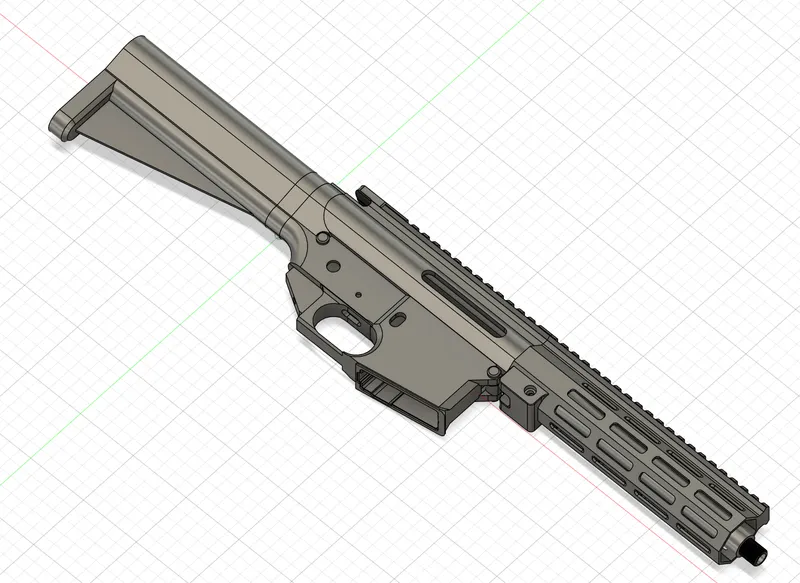

MWS at home

update 1

• add buffer make recoil to shoulder

Shooting Video

stupid assmeble video

in picture is old version i just forgot to make hole lol

stock cant adjust but i have longer version it look like orca

part you need to buy

• MWS triggerbox (dont print with FDM its work but have alot issus)

• MWS magazine (idk i just use tm mag dont know bout other brand)

• MWS nozzle fullset (but you can print ill make remix version later im justs lazy rn :P)

Pin

• M6x30 Button Head 1

• M6x35 Button Head 1

Hopup unit

• M3x4 Headless Hex Socket 1

• M3x10 Headless Hex Socket 1

• M3x12 Headless Hex Socket 6

• M5x30 Cap Head 1

Grip

• M5x30or35 Cap Head 1

Bolt

• M3x5 Cap Head 2

• Spring 0.5 wire , OD 4mm , legnth 13mm

• dia. 3x5mm

• bearing 3X9X4mm (MR93zz)

Print Part

• Stock

• Lower

• Upper

• Handguard

• Barrelnut

• Bolt

• Hopup

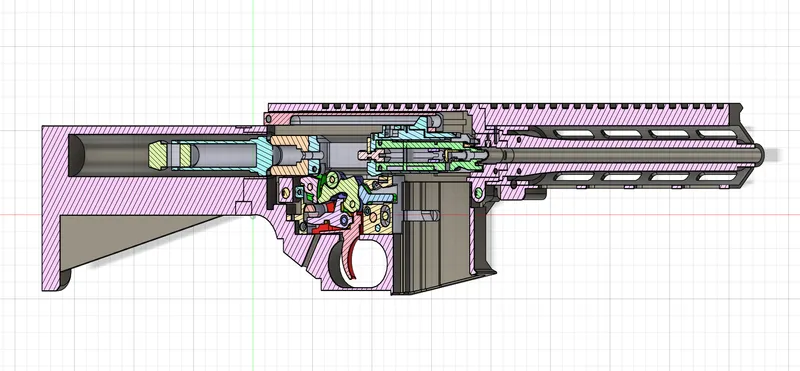

overall inside

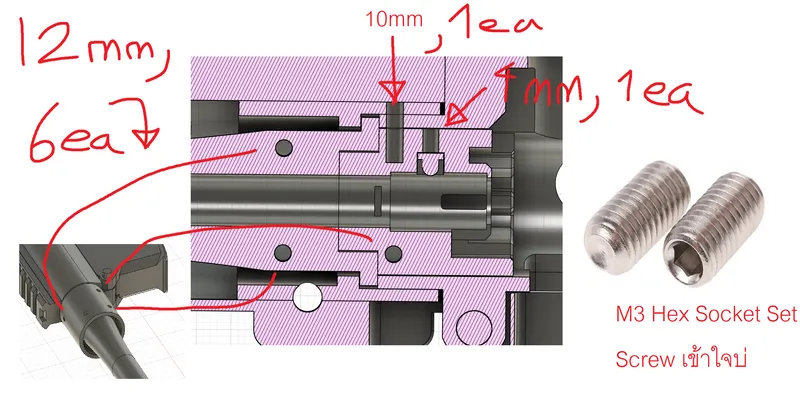

HOPUP UNIT (rework form stupid brain = not the greatest)

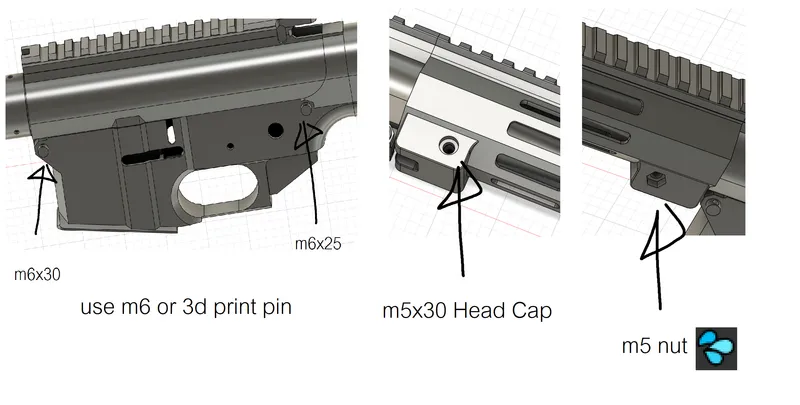

Body , Handguard

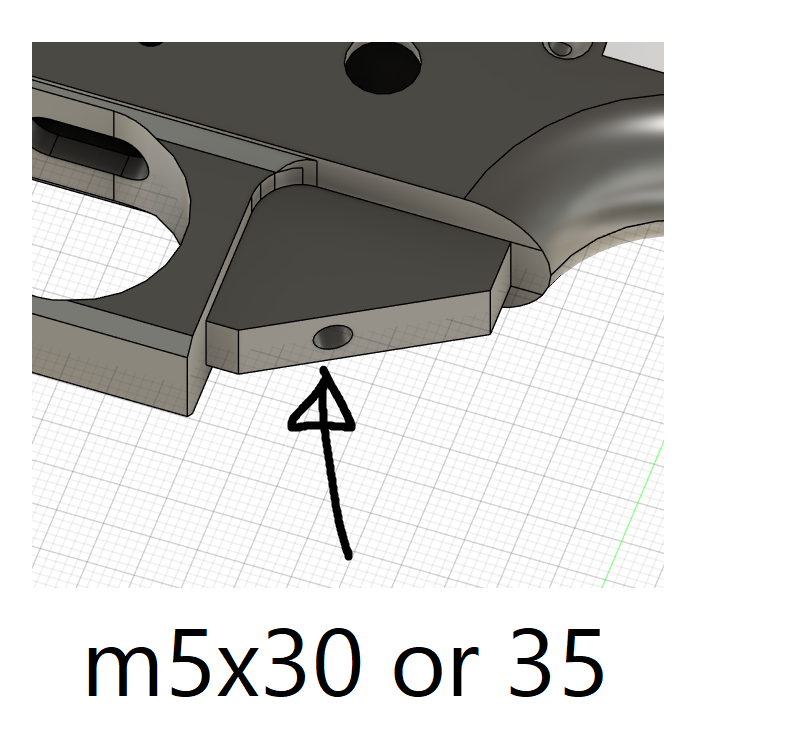

Grip

printsetting

• PLA+ 0.2

• wall 6 top/bottom 6

• infil 70%

• support YES


except bolt & buffer

• infill 100% (not 90%)

for someone having trouble about full auto and bolt stuck use this this instant of tm mws

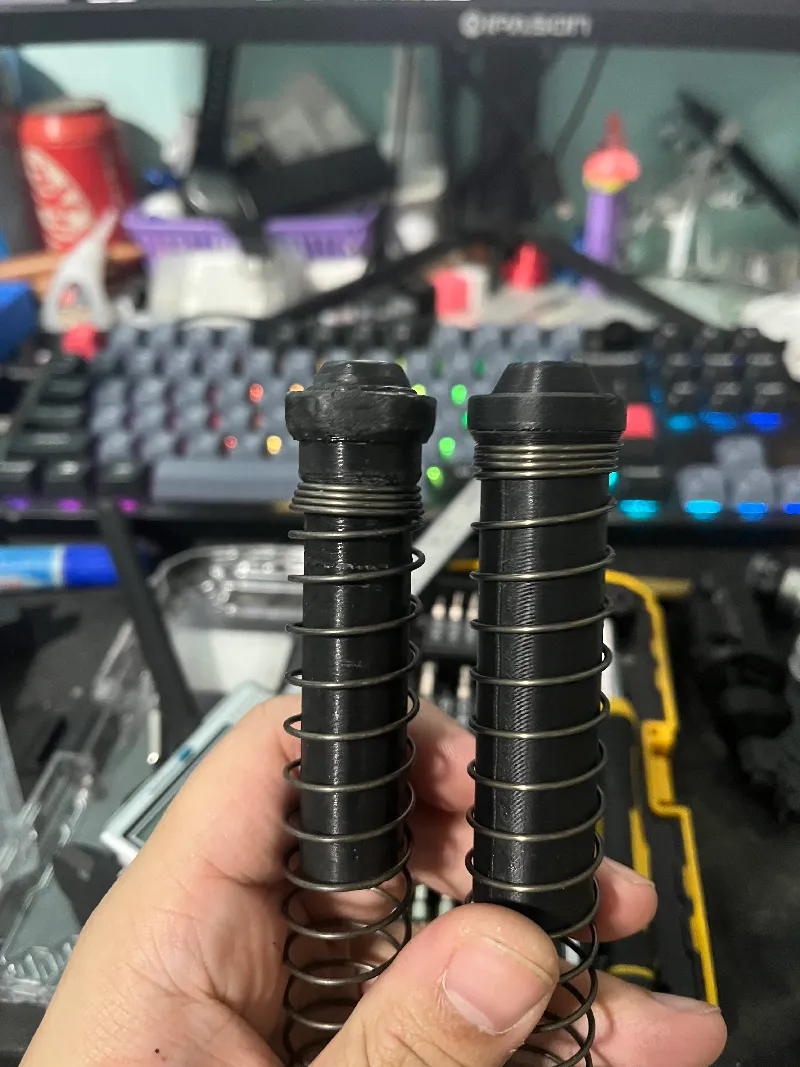

buffer spring
tm mws is wire 1.2mm OD 24mm legnth 295mm
my spring iwire 1.2mm OD 24mm legnth 400mm (295mm-400mm)

between 295mm to 400mm if you local store selling 350mm yeah you can ues that too

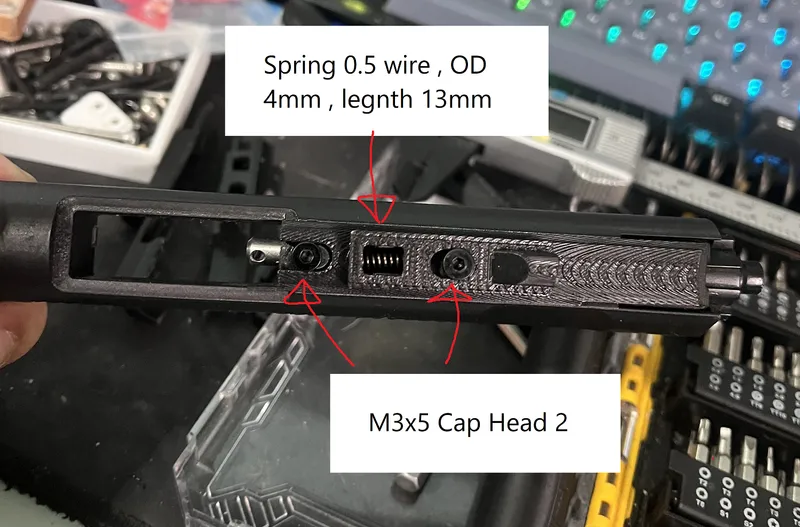

Bolt

• M3x5 Cap Head 2

• Spring 0.5 wire , OD 4mm , legnth 13mm

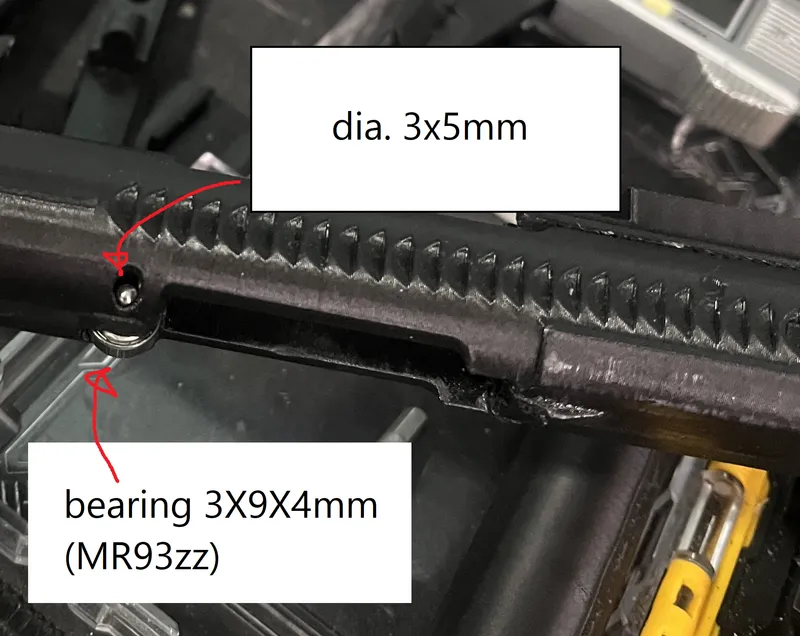

• dia. 3x5mm

• bearing 3X9X4mm (MR93zz)


Thank you so mcuh Vietnam Airsoft for releases Marui ZET system for free it include STEP

i know my design isnt that good but i hope yall have fun with it

(i make this model for 2 day)

:D
