Stereomicroscope LED-ring light adapter, customizable (designed for Olympus VMT microscope)

This is an customizable LED-ring light adapter which makes your old Olympus VMT steromicroscope bright and shiny.

Materials (BOM):

• LED-ring light with 3 screw attachment points

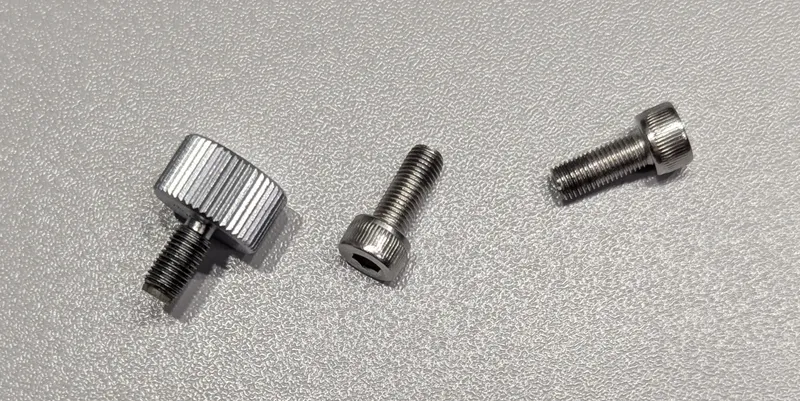

• 2 - 3 x M4 screws, length 16mm, pitch 0.5 for upper mount to the microscope

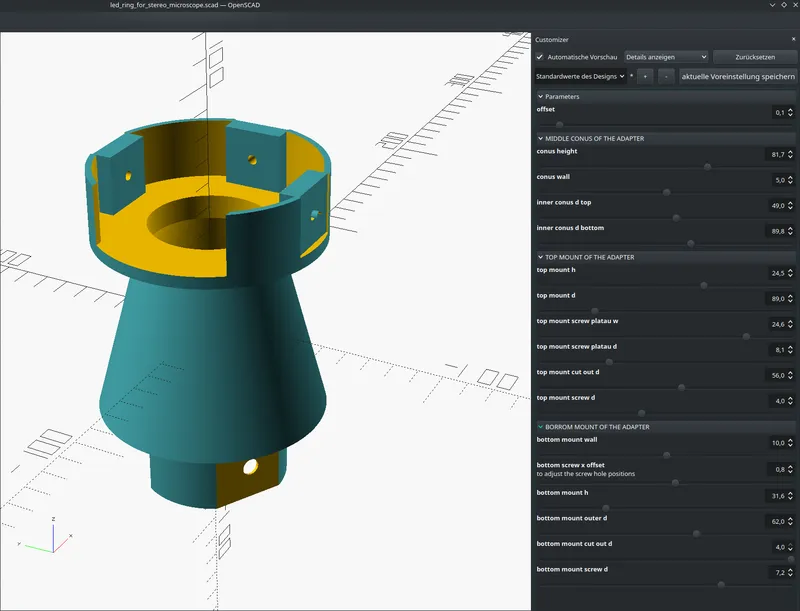

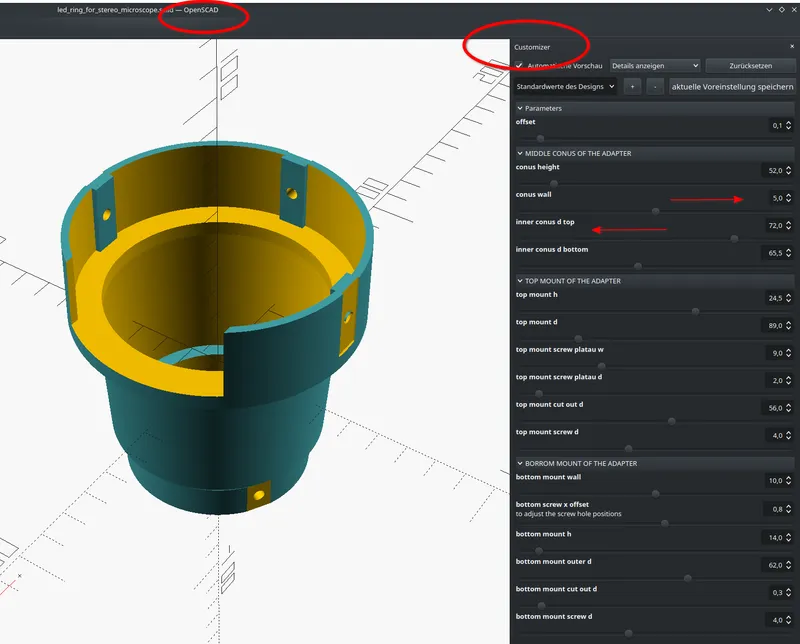

This model can be adapted to various microscopes and LED-ring lights by using the OpenSCAD Customizer functionality (no programming skills required) in the given OpenSCAD file.

For example:

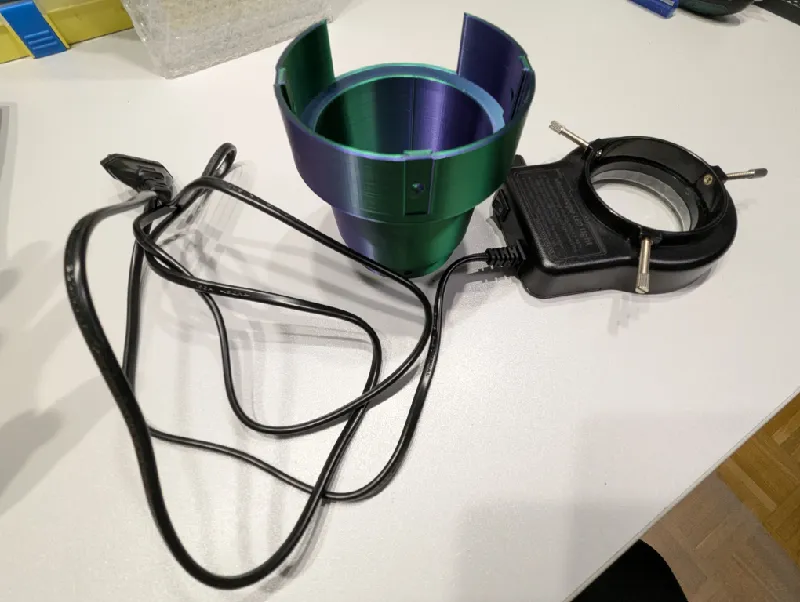

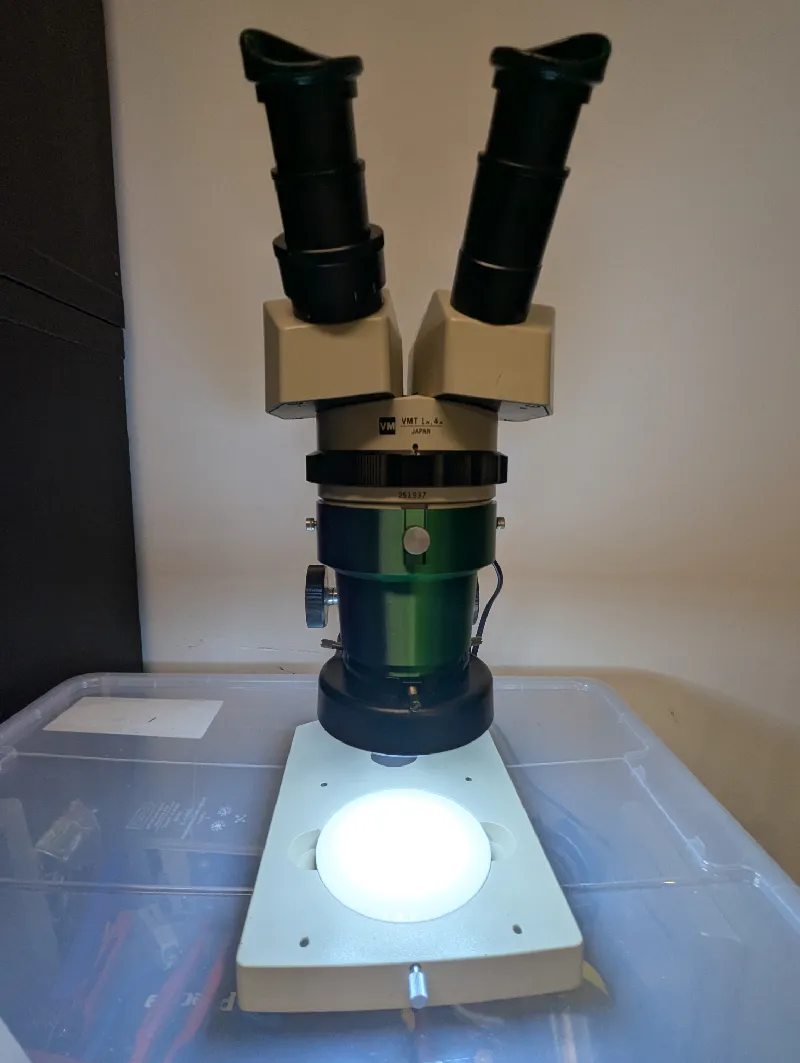

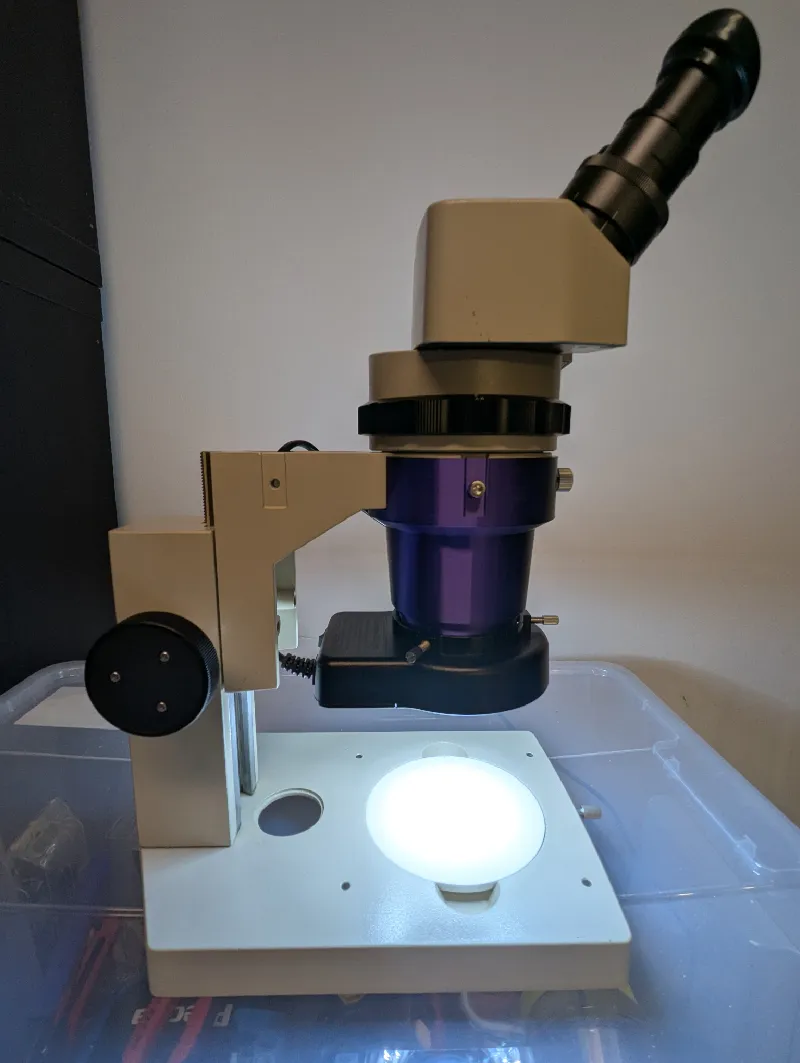

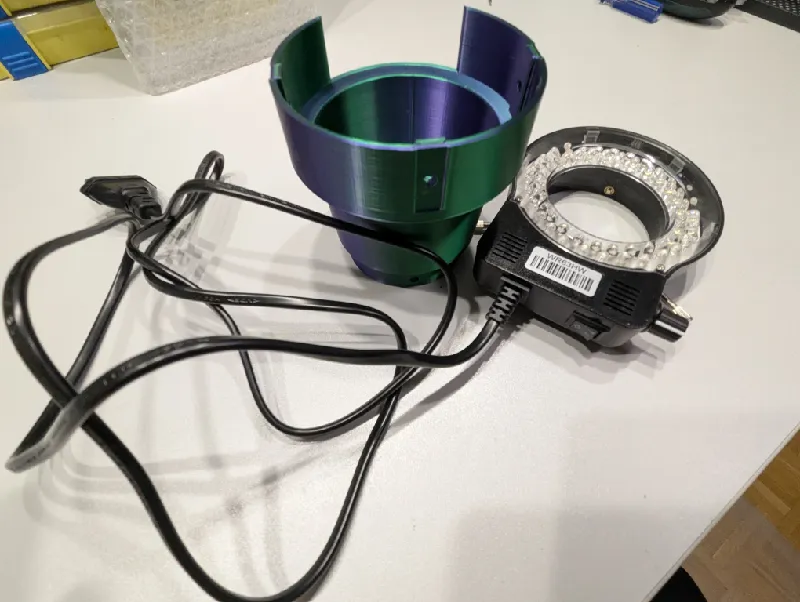

Some more project fotos:
