smthng display housing 1 (press-fit) for GaggiMate

***Before pushing the display into the housing, please make sure that the flat cable is centered over the cut-out and do not press on the sides of the display with force.***

smthng display housings for GaggiMate:

smthng display housing 1 (press fit):

15.07.25 v1.6:
- The holder has been slightly reinforced -> firmer grip on the coffee machine than before
- The press fit design has been slightly adapted: The display now sits slightly tighter and if it sits too lightly, double-sided adhesive tape can now be used on the three holders (as with the former “glue edition”)
- the rounding on the top for the transition to the display has been removed
15.06.25 v1.5:
- The housing is now slightly wider on the underside so that the display can be inserted more easily despite the power plug.
- The rounding above the ribbon connector on the housing has been reduced so that the seal between the housing and display is less dependent on the print settings. -> If there was a small gap there, it should now be gone or less visible.
- Small things have been improved to ensure a cleaner print (angles and curves have been adjusted to make it easier to print overhangs).
12.06.25 v1.4: The housing is now easier to install (see new installation instructions) and a problem that could cause a gap between the housing and the display has been fixed.11.06.25 v1.3: Bracket notch to attach the housing to the Gaggia has been slightly extended for a more stable hold.
04.06.25 v1.2: The holder for attaching the housing to the Gaggia has been extended, which solves the problem of the display being pushed out through the walls of the Gaggia for some.

Already tested with the following machines (could also work with other machines)

• Gaggia Classic
• Gaggia Classic Pro
• Rancilio Silvia

How to install (gluing optional)


1. Preparation, optional:

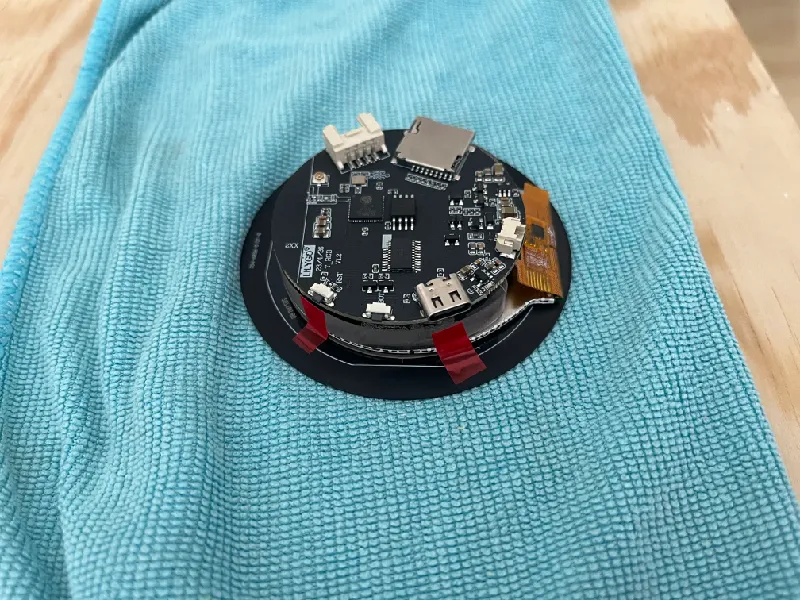

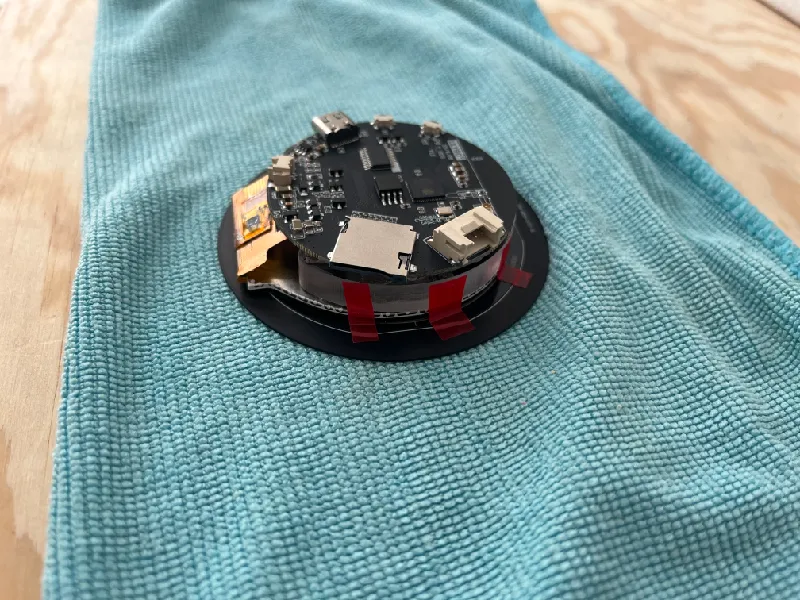

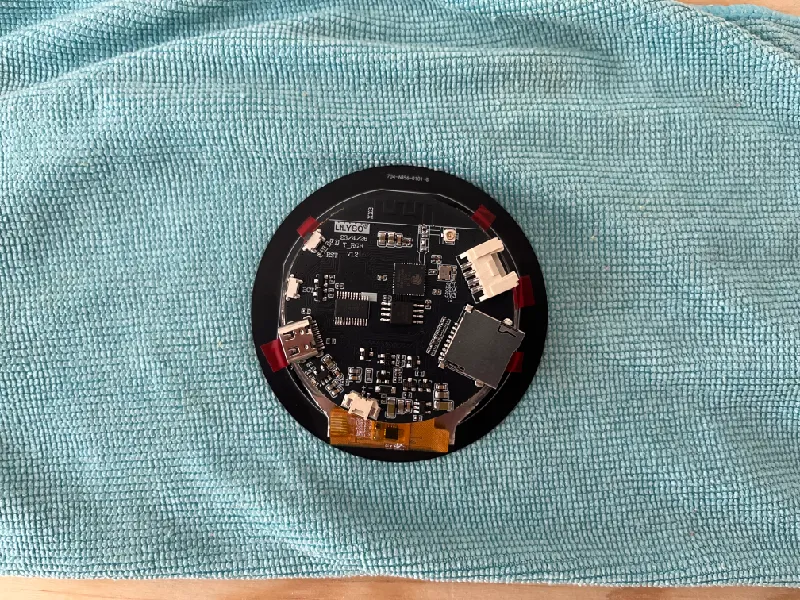

   The display itself is only clipped together between the reflective layers and the display. This can lead to them coming apart. This is not a problem, as they can simply be put back together again. However, you can prevent (or fix) this by attaching a few strips of adhesive tape to the side as shown in the following picture. These should start at the bottom of the display as shown in the picture and then go up the sides to the PCB board, but not over the connectors. In addition, the adhesive strips should not be attached to the places where the three holders of the housing will later be.

   (If you want to bond the layers with superglue, you should make sure that the glue is only applied to the edges, as if the glue touches the reflective layer it will create darker spots in these areas later - for this reason I recommend the method with the adhesive tape)

   .

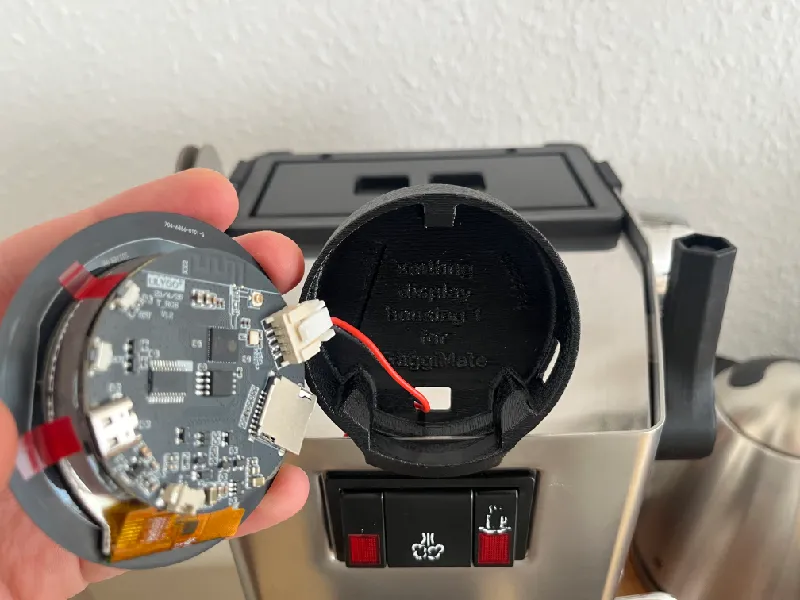

2. Lead the power cable with the plug from behind into the housing and connect it to the display.
3. Place the display in the center of the housing and align the ribbon cable centrally over the recess of the housing

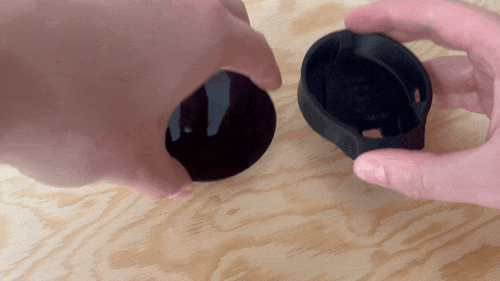

4. Now lift the display slightly and hold it as straight (horizontal) as possible. Then press it into the housing.
   Attention! Do not apply pressure to the edges of the display and make sure that the plug is centered in the notch.


5. Optional, if the dispaly is too loose in the housing:

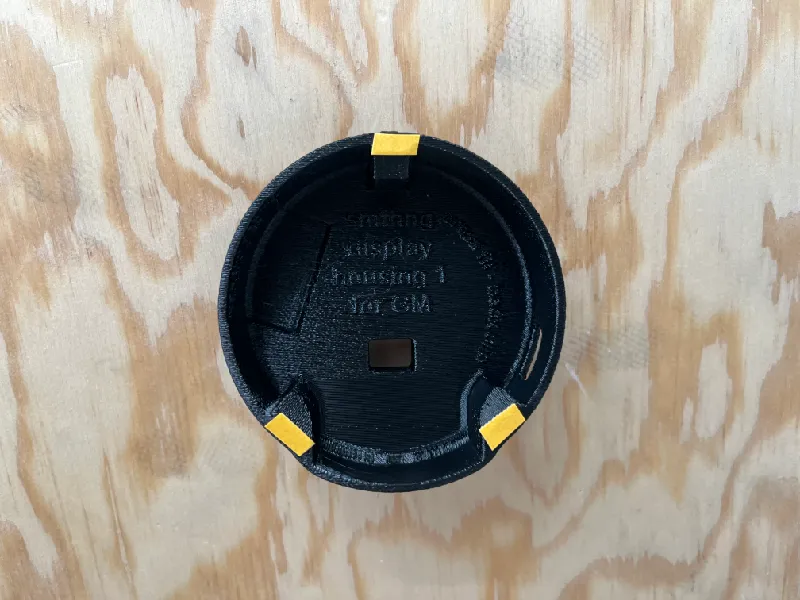

   Either you can gradually thicken the holders with some adhesive tape or you can attach double-sided adhesive tape to the three small areas on the top as shown in the following picture. (These are intentionally small so that you can still remove the display easily enough)


How to print

• It is best to print at a 45 degree angle without supports (Warnings due to floating regions can be ignored).
• Or: If there are adhesion problems, the housing can also be printed flat on the back, but then supports should be activated.
