SONOFF NSPanel relay box replacement
Flush housing for installing the SONOFF NSPanel to an existing extra low voltage cable network (replaces the relay box)
0
1
0
41
updated June 3, 2025
Description
PDFFlush housing for installing the SONOFF NSPanel to an existing extra low voltage cable network (replaces the relay box)
Additional parts:

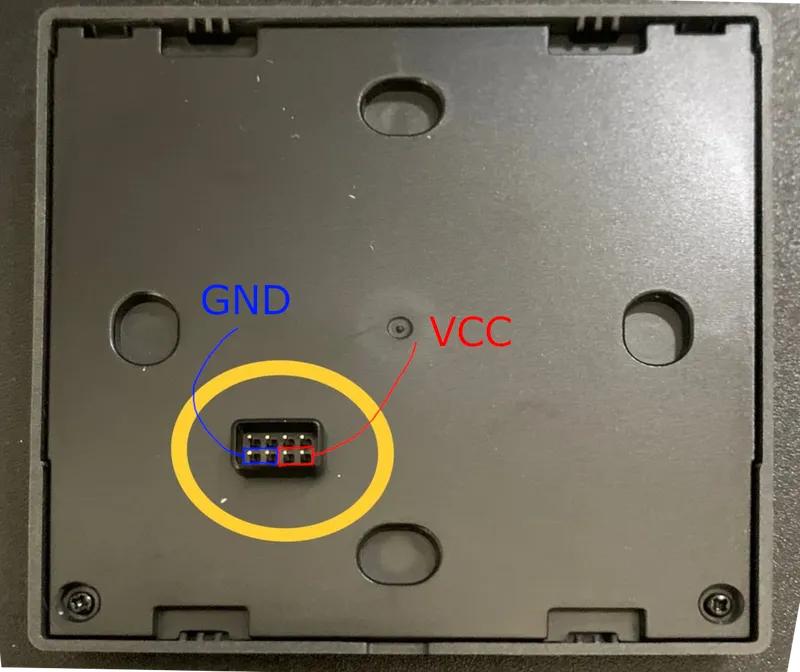

- MP1584EN (for converting the supplied voltage to the required 5V for the panel)
- Screw terminal block
- Dupont jumper wires (female)
