Ender 3 NG v1.2 reinforced toolhead base

Ender 3 NG v1.2 toolhead base with a bar in the middle to prevent warping
0
19
0
116
updated June 3, 2025

Description

PDF

In a heated chamber, the belt mounts of the toolhead base tend to pull apart and warp the model.  This makes the belt loosen over time.  This improved version includes a bar in the middle of the toolhead base to prevent the part from warping under heat.

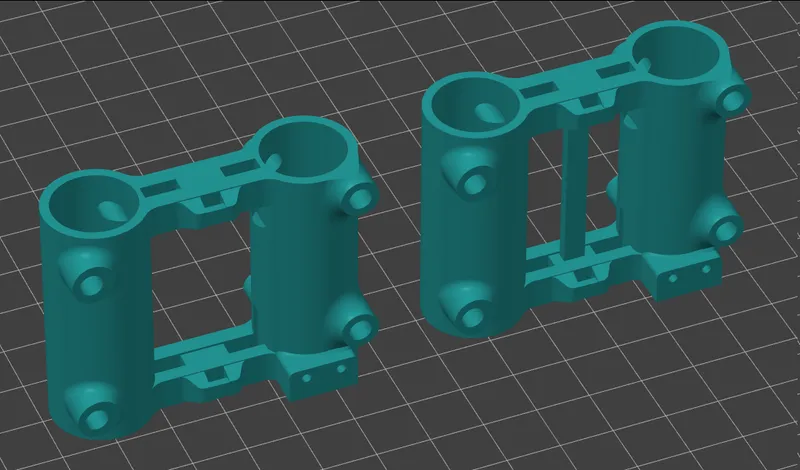

Here is a comparison of the original model on the left, with the strengthened version on the right:

Tags



Model origin

The author remixed this model.

Differences of the remix compared to the original

Reinforcement bar added to the middle
