Work Sharp Professional Precision Adjust rod holder

A rod holder for universal abrasive handles
2
5
0
47
updated June 3, 2025

Description

PDF

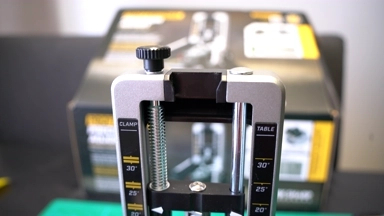

A rod holder for the "Work Sharp Professional Precision Adjust" knife sharpener.





The original handle slots into the top of the sharpener, but If you want to use a universal abrasive handle it won't fit. So this is a simple drop-in part that holds the rod itself instead.

It has a hole on the back for glueing 8mm magnets if that is wanted.







Print it with organic supports and support on build plate only.

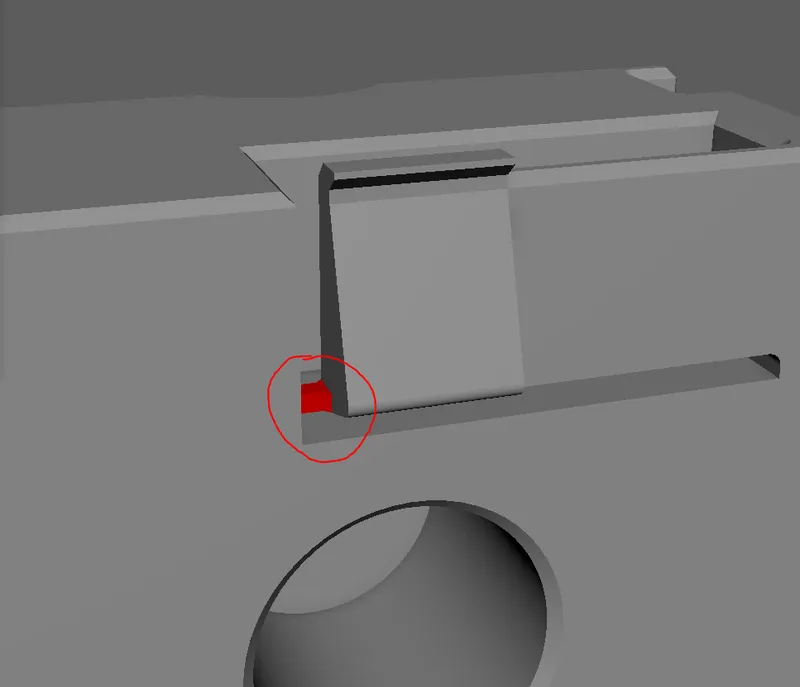

When it is printed take a thin blade and cut off the small bridging attachment on the rear locking clasp:



If the long overhang has drooped a bit and binds, you might have to slice off some material. The clasp need to be able to be flex for it to click into place.

And if you want to remove the rod holder you just have to push that clasp inwards and pull the holder straight up.
