Milwaukee Packout Medium Case 48-22-8424 updated 2025-06-20

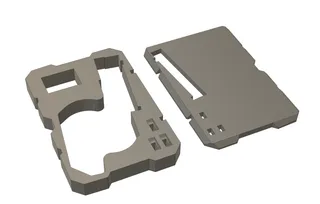

Blank for creating inserts for the 22" medium Milwaukee Packout case, now accounting for tapers in front and sides.
7
52
0
217
updated June 20, 2025

Description

PDF

Not meant for printing, although I guess you could. This is just a blank to use to generate foam inserts with. Looked around and couldn't find anything for these. I imagine this could be used for the small and large cases too but I don't have one to test with…



v3 accounts for tapers in the side wall thickness around the center and front corners.

also separated parts into thickness and role (center, edge).
