DB 648 - "Diesel Railcar" for Brio and IKEA railways

Dieseltriebwagen or diesel multiple unit for wooden railways compatible to BRIO, IKEA, etc.

Required parts (per wagon):

• 3x M2x16mm (total 6x)
• 1x M2x10mm (total 2x)
• 1x Ø 6mm x 3mm magnet (total 2x)

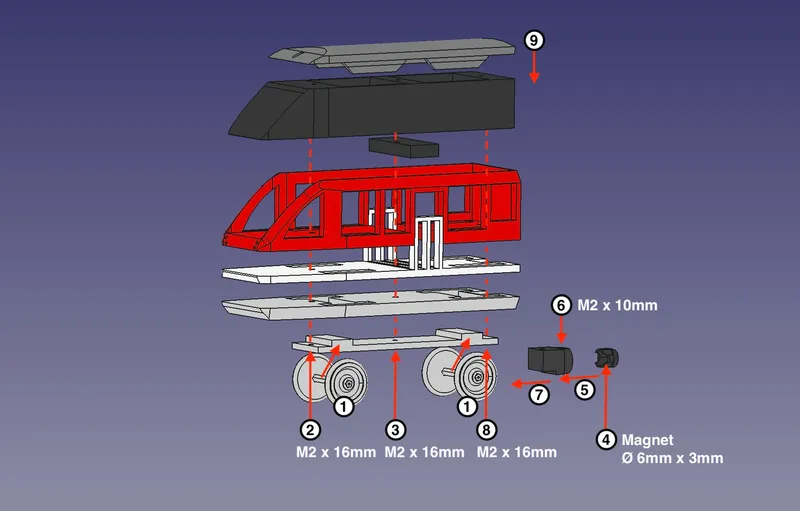

Building instructions

1. Assemble 4 wheels at two axis at the bottom plate
2. screw M2x16mm in the front most screw hole
3. screw M2x16mm in the middle screw hole
4. Add magnet into the magnet-cap
5. mount magnet cap in the coupling block
6. fix with M2x10mm screw
7. Plug the coupling block into the other parts
8. screw M2x16mm in the back most screw hole
9. Mount the roof
