Moto chain lubrication adapter 520

PRINTING PARAMETRS:

• Material: PETG etc.
• Layer height: 0.2 / 0.16
• Walls: 3
• Infil: 20-30%

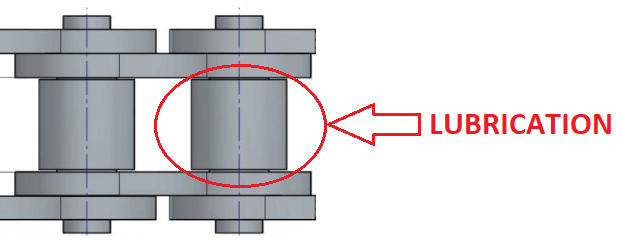

• With other models, I was bothered by the fact that the nozzles do not point where they should, maybe because people do not know what to lubricate on the chain correctly

• That's why I created my own tested model so that it is exactly as it should be, including tolerances for smooth use

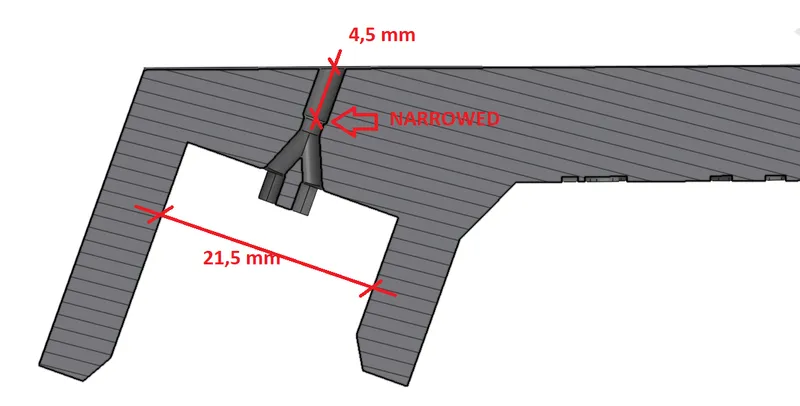

• I created a narrowing for the correct position of the nozzle.

Fits standard spray cans around 400ml. Does not fit narrow spray cans like Motul. Check the diameter. Should be around 65mm.

• The adapter simply slides onto the spray rim and it should click
• Tested on a D.I.D VX 3 - 520 chain
