Raspberry Pi DIN Rail Mount (also compatible with BTT SKR Pico)

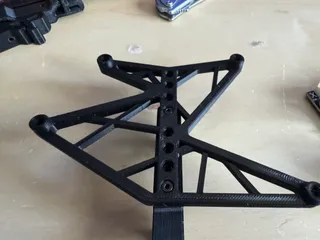

This design allows mounting of a Raspberry Pi or BTT SKR Pico to a DIN rail in conjunction with the Voron Design PCB DIN clip. It is compatible with the following boards, and any other board with 58mm x 49mm mounting centers with holes sized appropriately for M2 screws:

• Raspberry Pi 5
• Raspberry Pi 4b
• Raspberry Pi 3b+
• Raspberry Pi 3a+
• Raspberry Pi 3b
• Raspberry Pi 2b
• Raspberry Pi 1b+
• BTT SKR Pico

There are 3 sets of holes for connecting the design to the Voron clip to allow some adjustment in the direction perpendicular to the DIN rail.

Hardware list:

• M2x10 SHCS - 2
  Used to secure this design to the Voron DIN clip
• M2x8 BHCS - 4
  Used to secure the main to this design

If you have any questions or suggestions for improvement, please let me know.

This design is loosely based on the RPi mount from the Voron Design V0 Github, but is rotated 90 degrees. The hole sizes, overall shape, and adjustable connection points to the Voron PCB DIN Clip are borrowed from this model, but the CAD work was done from scratch by me.
