Servo Ball Valve for Drip Irrigation or Water Shutoff (1/4 ")

This 3D-printed design lets you automate on/off control of water flow in  ¼-inch drip irrigation tubing using an MG995 or MG996 servo. It’s ideal for garden automation projects, such as controlling water flow from a rain barrel to patio plants based on soil moisture levels.

Hardware Requirements:

Servo: MG995 or MG996

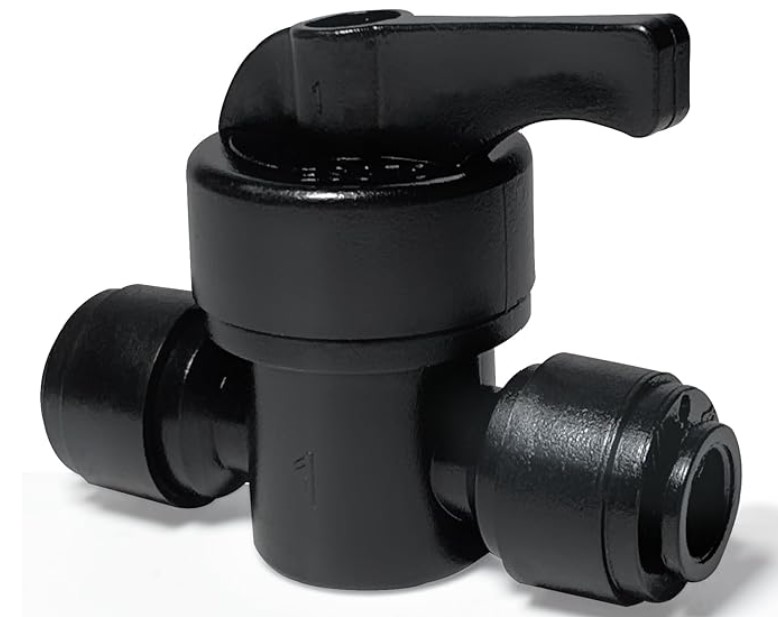

Valve: ¼-inch quick-connect valve (e.g., this model on Amazon; the part is widely available elsewhere)

Bolts: M3 x 20mm bolts (can use zip ties !)

Servo Horn: Use the included dual servo horn; trim the ends to press-fit into the coupler (no need for screws/bolts into servo horn)

Printing Notes:

Printed successfully in both PLA and PETG

Enable tree supports for the coupler part

Electronics and Control:

Control the servo using standard servo commands via ESP32, Arduino, etc.

In my setup, 0° corresponds to open and ~90–92° to closed

Use an example sketch like Sweep.ino to calibrate your servo range and align the horn properly

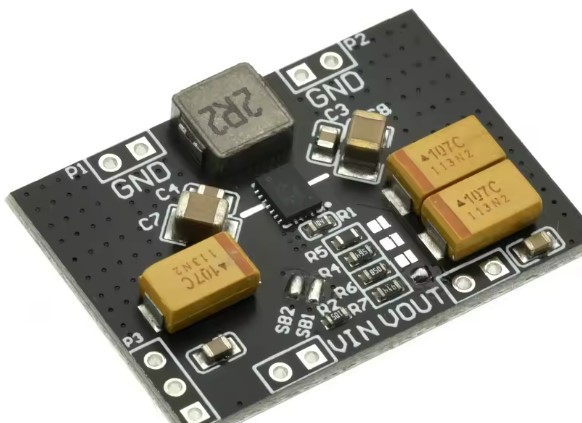

For a true “latching” valve that consumes almost zero power when idle (< 1uA), control 5V power to the servo using a TPS63020 (5V) buck/boost converter breakout board, desolder jumper SB2, then use GPIO pin from your MCU to control the EN  (enable) pin. Put a 100K pulldown resistor on EN. This lets me run the servo off a 1S LiPo that I use to power my ESP32. See a nice discussion of the TPS63020 here

https://youtu.be/8hKpQvw1nNw?t=566

Power Considerations:

Typical movement current: ~250 mA

Stall current can exceed 2A — ensure proper mechanical setup and software control to avoid stalling.

Use Case:

I use this system in combination with a rain barrel (gravity feed) and soil moisture sensors to automatically water patio vegetable plants.
