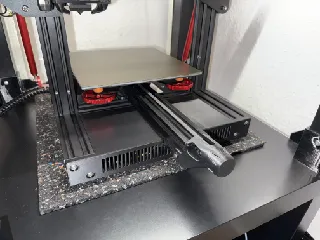

Ender-3 Meanwell PSU relocation
Few adjustments to already existing PSU relocation model.
Requires 2 m3 inserts.
3
17
0
95
updated June 2, 2025
Summary
PDFFew adjustments to already existing PSU relocation model.
Requires 2 m3 inserts.
Model origin
The author remixed this model.
Differences of the remix compared to the original
- fix left and right side misalignment
- increase hinges thickness by 1mm to add little more space for PSU wires when the socket is inserted
- increase screw holes for the power socket mount to use M3 inserts
- create 3mm deep space for bolts heads
- removed one hinge for a zip-tie and create the space for a bracket where reinforcement rod is attached to on my machine
