Modular HyperX Pulsefire Saga

Choose your own style with this new ergonomic design of the HyperX Pulsefire Saga Pro mouse. This design does not require a multi-color printer. Simply cut pieces of filament to create your unique design. You can also use leftover filament that you no longer need.
This ergonomic mouse with a minimalist design includes a textured thumb rest as well as a dedicated space to support your ring and pinky fingers, improving grip. You can also attach the optional wrist rest to enhance comfort during long gaming or work sessions.

Printing Settings
Mouse shell:
Material: PLA
Infill: 10% gyroid
Print the mouse shell vertically. No support is needed except for the wrist rest pivot mount.
I highly recommend using the smallest possible layer height to achieve a clean result and allow for smooth filament insertion.

Wrist rest:
Material: TPU
Infill: 15% gyroid

Mouse Assembly

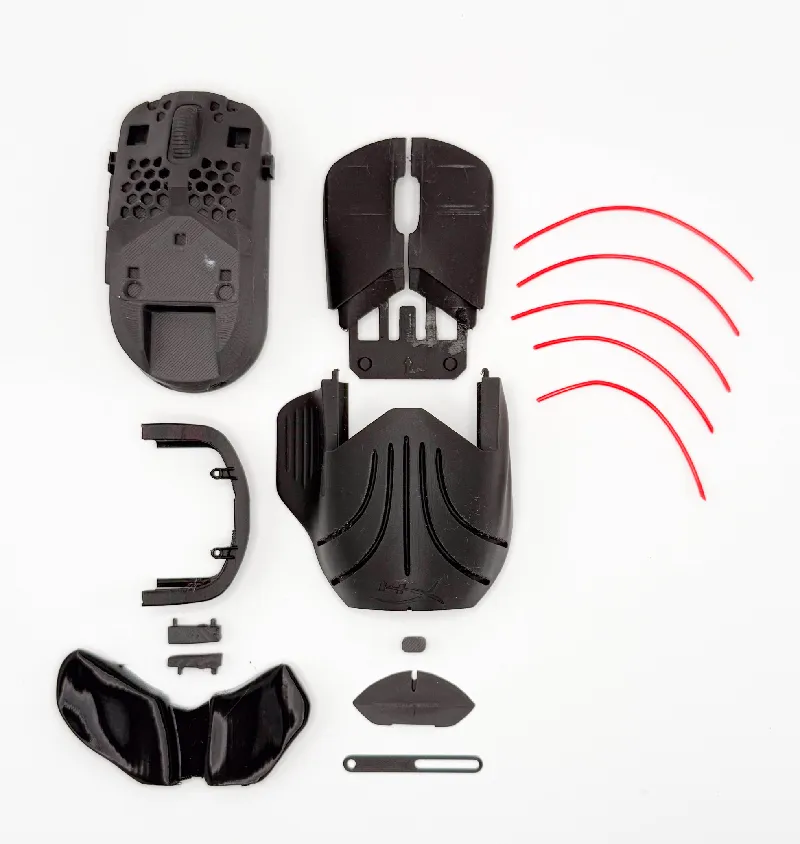

Cut the filaments to the following lengths:
2* 9cm

2* 11cm

1* 12cm

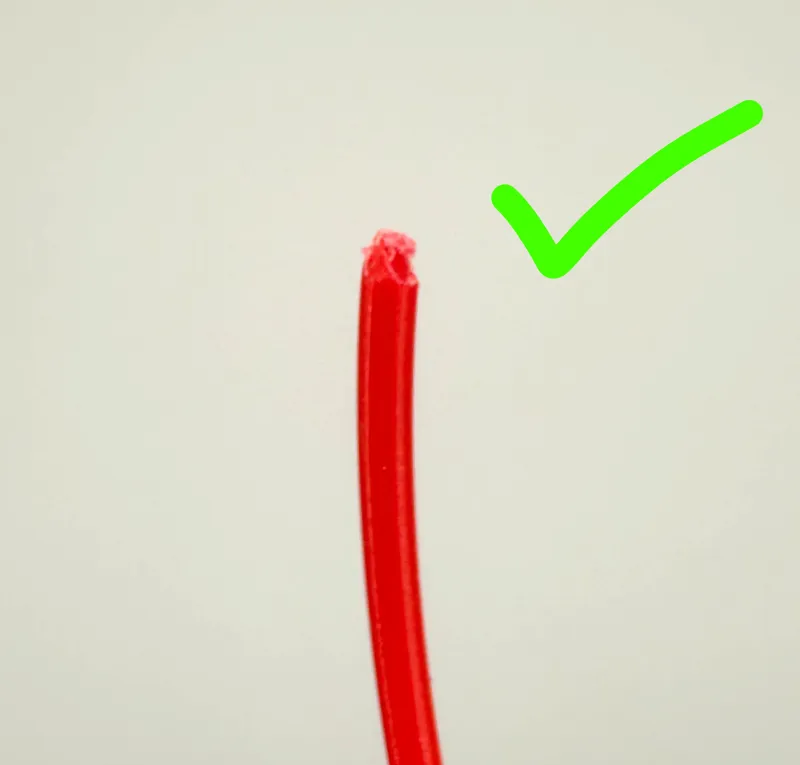

Make sure the ends of the filaments are rounded as shown in the image above to ease the following steps.

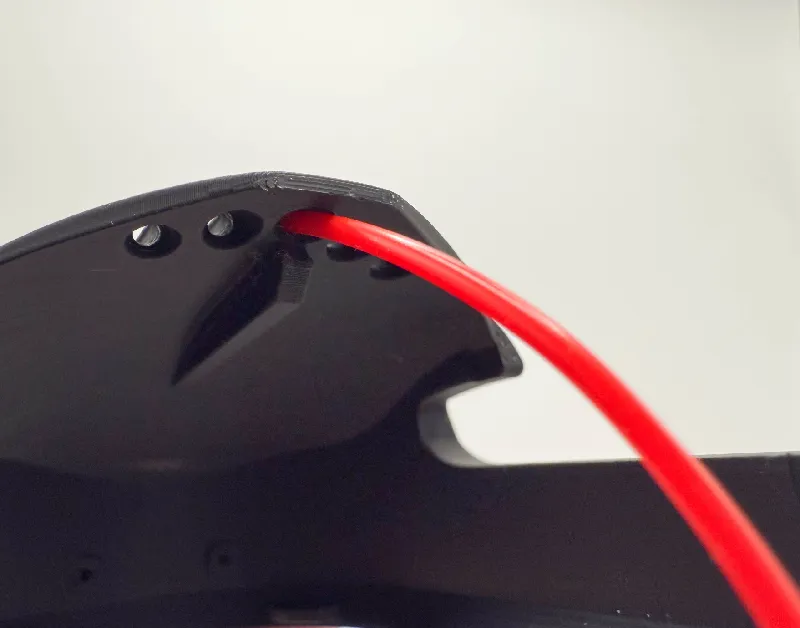

Insert the filament into the hole located inside the shell, then slide it through until it is fully inserted. Repeat this step for the other three filament pieces.

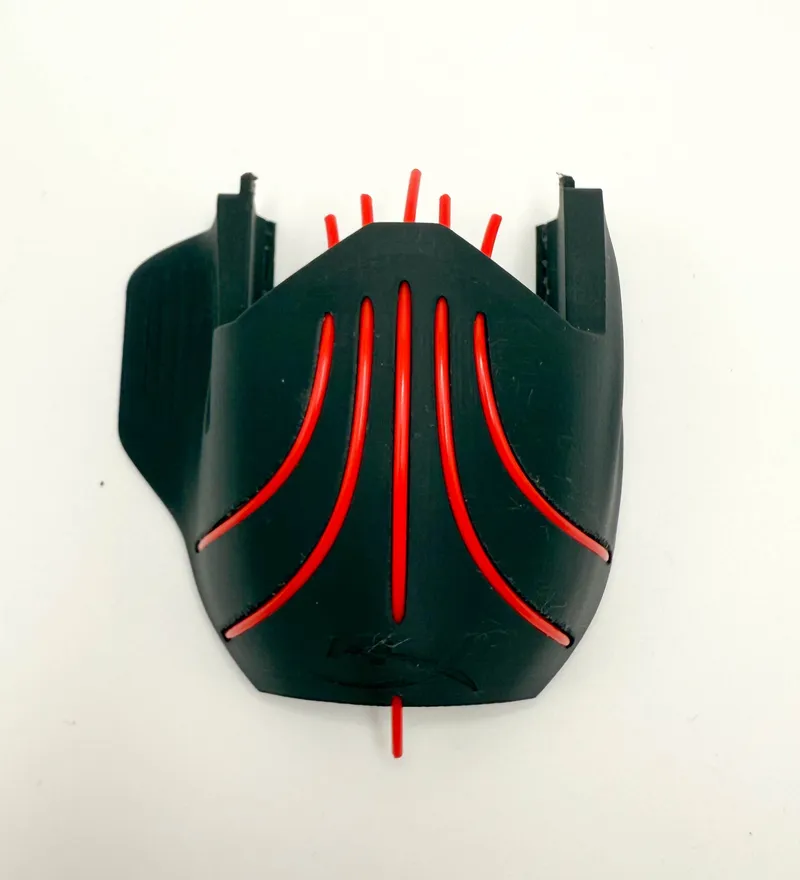

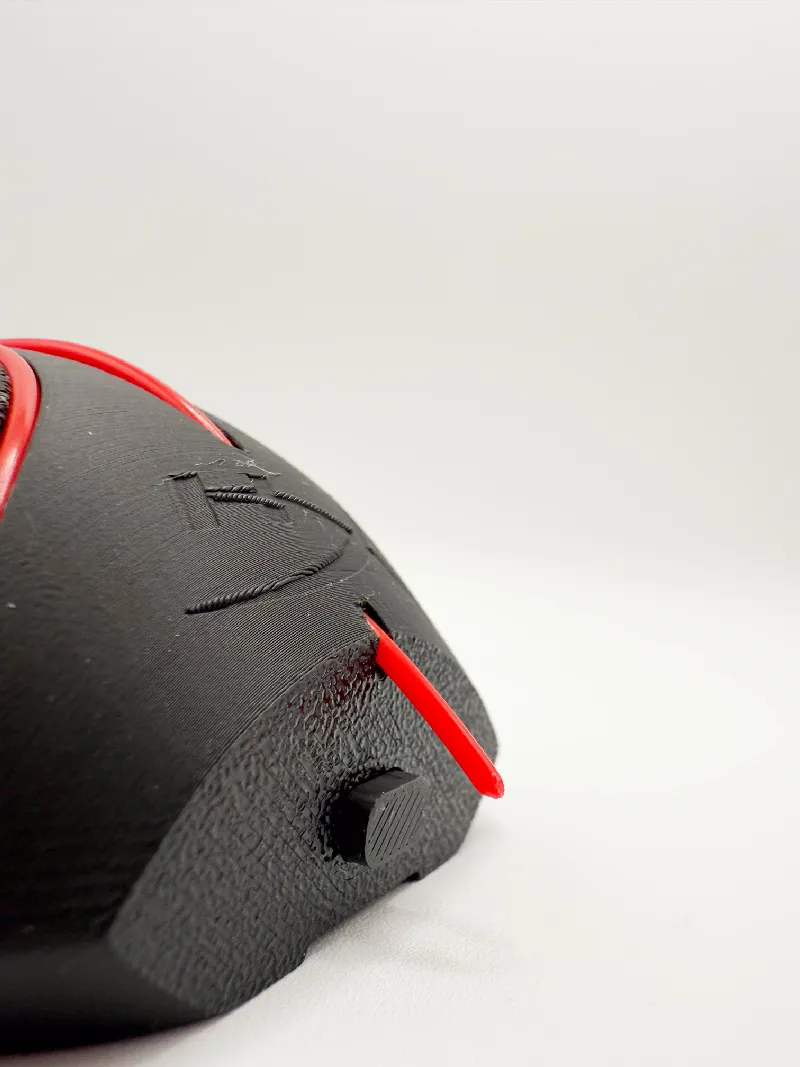

Ensure that the center filament slightly sticks out at the end.

Now insert the locking piece and glue the second part of the shell.

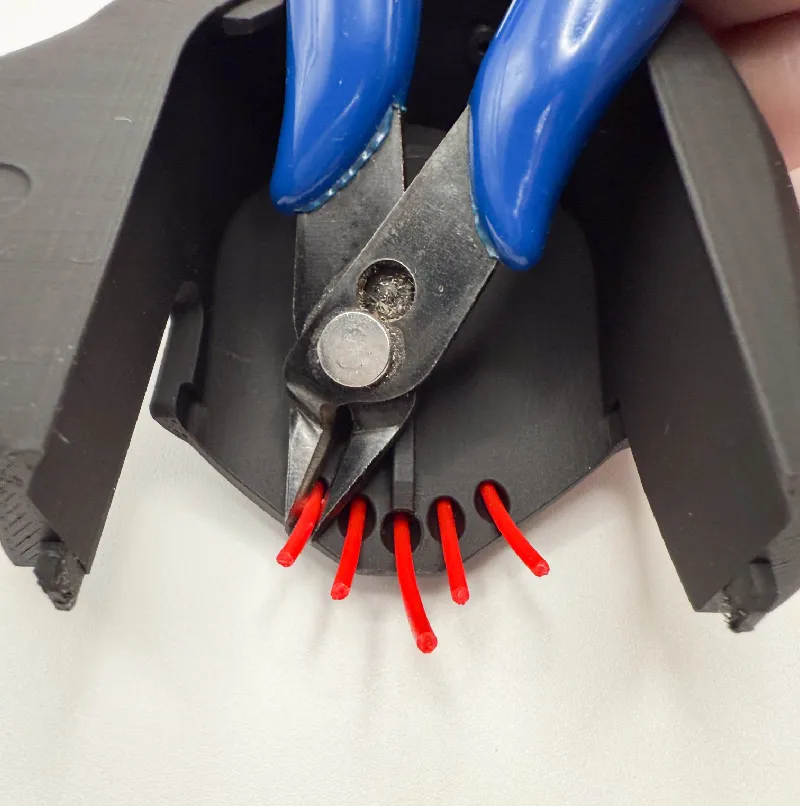

Next, cut off the excess filament using flush cutters.

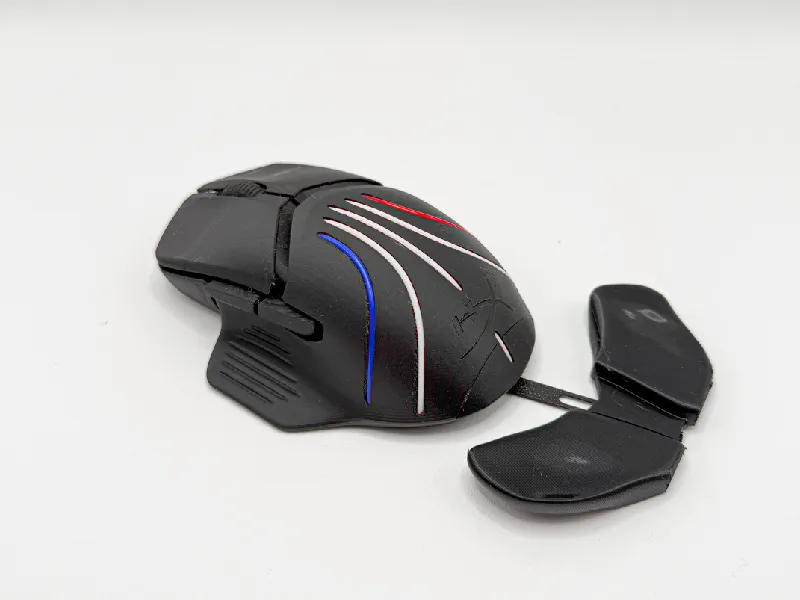

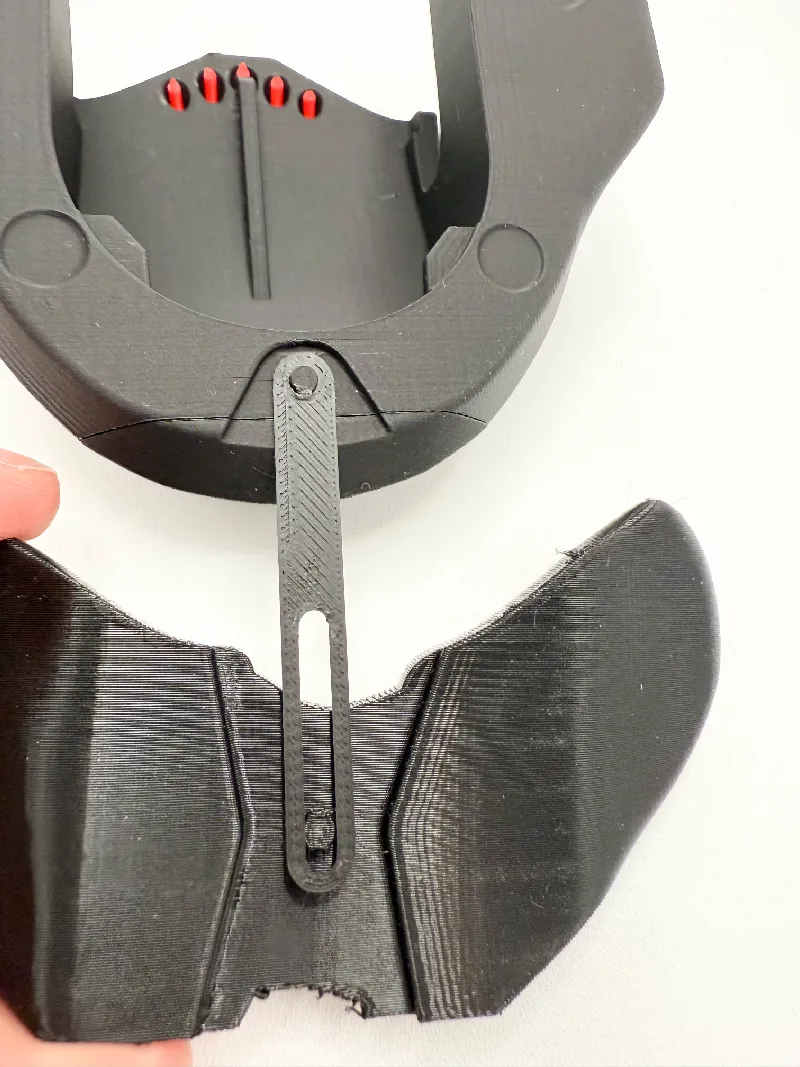

Flip the mouse shell over and snap the tab into the two pivots. The small hole aligns with the pivot on the mouse shell. This system allows you to easily move the wrist rest without it detaching from the mouse

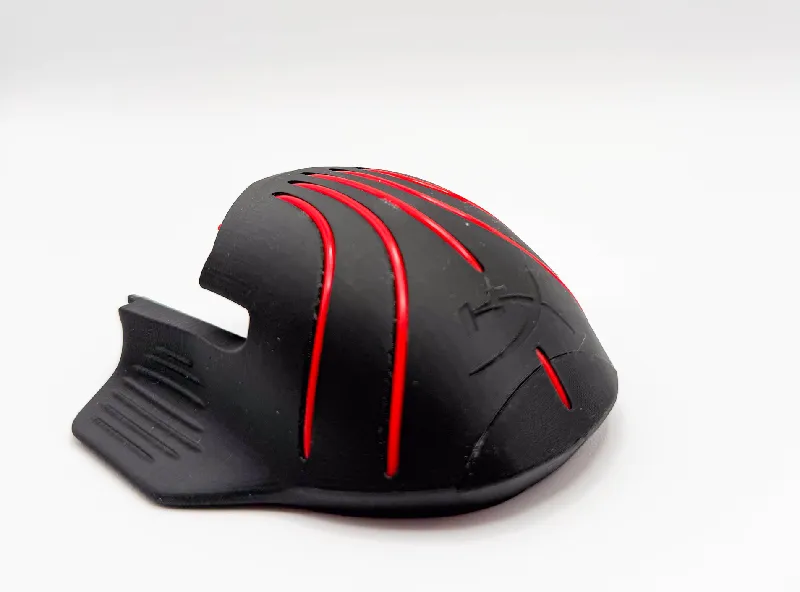

The assembly is complete — you can now enjoy your gaming sessions in comfort !

The design of the model has been reworked to achieve a more ergonomic result and to allow style changes after printing
