Parametric HSW Round can/botte/etc. Holder for Honeycomb Storage Wall (2 x HexPeg) (Fusion 360)

Parametric holder for bottles/cans/WD-40/etc., designed for Honeycomb Storage Wall w/2x HexPeg (HSW) Fusion 360 f3d file
8
15
1
74
updated May 5, 2025

Description

PDF

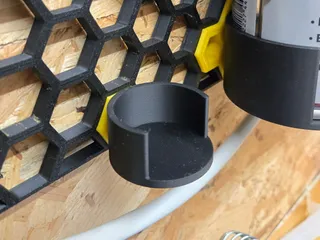

This is a fully parametric Fusion 360 model of a round-object holder designed specifically for Honeycomb Storage Wall (HSW) systems. Whether you're storing:

  • WD-40 cans
  • IPA or cleaning solution bottles
  • Spray paint
  • Fly spray can / polish can / etc.

this holder gives you full flexibility by allowing you to enter the exact diameter of your item and generate a perfectly fitted, snug container, the parametric model also calculates for clearance around your object. So, simply update the “objectDia” parameter with your objects diameter and it will fit snug, export and then slice/print.

---

Note - This model has 2 hex-pegs, one on top of the other - that then plug into the HSW wall inserts - This model is probably more for bigger/heavier objects.

  • 2 x hex-pegs for extra strength/load.
  • Height 36.8mm - Allows for flush print on top and bottom pegs for HSW inserts
  • Recommend for 40mm diameter objects you want to hold in hsw-holder

-------------------------------------------------------------------

For Smaller or lighter objects, or when you only need 1 hex peg supporting the object, you can use this Parametric Model which is only for 1 peg and more flexibility on lip/ring height:
                    Parametric HSW Round can/botte/etc. Holder for Honeycomb Storage Wall (1 HexPeg) (Fusion 360) by Mingled | Download free STL model | Printables.com
-------------------------------------------------------------------

How to Use the Parametric Model

Measure the diameter (in mm) of the round object you want to hold.

Open the included file:
HSW_RoundHolder_Parametric.f3d in Fusion 360.

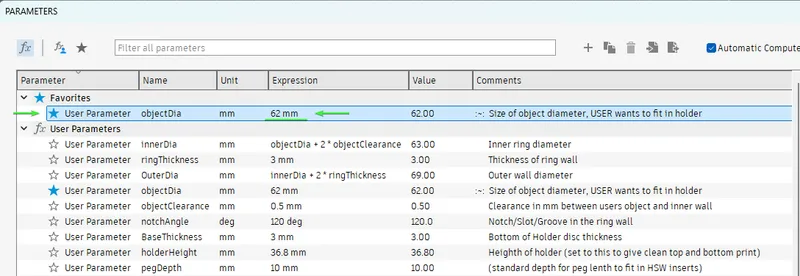

Go to the top toolbar and choose:
Modify > Change Parameters

Look for the parameter called:
objectDia

Change the objectDia value to match your measured object diameter (e.g. 65mm).

The holder will automatically resize:

  • Inner cavity adjusts to your object
  • Slot width and wall size stay proportional
  • Mounting pegs stay perfectly aligned

Export the updated model as an .stl or .3mf file

Slice and print using your preferred slicer and printer

Print Settings 0.20mm Layer Height:


StrengthWalls:Wall loops3-4
StrengthTop/bottom shells:Bottom shell layer3
StrengthSparse infillSparse infill density15
StrengthSparse infillSpare infill patternCross Hatch
SupportSupport: Enable SupportYes
SupportSupport: Typetree(auto)
SupportSupport: StyleTree Organic

Peg & Wall Compatibility

This model includes two hexagon mounting pegs to attach to the HSW

It is designed to fit HSW systems using hexagonal peg inserts

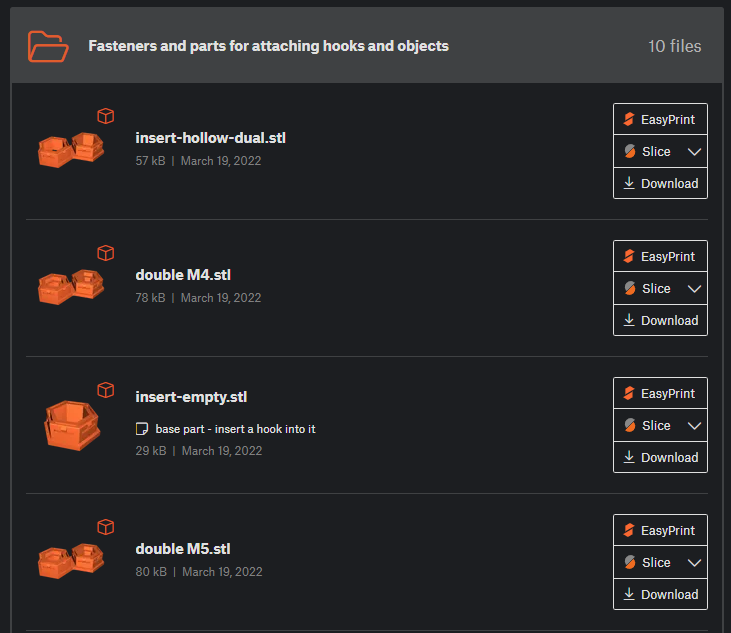

Therefore, you will need compatible Honeycomb peg inserts (not included in this file, but available in many HSW peg libraries i.e. from RostaP's model inventory: Honeycomb storage wall by RostaP | Download free STL model | Printables.com)

Included Files

HSW_RoundHolder_Parametric.f3d (Fusion 360 file with editable parameters)

STL variants for common sizes Ive included:

40mm internal diameter-HSW-Parametric-holder.stl

50mm internal diameter-HSW-Parametric-holder.stl

60mm internal diameter-HSW-Parametric-holder.stl

70mm internal diameter-HSW-Parametric-holder.stl

These STL versions are ready to slice and print for some standard bottle and spray can sizes, no editing needed.

Ideal For:

Makers building up their Honeycomb wall system

Tidy storage of cans, bottles, and cleaners
