Airsoft Target - BB Target Trap - Shooting Target

Modular airsoft target trap designed for use with plastic BB projectiles. Its construction allows for freestanding placement, wall-mounted installation or attachment to any surface.

Optimal material for printing is PETG-G. To ensure structural integrity, it is recommended to disable the crossing of perimeters within your slicer settings and to increase the height of both the top and bottom layers.


Installation options

Wall-mount

• Print Body and Collector.
• Use two holes on the top of the Body and attach Target to the wall with 2x screws. Hole diameter is 6 mm.

Wall-hang

• Print Body and Collector.
• Hand on a central hang hole. Screw head max diameter is 10 mm.

Desk mount or standalone

• Print Body, Collector and Stand.
• Attach the Body to the Stand with 4x M4 screws and safe with 4x 4M hex nylon nuts.
• Attach teh Stand to the desk or any other flat surface and safe it up to 4x screws.

Standalone

• Print Body, Collector and Stand.
• Attach Body to the Stand with 4x M4 screws and safe with 4x 4M hex nylon nuts.

Landing Zone Variants

Bullet Deflector

Print a Deflector and Front Panel. Insert Dafelector into Body, cover the setup with Front Panel and secure it with 4 M4x20 (up to M4x45) screws.

Carboard or Fabric

Cut multiple cardboard pieces to 170mm x 165mm, insert them into the Body cover the setup with Front Panel and secure it with 4 M4x20 (up to M4x45) screws.

As an alternative to cardboard, some layers may be replaces with hard fabric or other meterial absorbing bullet energy.

Front Panel Variants

Simple Panel

Simple panel only secures Deflector or Carboard inserts into place. You can attach your custom 200mm x 200mm a paper target onto Front Panel with a ducktape.

Paper Insert Large - Custom Targets

Panel secures Deflector or Carboard inserts into place and you can insert your custom 180mm x 180mm a paper target into Front Panel.

Standard International Pistol Targets 20 x 20

Planned upgrade


Printing tips

Bullet Deflector

• Bottom Layer 2x
• Top Layer 5x
• Infill 15%
• Avoid Crossing Perimeters

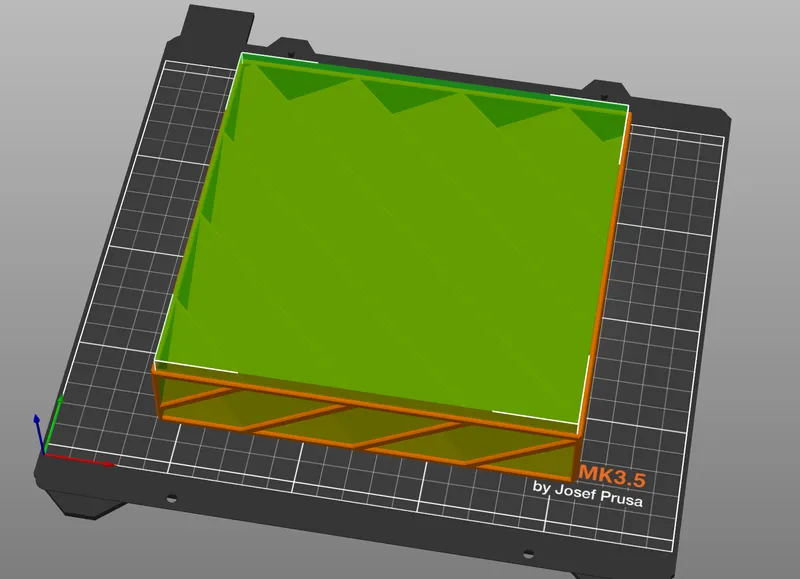

• Add Cube Modifier with 80% infill (follow image below)
• Supports Everywhere
• Supports Overhang Angle 30%

Bullet Collector

• Bottom Layer 3x
• Top Layer 4x
• Infill 10%
• Avoid Crossing Perimeters
• No Supports

Target Body

• Bottom Layer 3x
• Top Layer 5x
• Infill 15%
• Avoid Crossing Perimeters
• Supports Everywhere
• Do Not Create Supports Under Bridges

Traget Stand

• Bottom Layer 3x
• Top Layer 4x
• Infill 15%
• Avoid Crossing Perimeters
• Supports Everywhere
• Supports Overhang Angle 30%

Front Panels

• Bottom Layer 3x
• Top Layer 4x
• Infill 10%
• Avoid Crossing Perimeters
• No Supports

Disclamer

Model is fully functional but still under development, not all planned features are implemented. If you require some improvement, let me know, we will figure it out.
