V5 Toolhead for SV08 & Voron – Orbiter V2/2.5 Upgrade

🔧 Key Features:

• Improved filament cutter for cleaner cuts and reliable MMU support
• Compatible with Sovol hotend and MicroSwiss
• Supports BTT EBB 36, BTT EBB 42 and Sovol’s toolboard
• Dual nozzle-mounted LEDs for enhanced visibility
• Reliable BTT Eddy probe for accurate Z-offset
• Uses 12× 6×3mm N53 magnets for secure attachment
• 5020 blower for part cooling
• New 3010 axial fan added for toolboard cooling

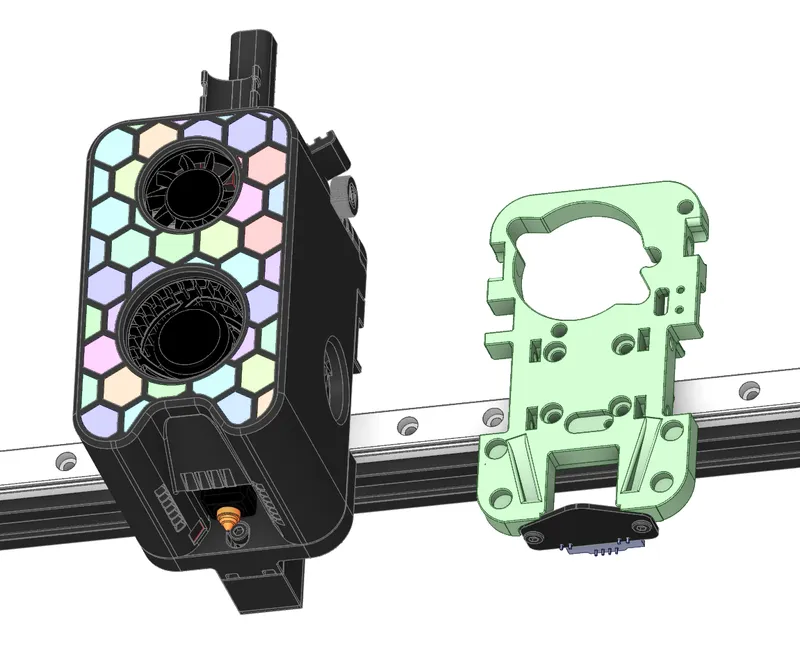

• Lighter, modular, MMU-ready design

🖨 Print Settings:

• Top Layers: 5
• Bottom Layers: 5
• Perimeters: 4
• Infill: 20% Gyroid

Print in ABS/ASA recommended — we used Polymaker ASA

Filament cutter lever should be printed with 5 perimeters/walls for strength

🧩 Required Components:

🔌 Electronics:

• BTT EBB36 or EBB42 Board: http://shrsl.com/4t5zy (affiliate link)
• Orbiter V2 Extruder: https://s.click.aliexpress.com/e/_omLJ4d9
• Orbiter V2.5 Extruder: https://s.click.aliexpress.com/e/_okJJsUb
• Orbiter V2.5 KIT: https://s.click.aliexpress.com/e/_onDlXsr

🧱 Hardware:

• 20× M3 × 4.5OD × 4mm Heat Set Inserts: https://s.click.aliexpress.com/e/_DkePBDt
• 4× M3 × 4.5OD × 3mm Heat Set Inserts: https://s.click.aliexpress.com/e/_DkePBDt
• Nuts and Bolts Kit: https://s.click.aliexpress.com/e/_DBdNTVD
• Screws:
• 1× M2.5 × 40mm SHCS
• 4× M3 × 8mm SHCS
• 5× M3 Nuts
• 4× M3 × 12mm SHCS
• 2× M2 × 12mm Self-tapping
• 2× M2.5 × 14mm
• 2× M3 × 12mm
• 2× M3 × 8mm Button Head
• 2× M3 × 4mm Flat Head
• 2× M3 × 6mm Flat Head
• 2× M3 × 10mm SHCS
• 2× M3 × 16mm SHCS

Other Parts:

• 12× 6×3mm N53 Magnets: https://s.click.aliexpress.com/e/_olYORyB
• KB4-F Olfa Blade: https://s.click.aliexpress.com/e/_omNCwdX
• 5mm OD × 10mm Spring: https://s.click.aliexpress.com/e/_okuOq8x
• 5mm Ball: https://s.click.aliexpress.com/e/_oDk0IeP
• Microswitch for X Endstop: https://s.click.aliexpress.com/e/_olihF0X
• Microswitch for Filament Sensor: https://s.click.aliexpress.com/e/_olihF0X
• 3010 Axial Fan (12k RPM): https://s.click.aliexpress.com/e/_Dd0TMzH
• 4mm OD / 3mm ID PTFE Tube: https://s.click.aliexpress.com/e/_DEhXLcf
• 2× Round PCB LEDs: https://s.click.aliexpress.com/e/_DCkqzJz
• Binky Encoder PCB Sensor Probe PCB TCRT5000 https://s.click.aliexpress.com/e/_oo624oW

🔌 Cabling:

• AWG 26/24 Wire: https://s.click.aliexpress.com/e/_DnBlVdt

🛠 Tools Needed:

Soldering iron (for LED and endstop wiring)

• Crimping Tool (for connectors to toolboard): https://s.click.aliexpress.com/e/_DEXNXkR
• Grease for extruder planetary gears: https://s.click.aliexpress.com/e/_onEJQzd

We couldn’t have achieved this without the continuous support of our users, testers, and the broader maker community. Thank you for believing in our vision and pushing us to innovate further.

This version is also compatible with the 3D printed Gantry https://www.printables.com/model/929513-sovol-sv08-xy-3d-printed-gantry

If you want to support our work consider becoming a member or donate via paypal

Love 3D printing? Explore Polymaker's incredible range of filaments and materials! Use our affiliate link to shop: https://us.polymaker.com?aff=806  . You'll unlock access to all available coupon codes, pay nothing extra, and help us create more content and make upgrades. Thanks for your support!

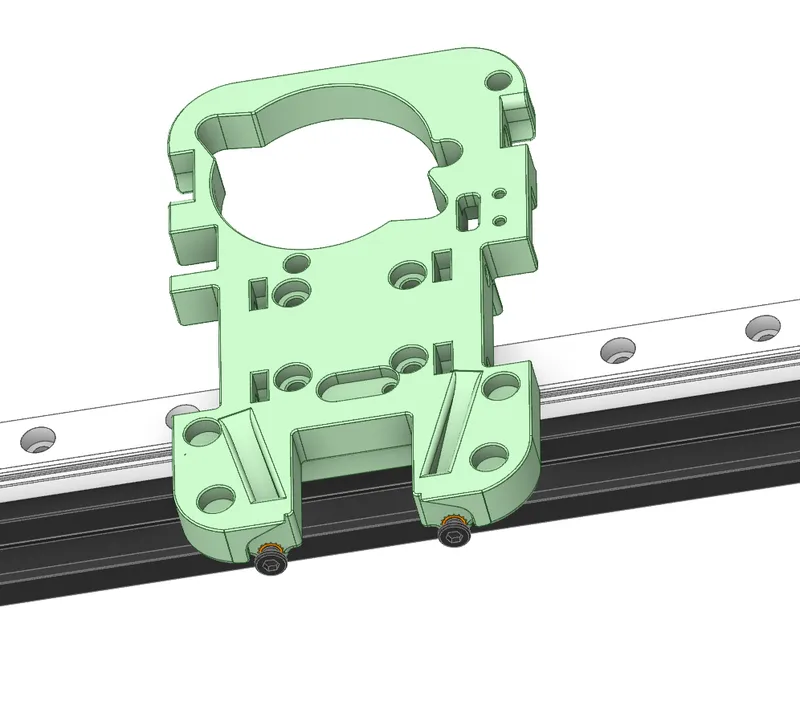

We have added an X Carriage for Carto/Beacon Probes
