Sovol Zero Toolhead X-Carriage Adapter for Sovol SV08
Description

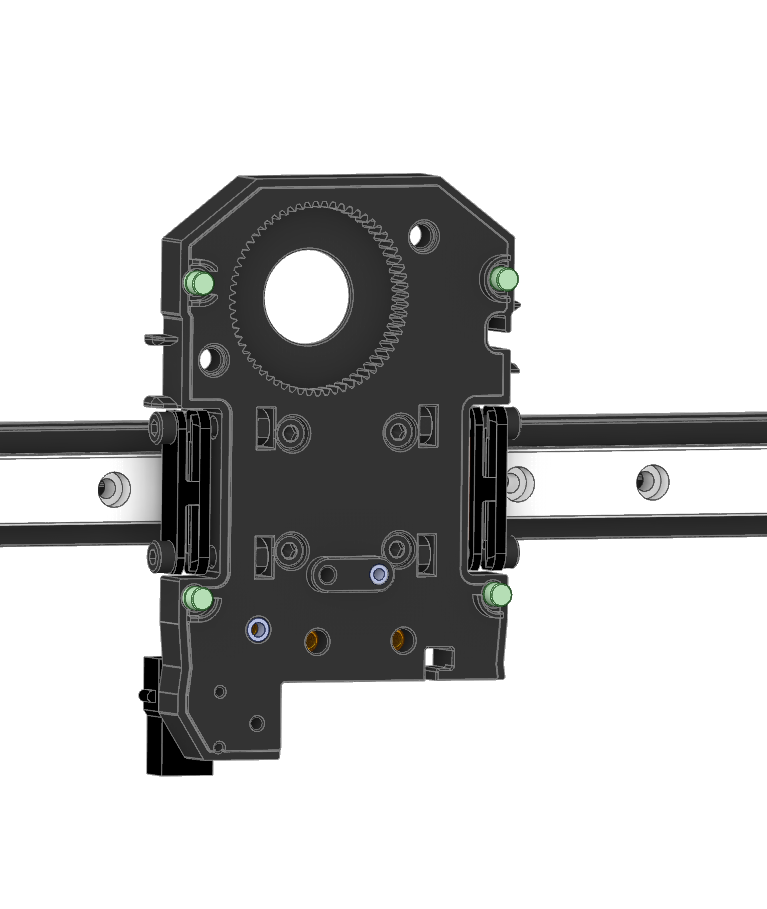

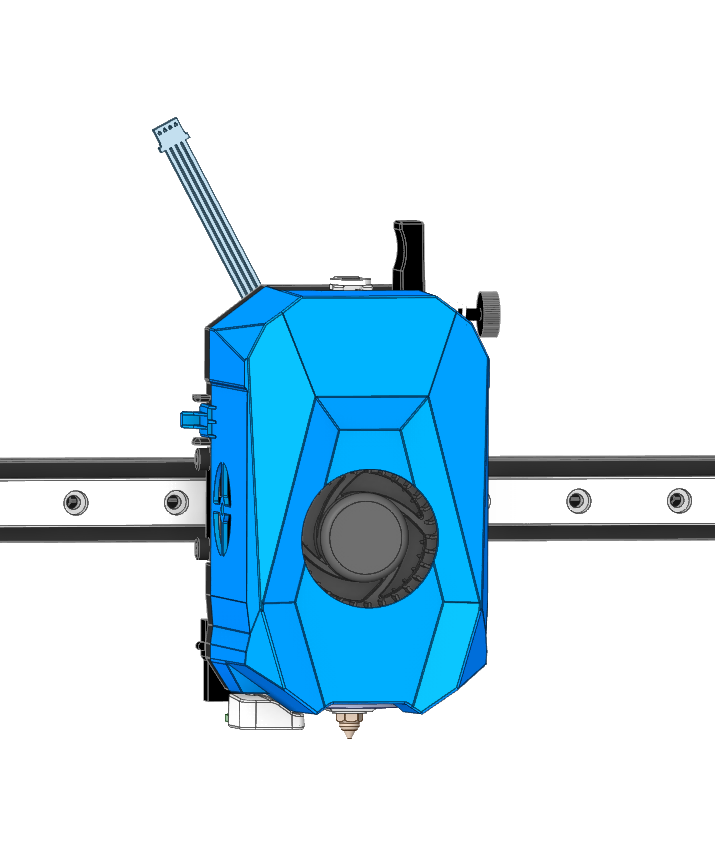

PDF| This custom-designed part replaces the original Sovol SV08 X carriage and lets you mount the Sovol SV Zero toolhead directly. For less than $70, you get a full-featured upgrade: |
Eddy Current Probe for auto bed leveling
High-flow 50mm³/s hotend
Improved toolboard
Powerful part cooling fan ducts
And also an X endstop :D
All the features the SV08 lacks—now added affordably, without mods to the frame.
| 🔗 Files are free to download. Use our affiliate link http://shrsl.com/4w0r5 to buy the toolhead. It costs you nothing extra and helps support development. |
|
 |
📦 Bill of Materials (BOM):
Sovol Zero toolhead (includes hotend, fan, probe, toolboard)
Adapter (3D printed, see print settings below)
Screws (reuse from SV08 or match thread to Zero toolhead)
To secure the belt clips to the new X carriage you will need
4x M3x12mm
4x M3 Nuts
1x M2.5 Nut
1x M2.5x40
8x 4x3 Magnets
1x M3
Heat set inserts
4x M3x4.5 OD x 4mm
Zip ties or cable clips for clean wiring (optional)
🖨 Print Settings (for adapter):
Material: ABS
Walls: 4
Top Layers: 5
Bottom Layers: 5
Infill: 30–40% Gyroid recommended for strength

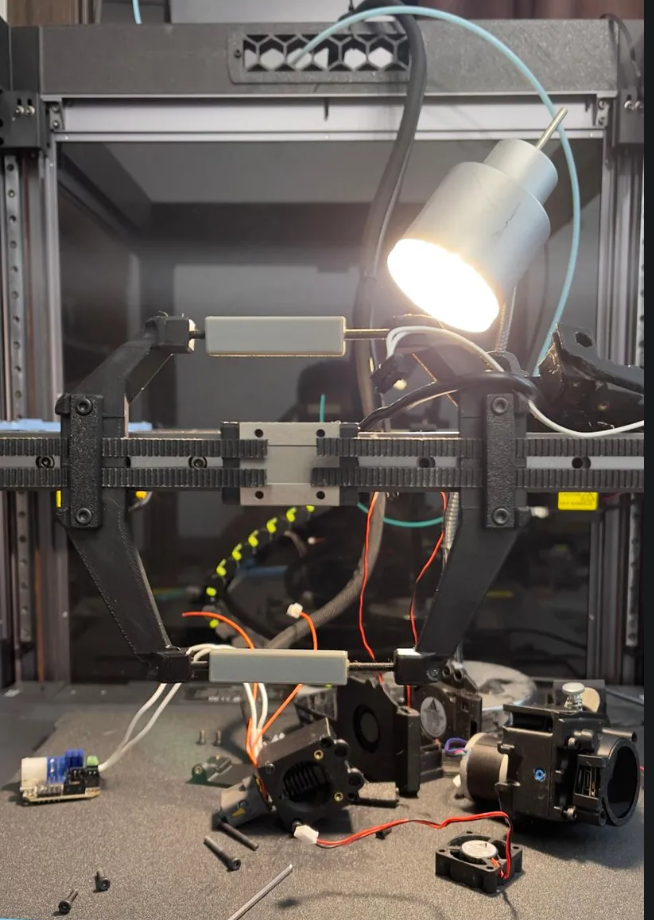

For an easier mounting use the Belt helper!
https://www.printables.com/model/1027579-sovol-sv08-belt-helper-for-x-carriage
