BetaFPV C03 camera mount/canopy [Improved Complete Set]
Chasing that 15g mark without sacrificing too much protection
23
296
1
1084
updated
November 8, 2025
Description

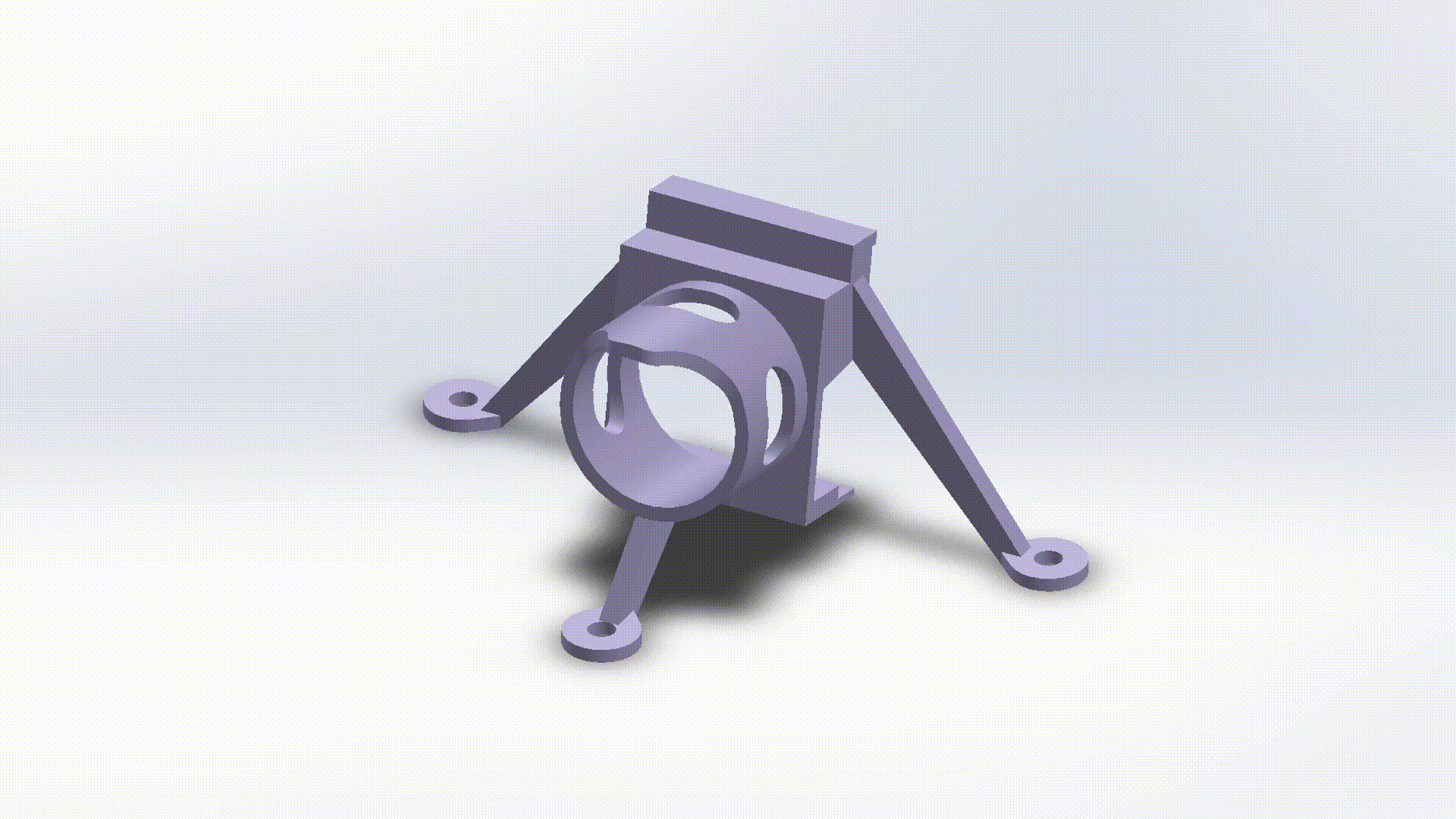

PDFBetaFPV C03 camera mount
The design combines the idea of brighfive's Bribrain LowRider version requested by the legendary TDog.
Features:
- Available Angles: 10°-60° @ 1° interval apart
- Weight: Approx. 0.573g
- Mounting Pattern: 25.5x25.5mm AIO/Whoop mount
- No 42° angle. Why? Because we have 42.069° ;)
- Camera cutout reduces/eliminates vignetting
Cover photos by Chard7 FPV
Big thanks to my local group for the research and testing ;)
Print Settings:
- Printer: Bambu Lab P1S
- Filament material: TPU
- Layer height: Default or finer
- Wall Ordering: Outside to Inside
- Supports: Yes
- Infill: 100%
- Infill Pattern: N/A
- Nozzle Temp: 230°C
- Bed Temp: 45-60°C
- Print Speed: 500mm/s
- Rafts: Doesn't Matter
- Notes:
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
- Weight-saving modification
- Lens protection bump
- Strengthened in key stress areas
