Plug for monitor arm (Monoprice, AlzaErgo, ...)
Description
PDFThis print is a part of the whole VESA mounting solution.
Prepare:
| Item | Count | File | Note |
|---|---|---|---|
| VESA mounting plate | 1 | - | I have used 2mm steel. PETG plastic is possible (see example my Ikea print) |
| Plug | 1 | mount.step | printing instructions below |
| Spacer 6mm | 4 | spacer.3mf | Binding VESA plate and monitor (printing instructions below) |
| DIN125 M4 washer | 4 | - | Binding VESA plate and monitor |
| DIN7985 M4x16 A2 | 4 | - | Binding VESA plate and monitor |
| DIN7991 M5x16 (Grade 10.9) bolt | 2 | - | Used to bind plug and the VESA plate (original Grade is 8.8, do not use A2) |
| DIN985 M5 A4 safety nut | 2 | - | Used to bind plug and the VESA plate |
Printing instructions
mount.step also referred to as a “plug”
This piece is carrying the whole weight off the monitor. I suggest you use the most structurally sound material on hand. I have used Prusament PC Blend.
- Nozzle 0.4mm
- Layer 0.15mm
- Perimeters 15
- Infill 100%
- Supports: YES
Spacer 6mm

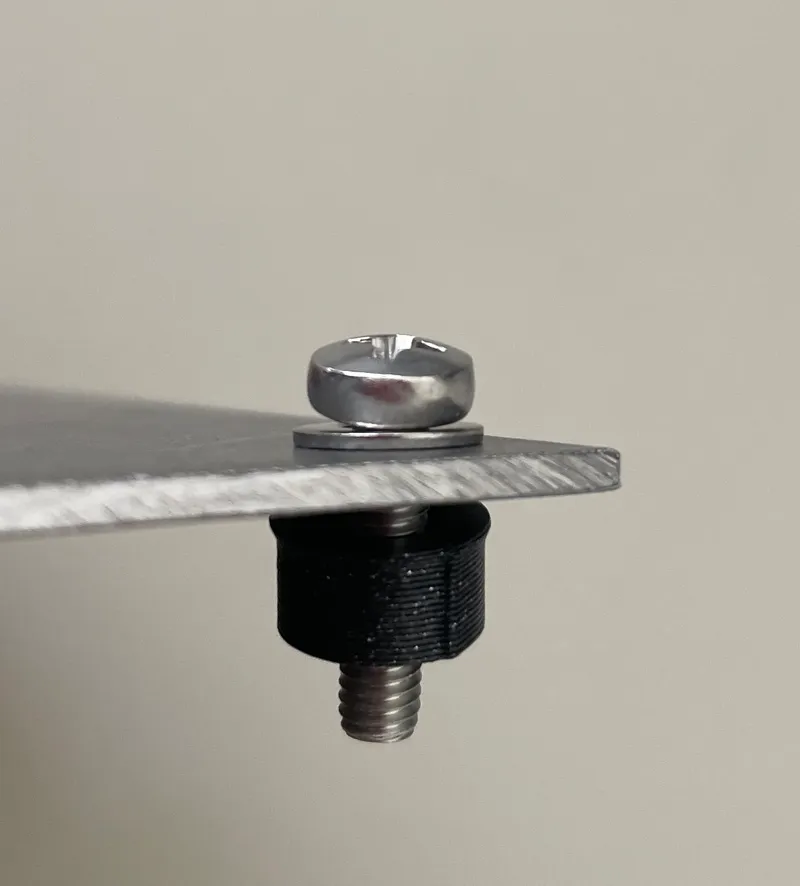

This piece is used to move the VESA mounting plate away from the monitor and create space for the nuts and bolts binding the VESA mounting plate with the plug.
There are no special requirements for this part, except for the height of the spacer to be around 6mm to prevent damage to the monitor. Print from non-flexible material.
Assembly instructions
1/ Assemble VESA mounting plate with the plug

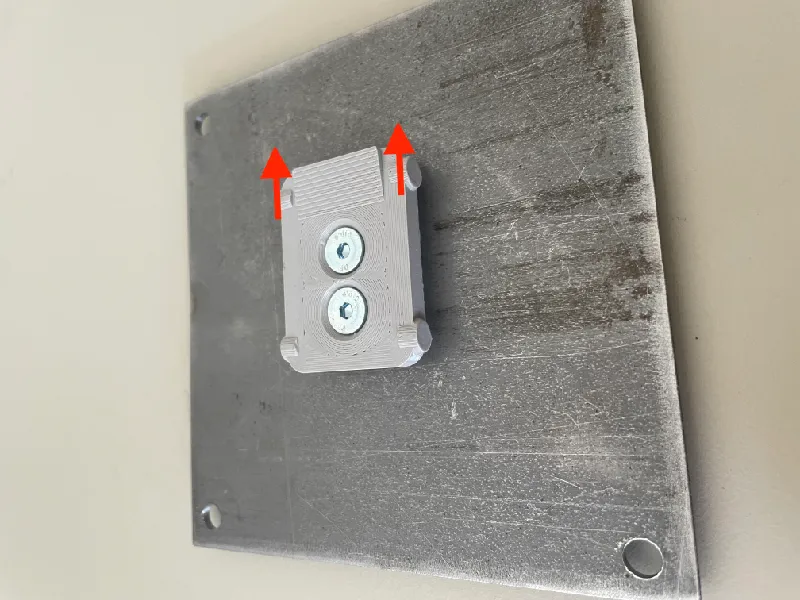

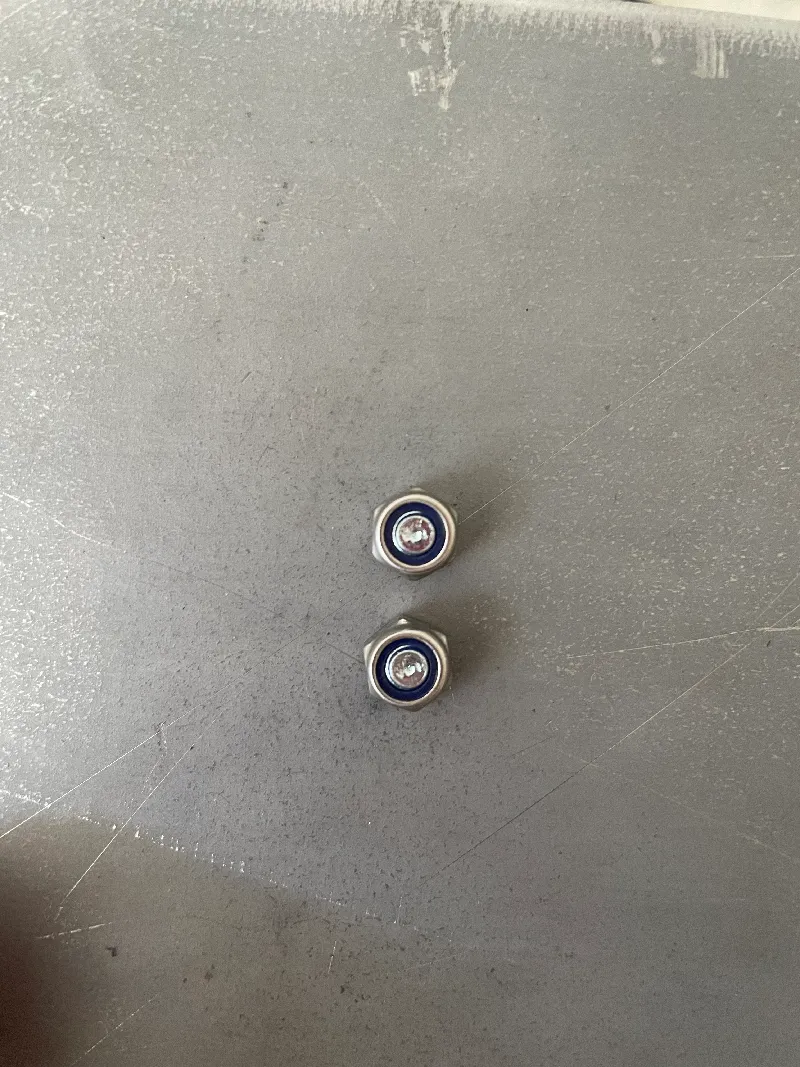

Bind together the VESA mounting plate and the plug. Use bolts and safety nuts according to the table above. The latch requires the orientation suggested by arrows.
2/ Place spacers on the monitor

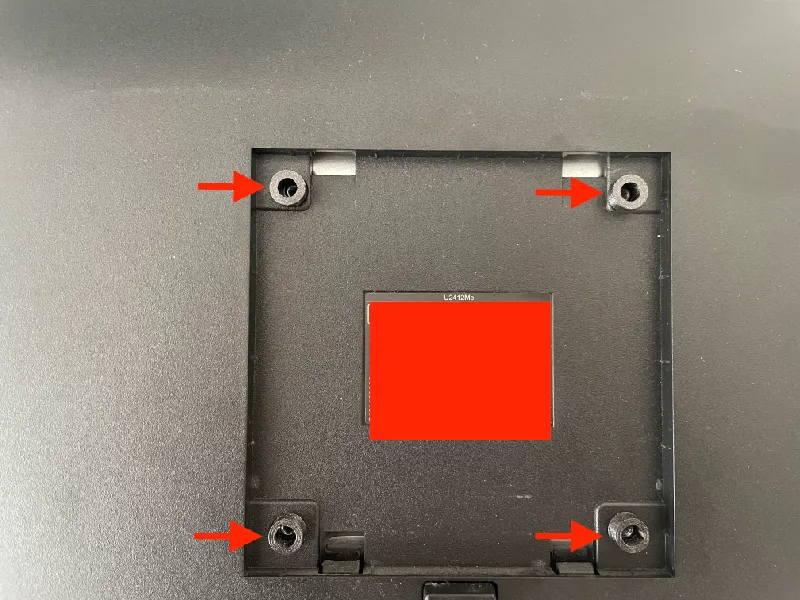

Place spacers over the holes for the VESA mounting spots.
3/ Place VESA mounting plate over the mounting spots
4/ Secure the VESA mounting plate to the monitor

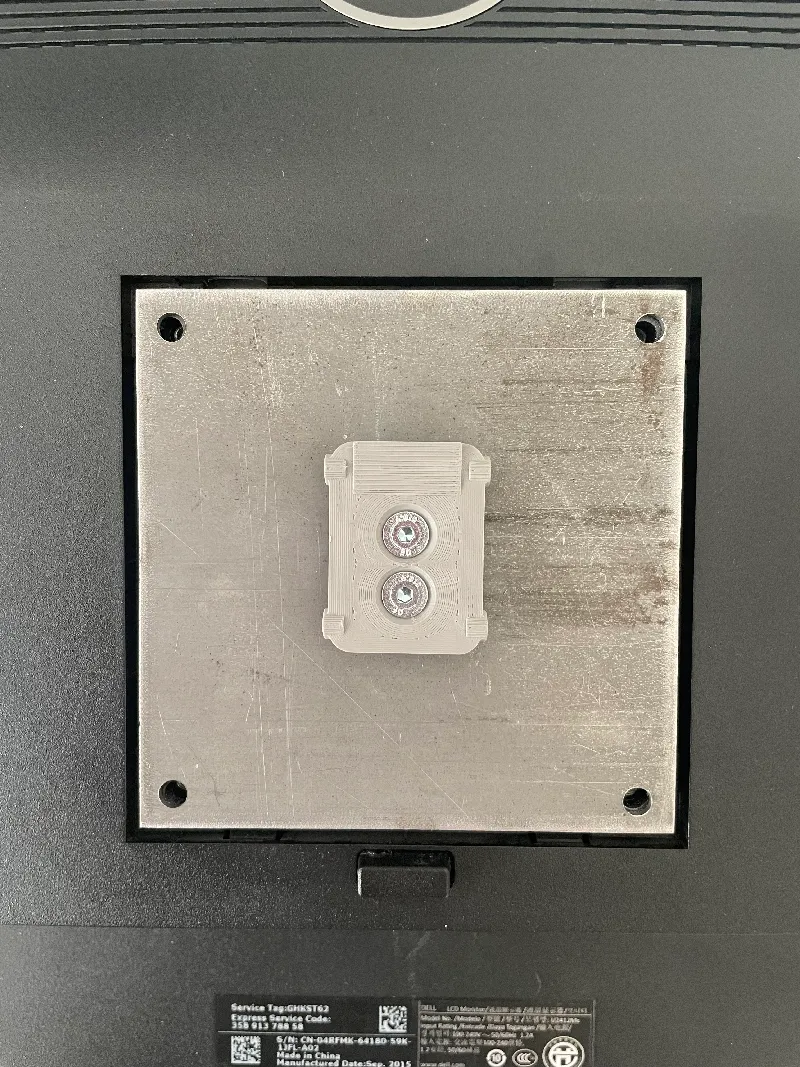

Use nuts and washers according to the table above. The assembly should look like this:
