Nikolica

@Nikolica

M3 Screws (Maybe you will need to adjust scale, depends on printer accuracy)

701

4904

10 k

updated September 29, 2023

Nice

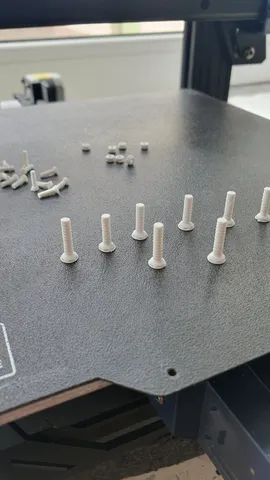

Thanks! Used white PLA and 100% infill, printed with a brim.

A 4

AGG

@AGG3047_2080188

Can you please provide CAD file (STEP or Fusion 360) for the M3 nut?

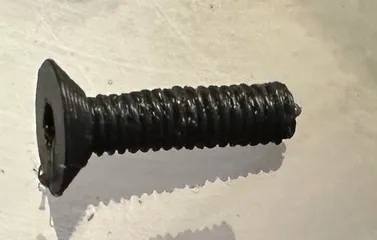

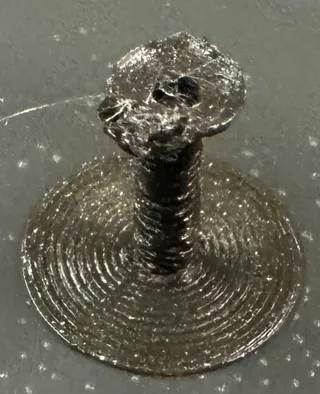

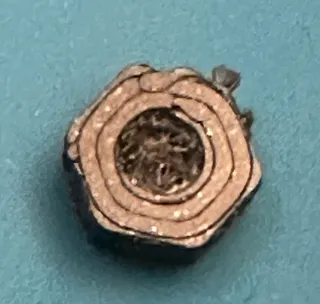

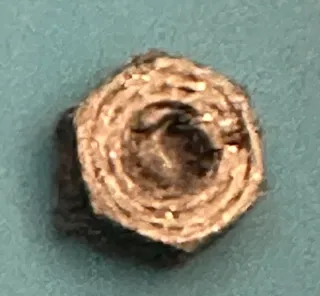

Couldn't get the nut to work at all - will try with other filament and play with print settings. The screw works fine (PLA, MK4, 0.05 ULTRADETAIL) with a metal nut. Some issues with the hole as there is too much material in there for the Allenkey to fit - tried printing bottom-up with brim - but no luck either. A triangle bit in mi micro driver works just fine. Last picture is inserted screw (with metal nut on the other side)

Works well after some support from @Nikolica - see last picture. Don't forget to 'polish' the thread with a metal nut ! (edited)

Nikolica

@Nikolica

@tinkerNinja try normal 0.2mm layer height, because 0.05mm seems too low

tinkerNinja

@tinkerNinja

@Nikolica Thanks for the hint - at 0.2 I get a decent nut and the head looks good too so I did 0.2 for the head and nut and then going to 0.07 for the thread - looks nice and works well - thanks for the support !!!

Am going to change to 5* ;)

Den

@Den_484447

Dude you're a life saver. Ok maybe not a life saver but you've done humanity a great service lol

Engineering Projects

@EngineeringP_1109775

done!

uday9k

@uday9k_157003

The nut doesn't fit at all, need to try multiple scales. Issues with the threads within nut makes it useless even after proper scalling.
Also facing similar issues with the bolt.

Could you share the model files?
