M2 Conical Screws (Hex head) and nut 2mm-27mm
M2 Screws (Maybe you will need to adjust scale, depends on printer accuracy)
271
5250
3
10 k
updated
September 29, 2023
Makes
Comments

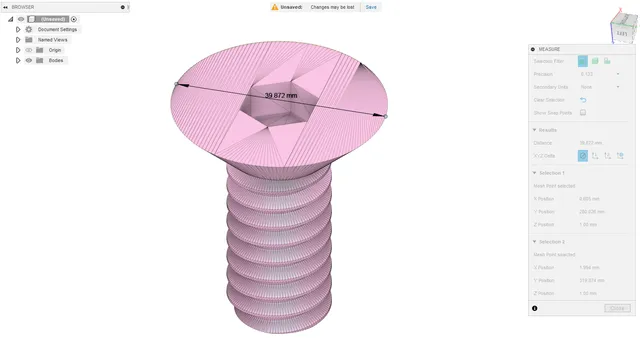

Thanks for the designs! I'm having a problem though - when I open in Fusion 360 (or even if I send to Cura), the object comes out massive, not the M2x3mm size I'm expecting. See attached picture showing ~40mm across the head.
What am I doing wrong?
@xor_857786 Nevermind - figured it out but keeping the comment up for any future noobs.
If you "open" the file in Fusion 360, it assumes the wrong units. Instead of opening, make a new file then go to "Insert" ->"Insert Mesh", and select "mm" as the units.
@xor_857786 if you wanted to resize the screws you could do that directly in cura, no need for using fusion for doing that (just use "scale") (edited)

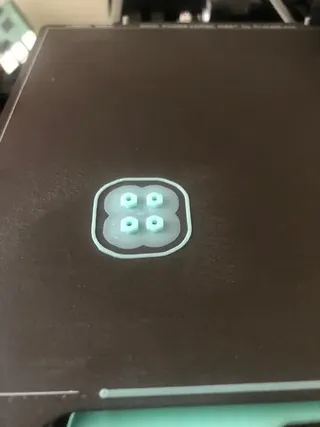

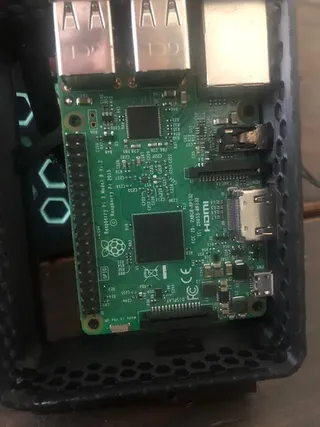

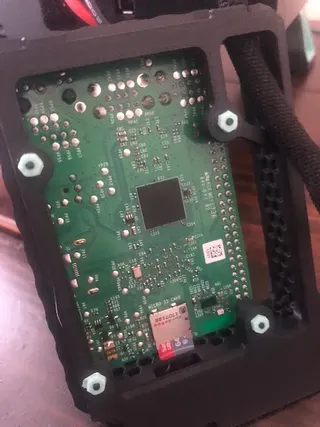

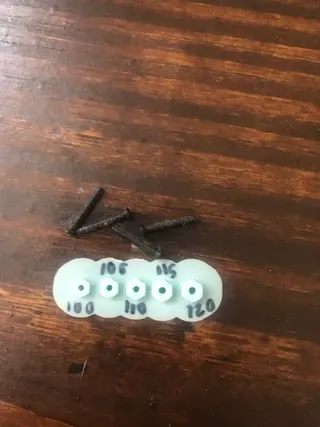

Printed these to attach my pi 3B to the z box (files: https://www.prusaprinters.org/prints/68894-raspberry-pi-z-box-integrated-3b3b-case-for-prusa-) make without risk of the hardware falling into the electronics box and shorting anything. Had to scale the nuts up to 115% and then everything fit well. Helpful models, thanks!
Awesome perfect for when I lose screws
