scratchboard_treat_dispenser

My cat refuses to use the scratch board I bought for her, so I made this device to motivate her to use it instead of my sofa… we'll see how that works…

Attached to the scratch board is an MPU6050 accelerometer that monitors interaction with the board. If the cat uses the board, the servo is triggered to dispense a treat.

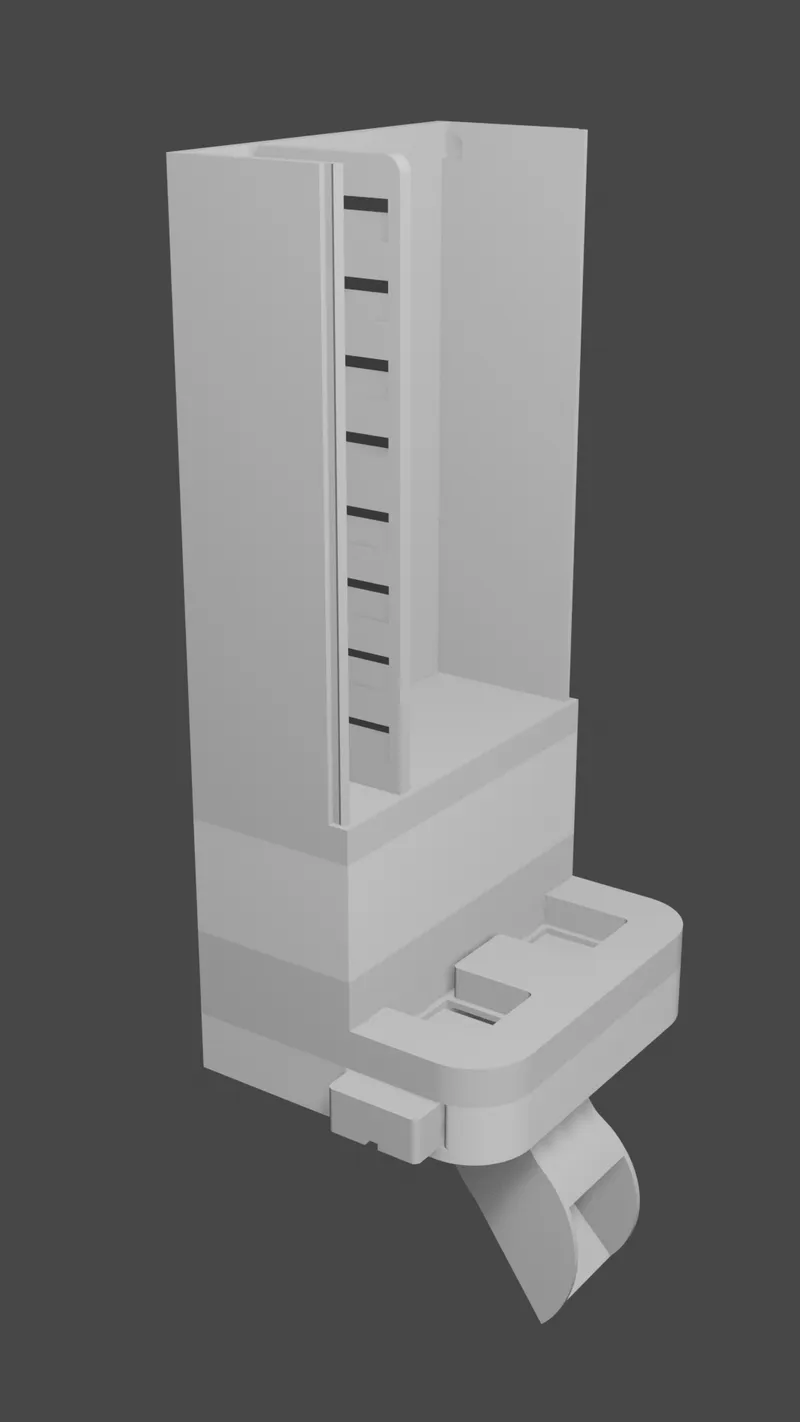

Here is a WIP preview of the device. The electronics are not integrated yet.

Parts List

• Arduino Nano (I used a Nano Every but any other variation with the same size should work - other third-party alternatives may even be smaller, those should work fine too)
• MPU6050 inertial measurement unit (IMU).
• HW-085 5V step-up converter to boost the battery voltage to 5V for powering the arduino and the servo (others will work as well, this is just what I had)
• Li-Ion battery (at most 40mm x 75mm x 22mm). I used an 18650 in a battery holder. The battery compartment is large enough to take a battery holder for two 18650 batteries.
• Feetech FS90 Micro Servo
• wires and connectors
• a short piece (6-7mm) of 1,75mm filemant
• All the 3D-printed parts from this listing

Software used

• FreeCAD for the part design
• Arduino IDE for programming and uploading the code to the microcontroller
• Fritzing for the wiring diagram
• Blender & Krita for making the images in this listing
• git/github for code versioning

Assembly Overview

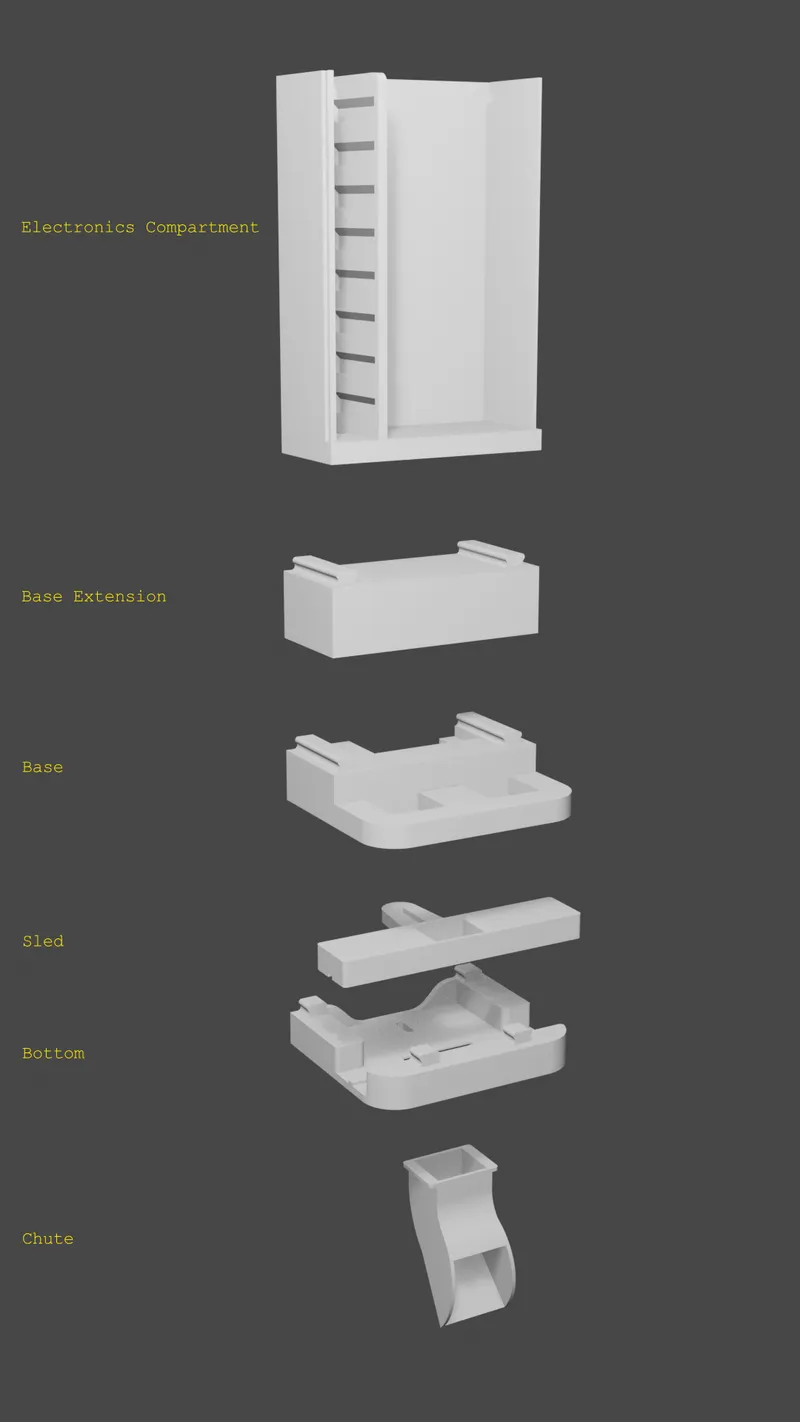

Here you can see the main corpus parts.

• Electronics Compartment
  The left is meant for the Arduino and the voltage regulator. It is a bit tight in there. In retrospect I should have made this a bit larger. The slots at the side are used to attach the Arduino and voltage regulator using the two clips (not shown in image).
  The right, larger compartment was designed to take a 2x18650 battery holder.
• Base & Base Extension
  At the back of this two-part compound is a slot that takes the servo. There is a slot to route the servo cable into the electronics compartment.
  The Base's bottom ledge has two cutouts that the hopper (not shown in image) will slot-in.
• Sled
  The Sled will be moved by the servo. It has three positions: center and one beneath each hopper tube. When it moves towards one of the sides, a treat will fall into the hole in the middle. When the sled moves back to the center, the treat will fall thrugh the Chute. The controller will move the sled alternating between the two tubes to take treats equally from both sides.
  The Sled will be connected to the servo by a short (6-7mm) piece of 1,75mm filament.
• Bottom
  The bottom part of the assembly. Holds the Sled and Chute.
• Chute
  Redirects the treat away from the wall.

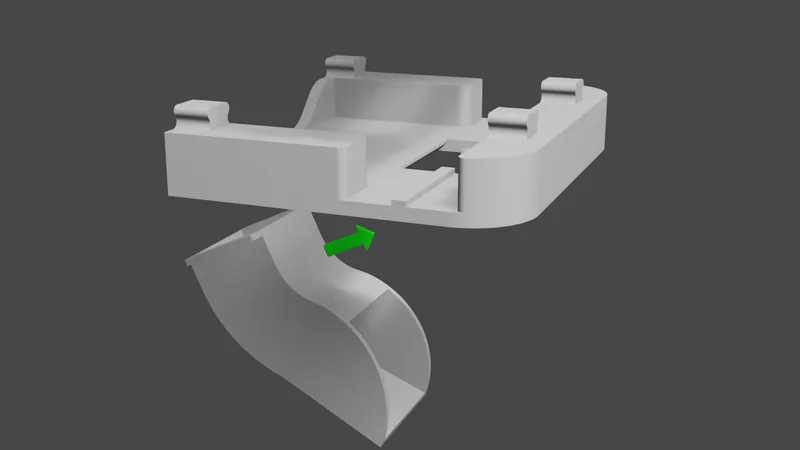

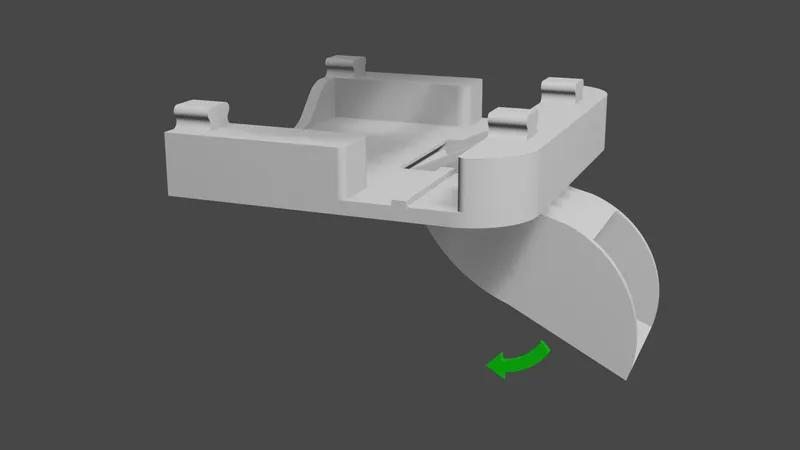

Step 1 - Insert Chute into Bottom

Push the Chute at an angle into the slot in the bottom.

When it is fully inserted, rotate the front part of the chute down to level the chute's upper edge with the bottoms surface.

Make sure the Chute's top edge is below the sled guide's surface by pressing it in firmly. Otherwise the sled may get stuck and the servo won't be able to move it.

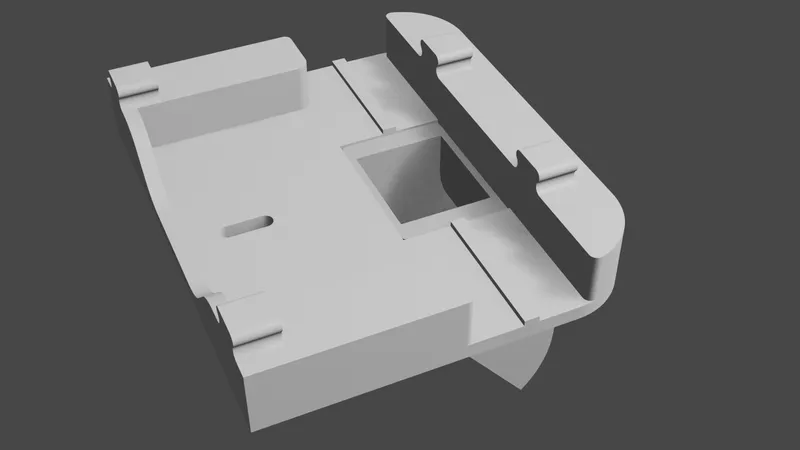

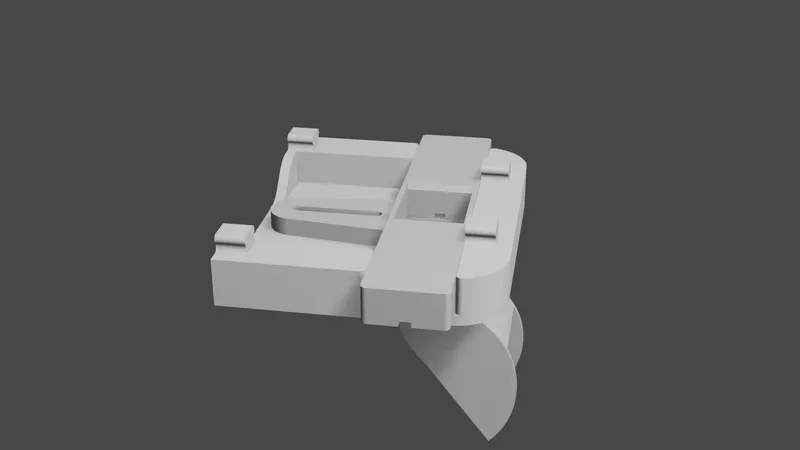

Step 2 - insert Sled

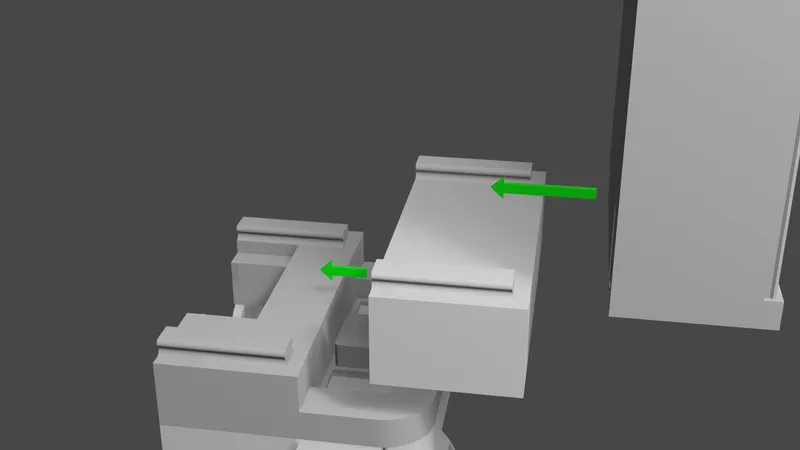

Step 3 - attach Base

Instead of two long rails as the last two parts, this connection only has four short studs. Make sure they are aligned. It may be a bit difficult to get them all in at once. I needed some force (placing the parts upright on the table and gently hammering on them with the heel of my hand).

The Sled should slide smothly in its slot at this point.

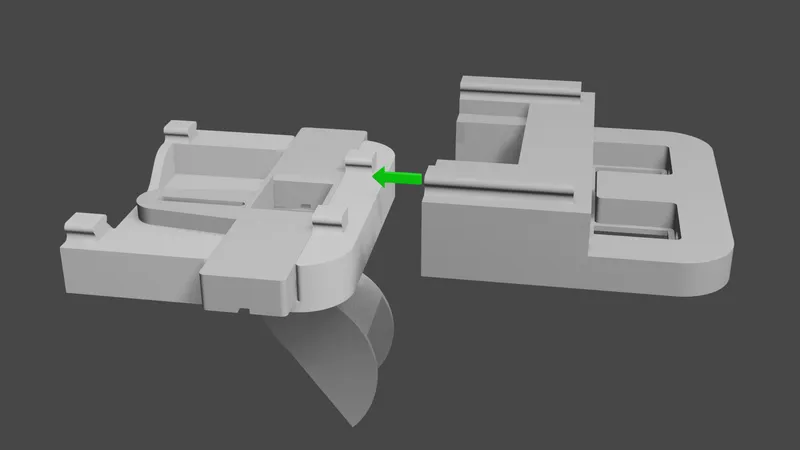

Step 4 - Attach Base Extension and Electronics Compartment

As with the previous step, slotting the pieces together may need some force. But here the alignment is not that much of an issue as only the two slots need to be aligned.

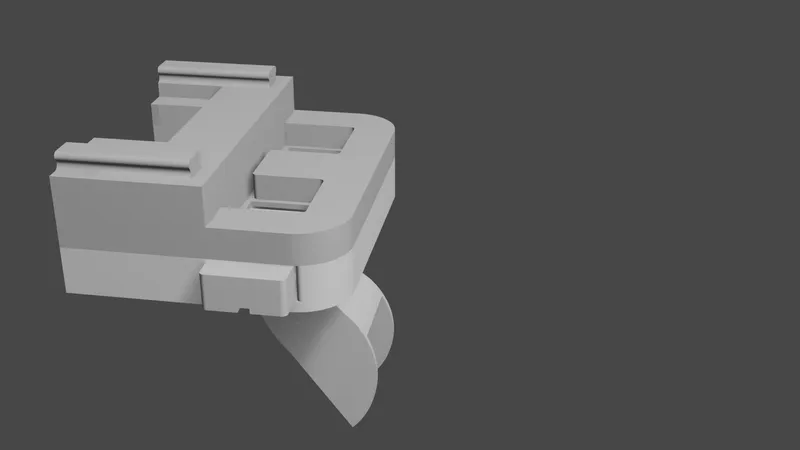

When fully assembled, make sure the back sides of all the individual pieces align.

Four pieces were not described yet:

• Arduino Nano Clip & Voltage Regulator Clip

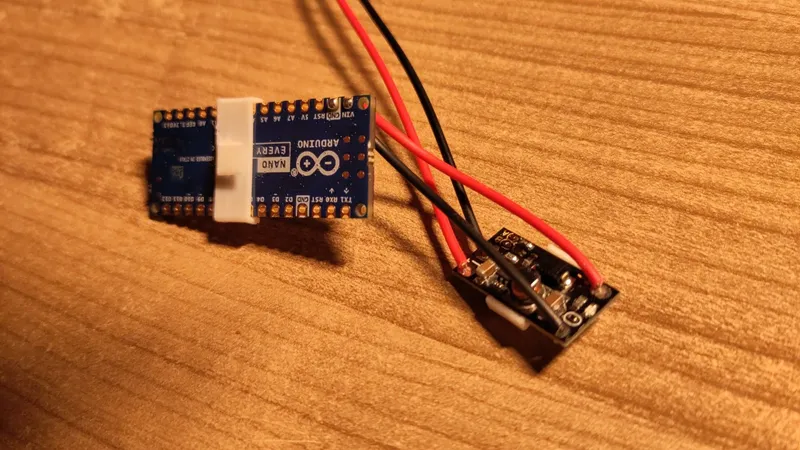

  These parts hold the Arduino and the voltage regulator. Attach the boards first (simply clip them on to the clips), before inserting them into the inner wall of the electronics compartment.

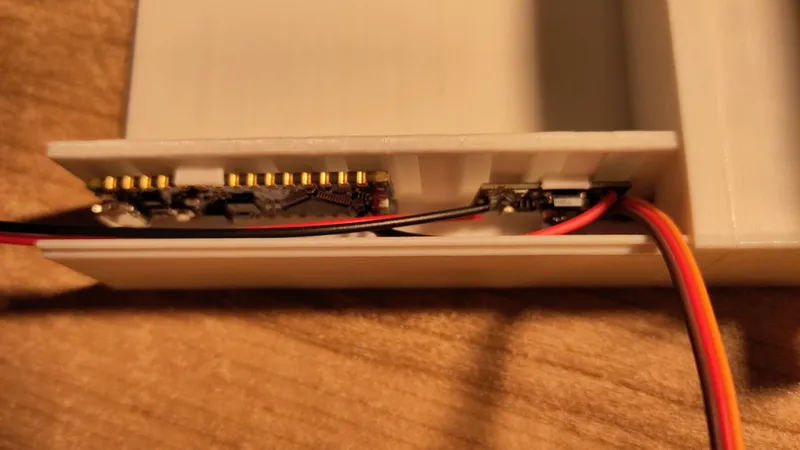

  As space is quite tight in there, I recommend using tweezers to get them in.



• Electronics Cover
  Just a cover that goes on the electronics compartment. Place it when everything is installed inside.
• Hopper
  The Hopper consists of two pipes that are holding the treats. It simply slides into the square cutouts in the Base part. Attach this last and finally fill the hopper with treats.

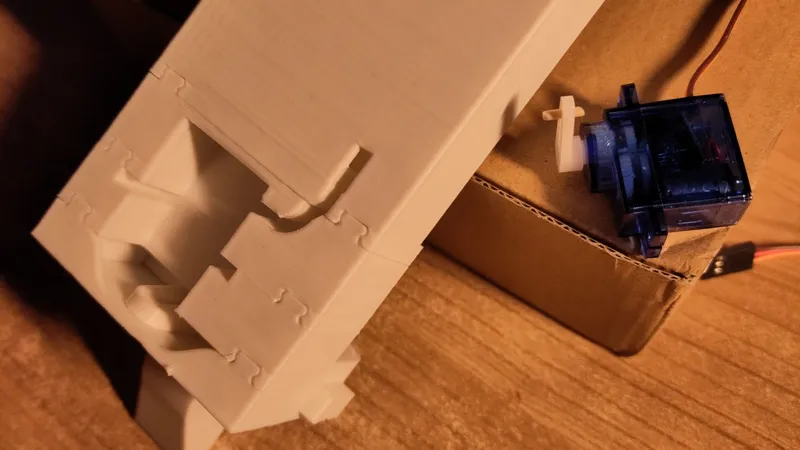

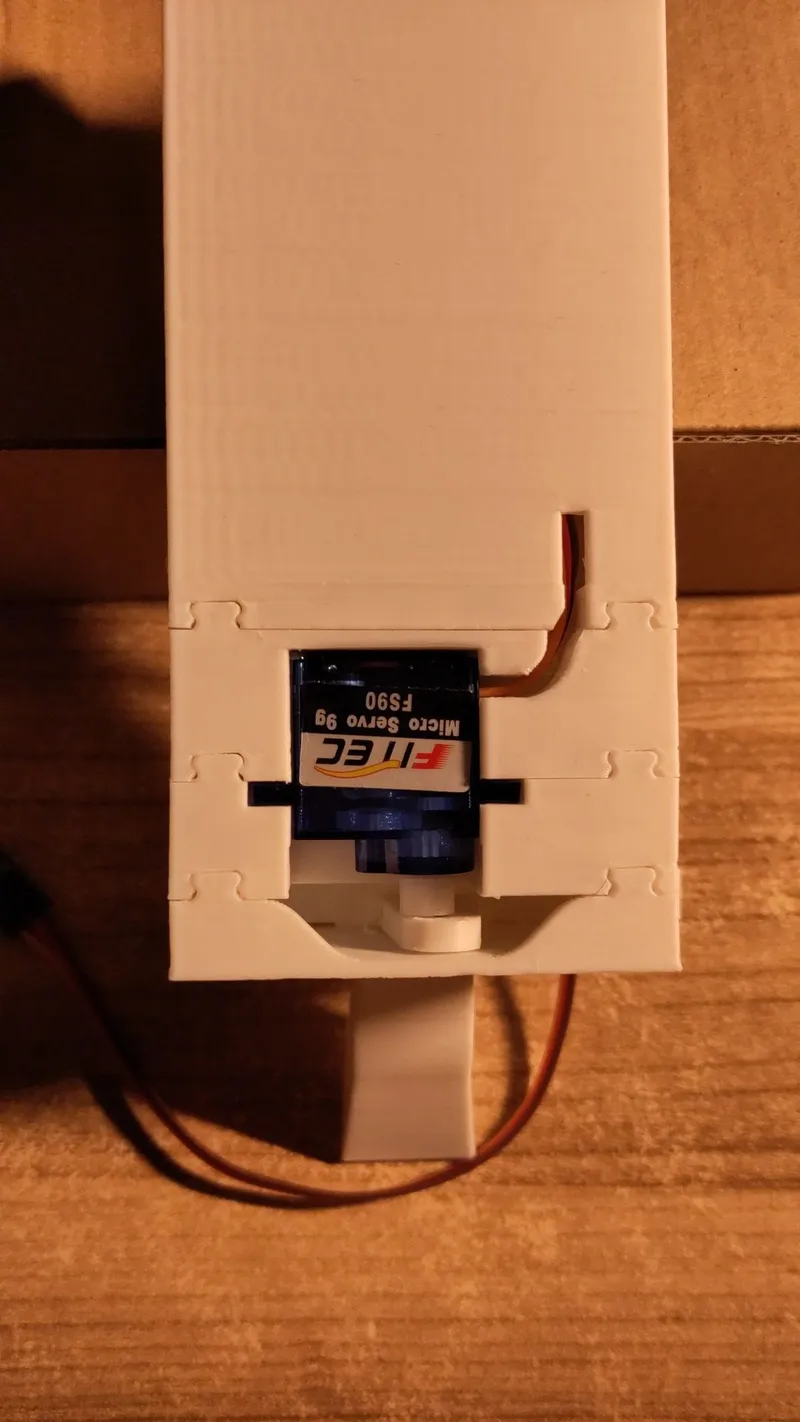

Installing the servo

Connect the servo to the Arduino running the code from the repository below and power it on. The servo will now turn to its 90°-position. Disconnect the servo and install the servo horn.

The horn should point straight up when the servo lays on its side. Make sure to put it the right way up. You can see it from the two images below. When inserted into the slot at the back of the 3D-printed case, the horn should point into the part.

Now insert the piece of filament into the servo horn's large hole. Align the horn with the slot in the Sled so that the filament connects the two. Now slide the servo back and clip it into its slot.

If this doesn't work you can also take the bottom off, then install the servo into its slot and reattach the bottom again, making sure the filament-pin is in place.

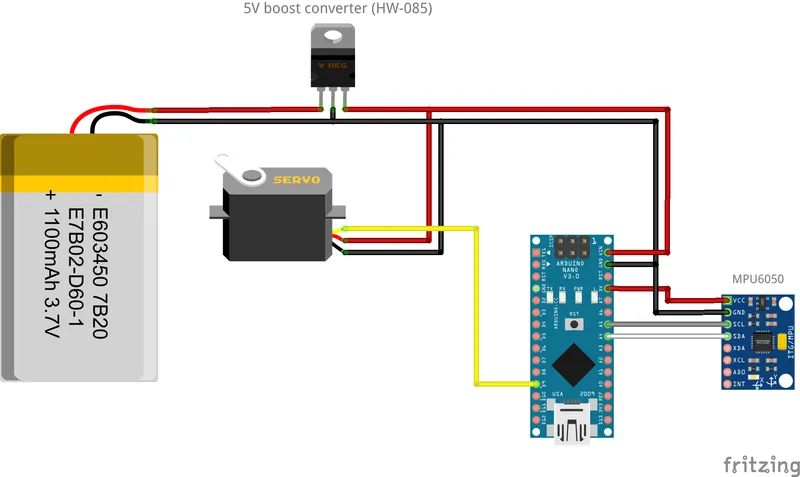

Wiring

Power

• connect battery+ with the In+ pin of the voltage regulator
• connect battery- with the In- pin of the voltage regulator
• connect the voltage regulator's Out+ pin to the servo's red wire and the Arduino's Vin contact
• connect the voltage regulator's Out- pin to the servo's black/brown wire and the Arduino's GND contact
• connect the MPU's VCC contact to the Arduino's 5V contact
• connect the MPU's GND contact to the Arduino's GND contact

Logic

• connect the servo's data-pin (usually yellow or orange) to the Arduino's D9 contact. This is a PWM pin. If you need to use another pin, make sure it is a PWM pin (usually marked with a ~) and don't forget to change that pin in the code as well (PIN_SERVO)
• connect the MPU's…
  • SCL to the Arduino's A5
  • SDA to the Arduino's A4

You can find an svg version of this graphic in the Other Files section.

Comissioning

Flashing the code onto the Arduino should have happened already during assembly as it is required for installing the servo.

When the Arduino is powered on, it will initially wait for a moment (5 seconds) to allow the device to settle and vibration to fade out.

Then, there is a brief calibration procedure that analyses the accelerometer's data to detect the sensor noise without the device moving. Don't move the sensor during that time as this will reduce the sensitivity later on.

When calibration is complete, the servo will slightly twitch to show that the calibration is complete. Moving the MPU now will trigger a treat-dispensing now.

There are a few parameters that can be changed in code to adjust the behavior. These are:

• Dispense Cooldown: When dispensing was triggered, the next trigger will not happen until this cooldown is over. Default: 5 seconds
• Dispense Amount: The number of treats that will be dispensed when triggerd. Default: 1
• Dispense Period Length & Dispense Amount per Period: The period is a means of limiting the number of treats that are dispensed over time. During a period only the set amount per period will be dispensed. Example: period length is set to 60 minutes and amount per period is set to 3 (these are the defaults). Within the 60 minutes after the first dispensing was triggered, only 3 treats will be dispensed in total. This can happen during the first minute or over the whole period's time. Once the period has passed after a dispense, that ‘slot’ will be cleared and another treat is ready for dispensing.
• Dispense Interaction Duration: This is a means of controlling the sensitivity for triggering. Interactions with the MPU need to be recorded for at least this amount of time before the treat is dispensed. Higher values require longer interactions. Default: 3 seconds
• Dispense Interaction Timeout: An interaction can consist of multiple small interactions, not only a continuous long one. This is the time before a interaction will time out. If another interaction is recorded within this period, this is considered the same interaction. Default: 2 seconds

Code

The arduino code can be found in this github repository.

The parameters mentioned in the above section are these:

• DISPENSE_COOLDOWN
• DISPENSE_AMOUNT
• DISPENSE_PERIOD_LENGTH
• DISPENSE_AMOUNT_PER_PERIOD
• DISPENSE_INTERACTION_DURATION
• DISPENSE_INTERACTION_TIMEOUT

Those values are in milliseconds.


The calibration uses a ring buffer to store the last 50 samples from all relevant sensor readings. The values stored in the ring buffer are used to calculate the average of all the values. This average is used as the base-line for detecting movement.

An interaction is recorded when the current acceleration value exceeds the sensor's average + a threshold value. The threshold is calculated from the noise measured during the start-up period.

This way a sensor value drift is not a problem as long as it happens slowly.

Printing Instructions

The parts are already oriented in the way they should be printed.

• Material: PLA
• Layer Height: 0,2 mm
• Infill: 15%
• I used a brim for all of the parts although that might not be necessary for the larger parts. In particular I had problems with bed adhesion when printing the Sled. Without, it just didn't stick. For the two small clips a brim is highly recommended.

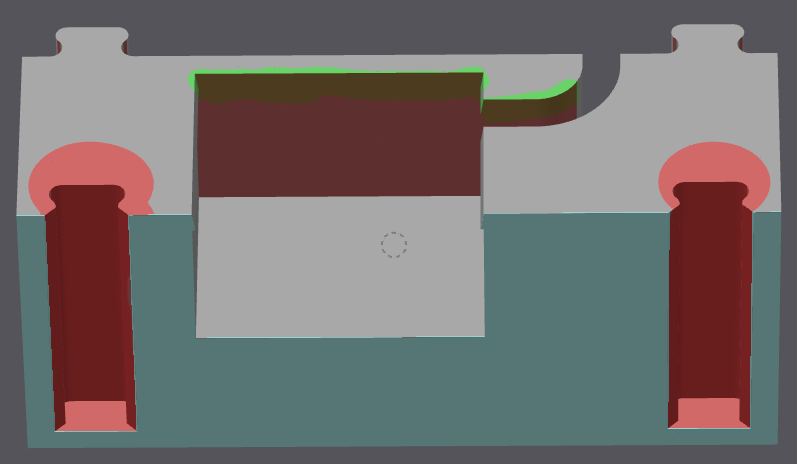

• Only the Base Extension-part needs supports because of the large overhang for the servo and the servo cable. I used auto-tree supports. This is how I painted the supports in Orca Slicer (green: support, red: no support).



Room for Improvements

• add power switch - I was a bit under time pressure for this project. So I simply forgot to consider this
• cut power to servo when not needed
• arduino power management. sleep when unused
• improve motion detection to avoid triggering when mounted to a door and that is moved
• improve Electronics Cover so it snaps shut. It works as it is but I'd prefer a snappier attachment
• add hopper cap to protect the treats from dust and (at least a bit) moisture
