Spool rack for 2020 aluminium extrusion

Use this model along with 2020 aluminium extrusion (or any 6mm groove aluminium extrusion).

I have 2 options for you:

• The first one (the one I used) is to use an MDF plate in the groove as the second setpoint, along with one 2020 extrusion.
• The second one uses two 2020 extrusions to make the 2 setpoints.

You will need (with every unit of this piece):

• 2 M4x20 screws with the associated hammerhead nuts
• 1 (or 2, depending on which option you choose) M5x10 screw with the associated hammerhead nut

The standard spool (around 20cm in diameter) should fit perfectly with the support stacked above each other.

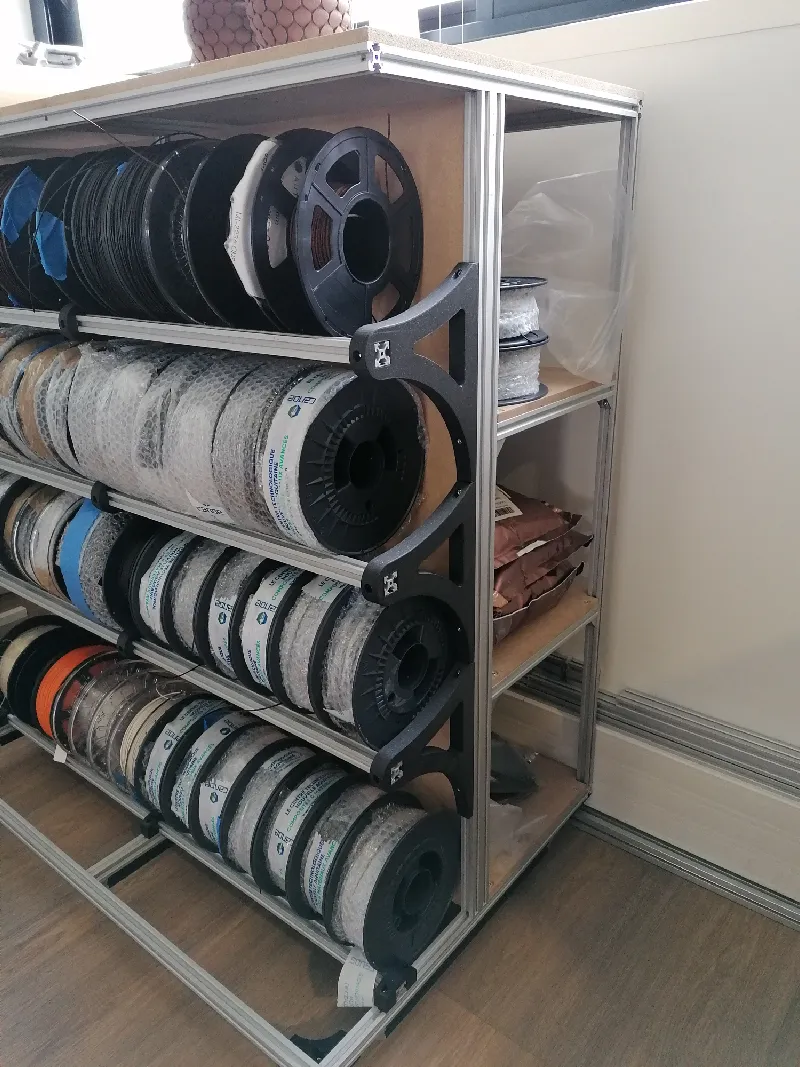

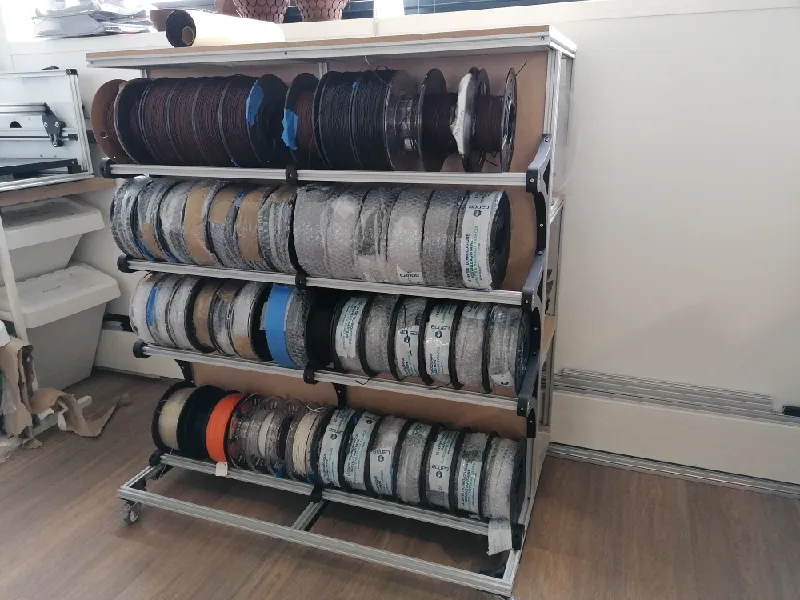

Here is an example of how to use it :

In case you want to modify the file for your needs, feel free to remake it from the STEP file! Hope you enjoy it.
