3D printable open frame PC case

The 3D printable open frame PC case is our take at making an easy open frame PC case.

Want to see some examples of completed builds? Check them out in our builders gallery here:

CORSAIR Completed PC Builds | PC Showcase | CORSAIR

All the parts are made to fit standard 1 inch pegboards, such as the ones used in our lineup of PC desks such as the platform 6, and platform 4.

You can check out the full lineup of desks and pegboards here: https://www.corsair.com/c/gaming-furniture/gaming-desks

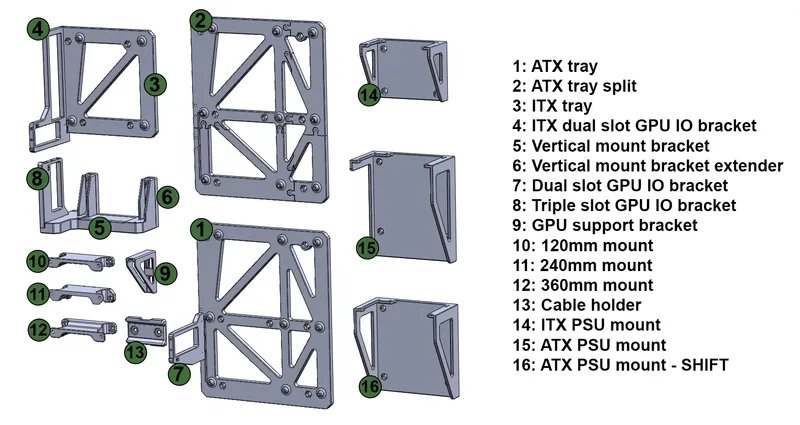

The current lineup of files consists of:

1. ATX tray
2. ATX tray split
   1. This is the same as the ATX tray, but split into parts so it fits any printer with a 206x206 or above print volume
3. ITX tray
4. ITX dual slot GPU IO bracket
   1. This bracket should be used if you want to mount a graphics card in the “normal” orientation
5. Vertical mount bracket
   1. Use this bracket for vertically mounted graphic cards - for this you will need a PCIe riser cable
   2. The bottom left most M6 bolt in this can be up to 100mm long to provide extra strength to the printed part - useful for very heavy GPU's. See the section view here
6. Vertical mount bracket extender
   1. Use this if you want to move your GPU slightly further out from the pegboard.
7. Dual slot GPU IO bracket
8. Triple slot GPU IO bracket
9. GPU support bracket
10. 120mm mount
11. 240mm mount
12. 360mm mount

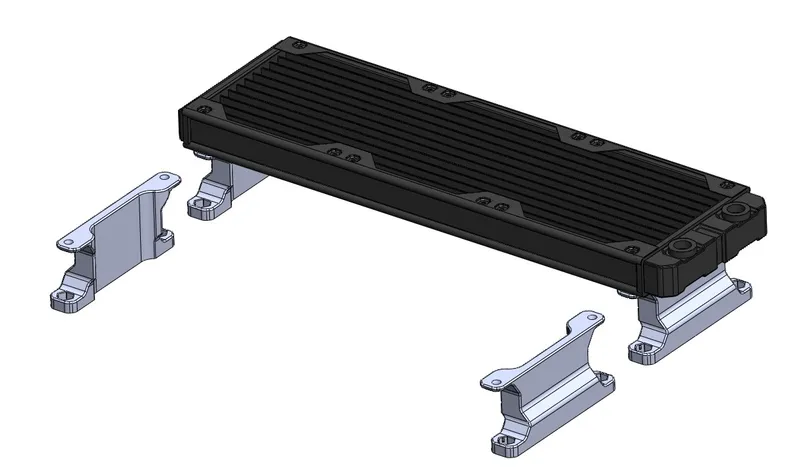

    1. These radiator mounts are not universal, but only fit either 120, 240 or 360mm due to the 1 inch hole spacing. They need to be mounted in each end of the radiator with the “cutout” facing inwards.
13. Cable holder
14. ITX PSU mount
15. ATX PSU mount
16. ATX PSU mount - SHIFT
    1. This part comes in two different lengths, one fir 180mm long PSU's and one for 200mm long PSU's

Hardware needed for these prints are M3, M4 and M6 nuts and bolts. Length of the bolts depends on pegboard thickness, but for corsair pegboards M6x10mm is the optimal length.

For the various other parts, we recommend having an assortment of different length M3 and M4 available.
