In line 5 in 1 hub with filament sensor

This is ideal for 4 color/lane/filament MMX/MMU system you have an extra port if you want to print fast something you don't need to unload something just insert the filament in the spare port!

5-IN-1 hub + sensor
For those who don't want to change the setup but they want a hub with a filament sensor in it ( GATE )

BOM

1x 5mm ball https://s.click.aliexpress.com/e/_oBLxWQ7
6x PC4-M6 PTFE Press Fitting  https://s.click.aliexpress.com/e/_oC9Rr5H
1x  Microswitch 12.8 x 6.5mm  any 3d printer switch or omron  https://s.click.aliexpress.com/e/_oC7Q4Q7 (sensile)
 Here is a good price for 10m PTFE tube  https://s.click.aliexpress.com/e/_oFYV52X

this is ideal for direct drive and mmu since it has a 2.5mm inner diameter

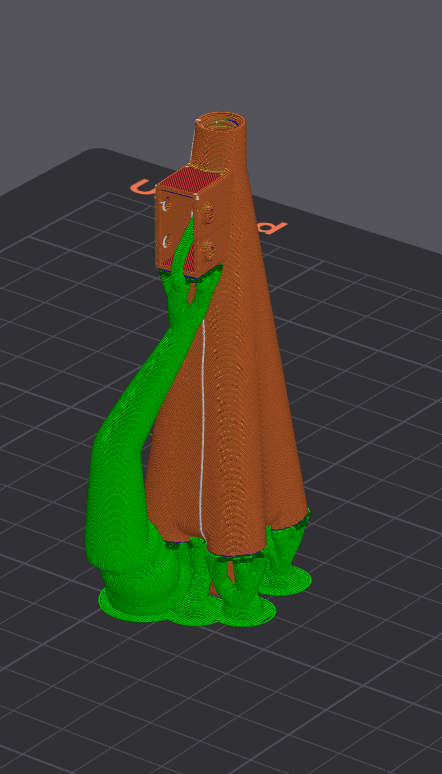

if you print it in abs it is easy to remove the support
i have print it in the orientation that is is posted and using support.

you can play with the orientation

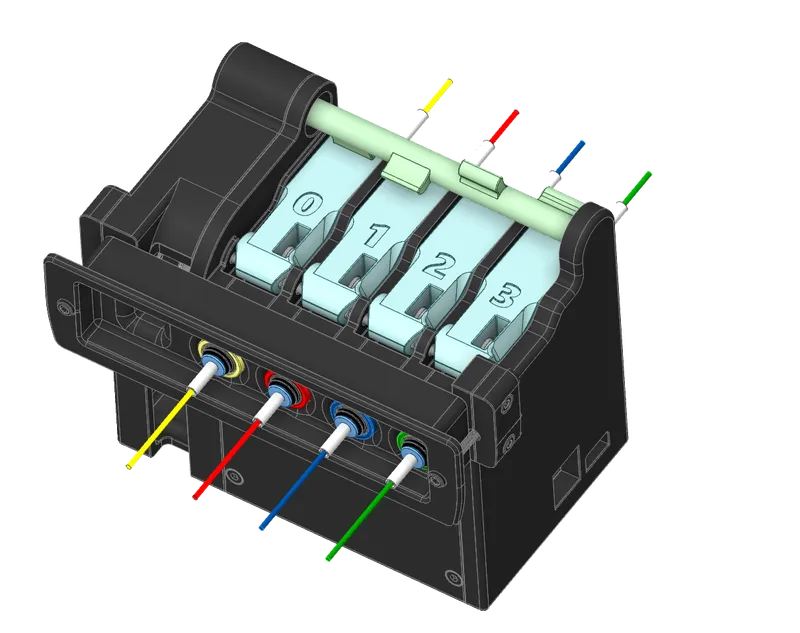

Check our MMX

https://www.printables.com/model/1181017-mmx-multi-material-extruder-exclusive-beta-release
