CYC Photon Motor Assy

CYC Photon Step models for your own projects. I modeled parts for creating some attachments I needed. Thought it could be nice to share the base models if someone needs to create something.

I have used my bike with 73mm bottom bracket as base and the spacers are made for that. Chainring is 38T.

1. Motor
2. Bottom Bracket Spacer (10mm)
3. Bottom Bracket
4. A-Bracket
5. A-Bracket spacer (16.5mm)
6. Crank shaft
7. Chainring (38T)

They come as one step file with every part assembled together.
There is also a zip file with each part separate.

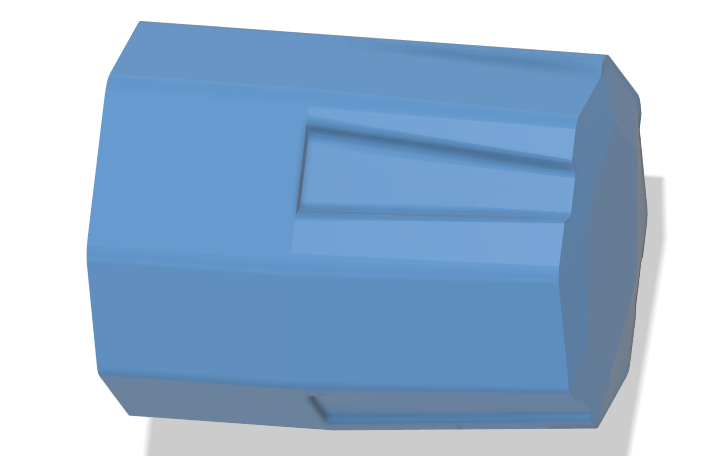

There is also a separate model for the motor housing only in simplified form without cooling fins if you need that.

Settings for the software can be handy to have in some sheet so I have made a settings sheet in both Excel and PDF format. See “other files” for these.
