GEN2 115-1W-2H Decor Drawer
Description
PDF
The GEN2 Modular System is a 3D printable storage solution offering ultimate flexibility and customization. Perfect for home users, hobbyists, and small businesses, it lets you print exactly what you need and customize each piece to match your unique style and space.
Unlike store-bought sets, GEN2 lets you print only what you need and expand your setup whenever you want. The drawers snap together seamlessly, giving you unlimited expansion possibilities. With the unique QuickLock mechanism, rearranging or relocating drawers is quick and effortless, so your storage can grow and adapt with you.
STEP 1: Location
Decide how you would like to use your GEN2 storage. Keep in mind that the drawers are modular and can be easily swapped between under table and table top locations. All drawers are available for mounting under the table using rails, but you can also place them on top of any surface with table top kits.
Find these kits at JERRARI3D/gen2-modular-system
UNDER TABLE (GEN2 RAILS) Attach GEN2 drawers under any surface by installing the GEN2 RAILS. Once installed drawers can slide and lock into place, they can then be swapped out and rearrange in seconds. | TABLE TOP KITS Table Top Kits include covers and foot rails that when combined with drawer cases create a rigid structure that can be placed anywhere |
What You'll Need
Visit Jerrari3D.com for a list of all compatible drawers.
Understanding Part Names

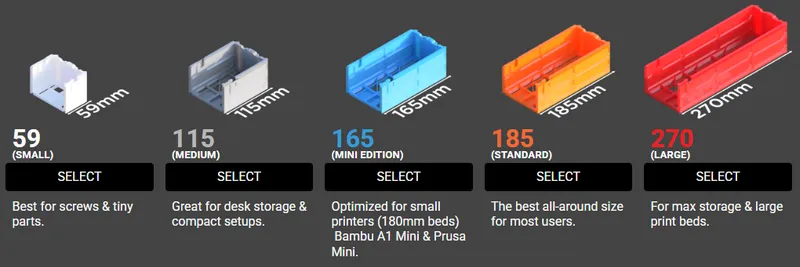

GEN2 drawers are titled by length, width and height, such as in this example.

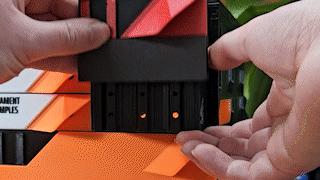

Choose a Faceplate
Download and customize faceplates HERE
HARDWARE
Includes affiliated links to help support my projects
• Filament - Black PETG (My go to for the drawer bodies) or PLA
• M3 nuts and screws: Stainless-Steel or Steel
• Magnets (Optional): 10x2mm or 6x2mm
• Screwdriver
UNDER TABLE (GEN2 RAILS) HARDWARE
• Countersunk woodscrews: (SAE: #6 or #8 up to 1/2" or longer) or (Metric: 3.5x16mm or longer)
• Drill bit that is smaller diameter than the wood screws (My Recommendation)
• Pen, Marker, or Scratch Awl (for installing under tables)
INSTRUCTIONS
Detailed visual instructions at Jerrari3d.com
For basic instruction on assembly please check out the above video
Please note: The Non-Commercial license refers specifically to selling prints. You're absolutely welcome to use my designs in commercial environments—I actually encourage you to use them anywhere you see fit! 👍
