K1 K1C Feet For Side Braces

!!MODIFY AT YOUR OWN RISK!!

I needed feet that were compatible with the side braces, that didn't significantly increase the printer's foot print, I couldn't find any so I designed these.

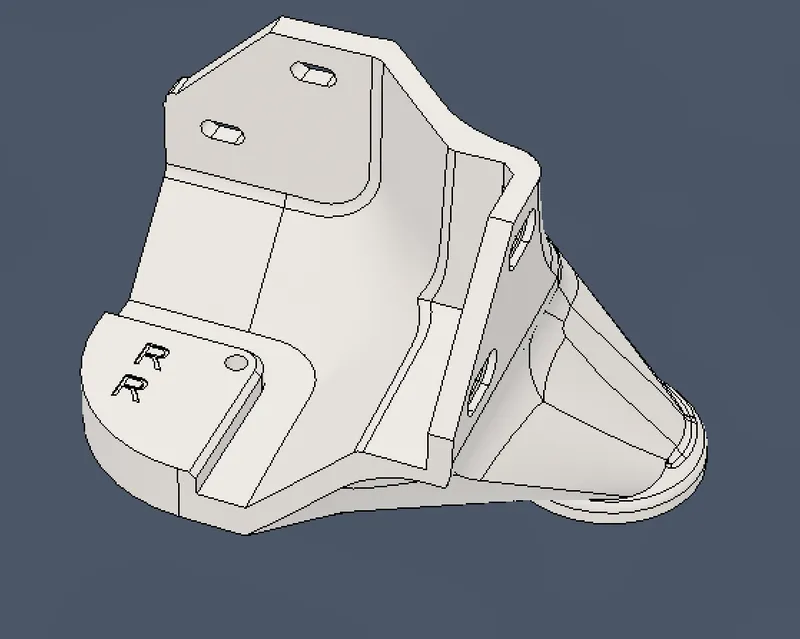

Location for each foot is designated by a marking on the corner of the foot  mounting position

RR = Right Rear
FR= Front Right
LR =Left Rear
FL= Front Left

If you like my designs leave a like and a make!

YOU WILL NEED

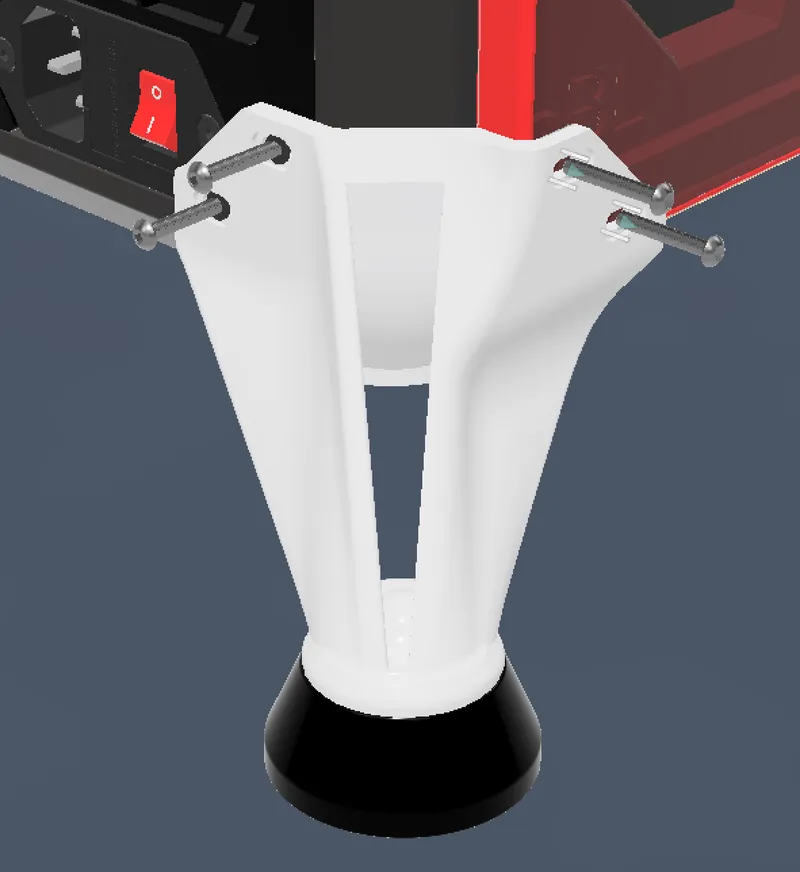

12x M3x20mm Button or Socket head M3 screws - to attach the feet to the frame sides

4x M3x16mm Socket head screws - to attach the feet to the frame bottom

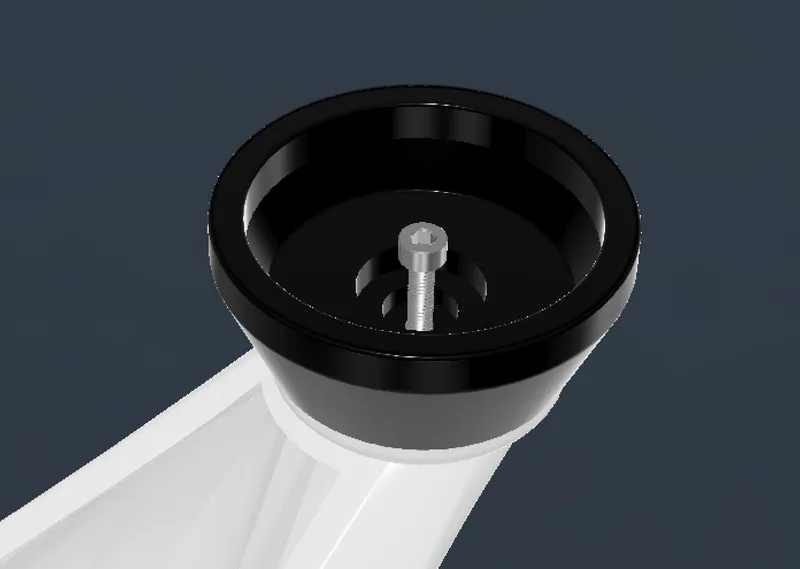

4x M3x16mm Socket head screws - to attach rubber feet to the printed parts

4x M3x4x5 Heat inserts - to attach the black rubber feet to the printed parts

you should be able to repurpose some of these from the printer (like the screws to attach the rubber feet)

****ONLY USE THE 3MF IF YOU HAVE 0.6mm NOZZLE****

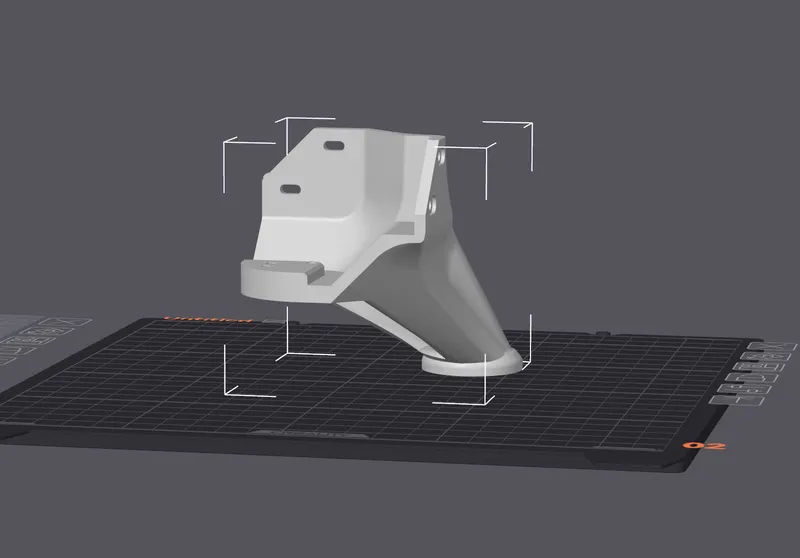

orient part like this in slicer

For Printing just one

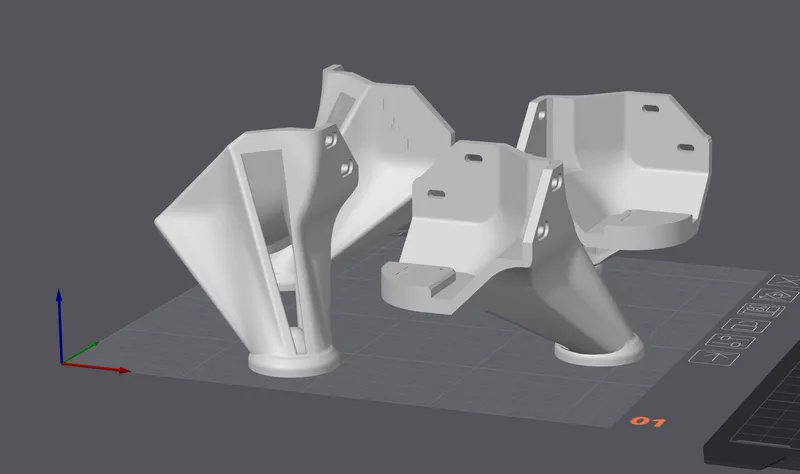

For Printing 4 at a time

USE SUPPORTS!!

Designed feet that fit these, used the side as a guide for the dimensions of one side of the feet mounting solution
