SV06/+ Double Sheared and Sturdier Y Bracket - Offset For 48mm NEMA17

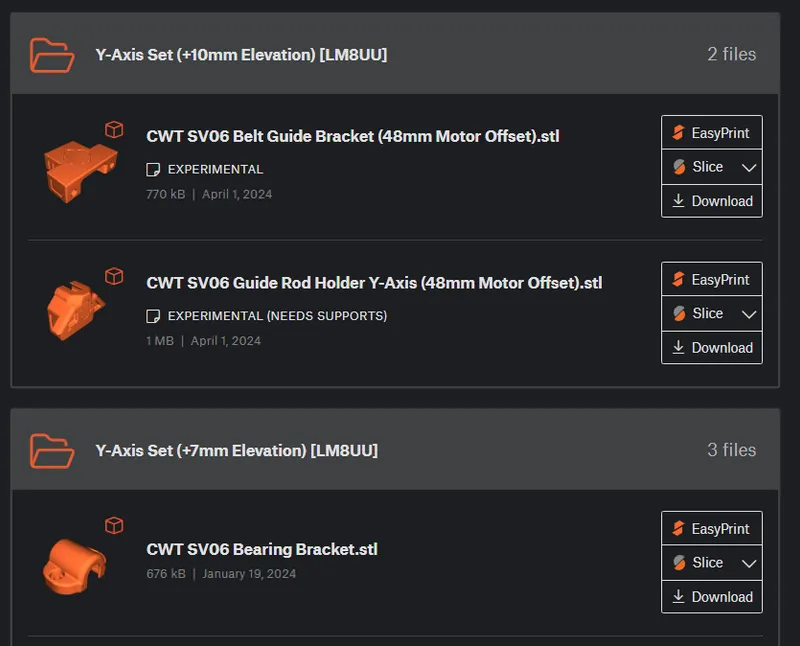

REQUIRES CWT EXPERIMENTAL +10MM Y PARTS BELOW FOR 48MM STEPPERS, BEARING BRACKETS ARE GOOD FOR STABILITY TOO:
https://www.printables.com/model/727854-sovol-sv-06-reinforced-y-axis-components-7mm-eleva/files

A "Double Sheared" (bearing supported stepper shaft) Y bracket for the SV06/+ for higher Y belt tensions, offset from the rear metal for 48mm steppers.

You must remove the rear plastic from the frame to use this mod.

No heat inserts required.

It's a little ugly so feel free to remix.

Lazy BOM:

M3 SHCS 26mm (30mm if you ran out and have to use a nut and washer on each like I have) *3 to mount stepper

M4 ANY 16-18mm *3 to mount to metal

F695ZZ Flanged Bearing *1 to push into Y Motor Fixing Plate.step
