SawLink Universal QuickMount - Wire based pole saw conversion

SawLink Universal QuickMount offers the same remote-trigger pole-mounted chainsaw setup as ToughMount, but with a twist: all fasteners are 3D printable and designed for hand disassembly. No tools needed, no hardware store visits — just print, assemble, and go!

This version is perfect if you often switch between pole cutting and manual pruning. The easy-on/easy-off system lets you quickly detach the chainsaw for handheld use. It also features fewer parts, simplifying the build and reducing print time.

Prefer a more traditional build with off-the-shelf clamps and screws? Try SawLink Universal ToughMount instead — both are equally capable, just a matter of style and convenience.

Want an even lighter setup with electric control? Check out the SawLink Electric QuickMount

A. Printer Settings:

• Filament Type: PETG, ASA, PET-GF or another strong material suitable for outdoor use

• Wall thickness: Screws and Flaps >2.4 mm, Bases >1.6 mm (optional)

• Infill: >30% for added strength and durability

• Supports: Not required, could improve the aesthetics of some overhangs. Don’t use supports for the trigger.

• Nozzle Size: >0.4 mm (I've used a 0.6mm nozzle)

B. Assembly Instructions:

1. Chainsaw Holder Assembly:

   1. Assemble Chainsaw Holder acc. to drawing below. Use the short sholder bolt to fix the lever arm. Use the long sholder bolt to fix the roller.

   2. Secure the Chainsaw Holder around your handheld chainsaw. Ensure it is secured snugly with the length of bolt to choosing (available in 30-50mm lengths) Its recommended to print out the tope pole mount first and then measure the needed length of screws or print out all sizes and try. Depending on your chainsaw’s design, you may need to bypass the safety button that typically unlocks the trigger. In my case, I used plastic strips and a nut to keep it pressed.

2. Trigger Mechanism Assembly:

   1. Assemble the Trigger control acc. to drawing below. Use the Long sholder bolt to fix the trigger.

   2. Attach the trigger control mechanism on the opposite end of the pole. This will be connected to the chainsaw via the Ø2mm steel wire. Make sure the wire runs smoothly and has proper tension to activate the chainsaw trigger. The wire shoudl be inserted into the 3 holes according to the pattern printed on the side of both the trigger and the leverarm.

3. Fix to pole:

   1. Secure the chainsaw holder and trigger control firmly to the pole using the 50mm long screws. Ensure the connections are tight and secure to avoid accidents during use.

4. Adjust wire tension

   1. Tension the wire enough to push the trigger but not to tight to avoid the trigger getting stuck in the on-position.

5. Adjusting pole length (if used with a telescopic pole)

   1. SawLink can easily be used with a telescopic pole. just make sure to take out the battery when adjusting the pole length and wire tension to avoid accidentally turning on the chainsaw. Always loosen the wire before adjusting the pole length

C. Bill of Materials (BOM):

Refer to the attached exploded view drawings for detailed assembly instructions.

D. Exploded views

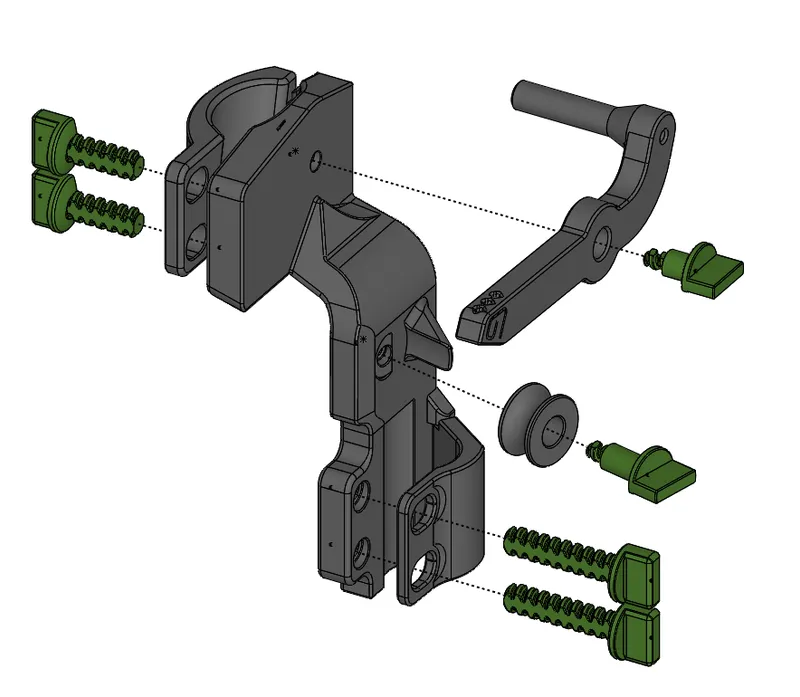

Chainsaw Holder:

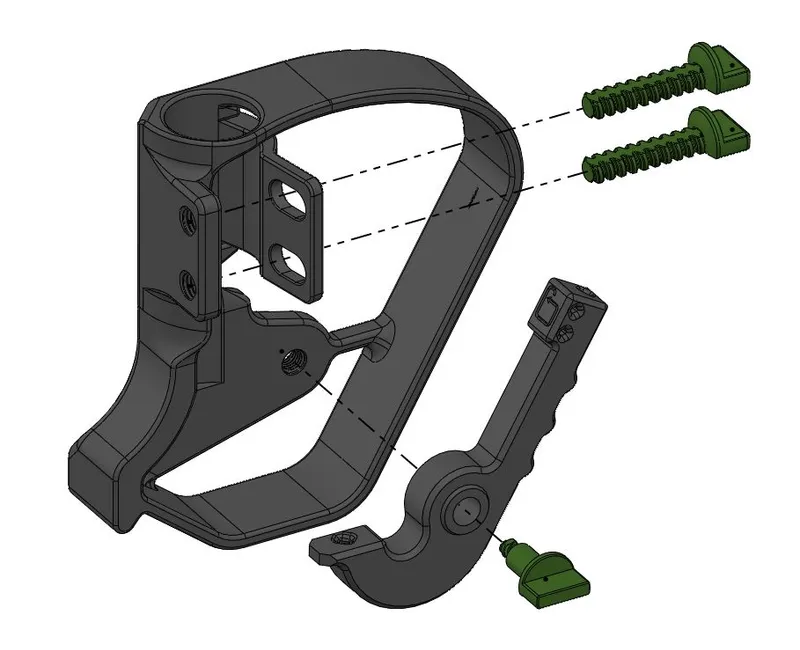

Trigger Control:

E. Optional Parts:

I've also created a handle that I would highly recommend to use together with SawLink!

F. Revisions:

• 2025-04-11: Initial release

• 2025-10-17: Top and bottom pole mount hinges and latches where beefed up

• 2026-02-28: Added antiwarp features to make post processing easier and reinforced flaps

F. Disclaimer:

Use this design at your own risk. Muffelkraft holds no responsibility for injuries, damages, or improper use of this product. Always ensure proper safety measures when operating power tools. Depending on your chainsaw model, you may need to bypass the safety button that unlocks the trigger function.
