Original Prusa Enclosure Corner Camera Mount for ReoLink E1 Zoom Camera

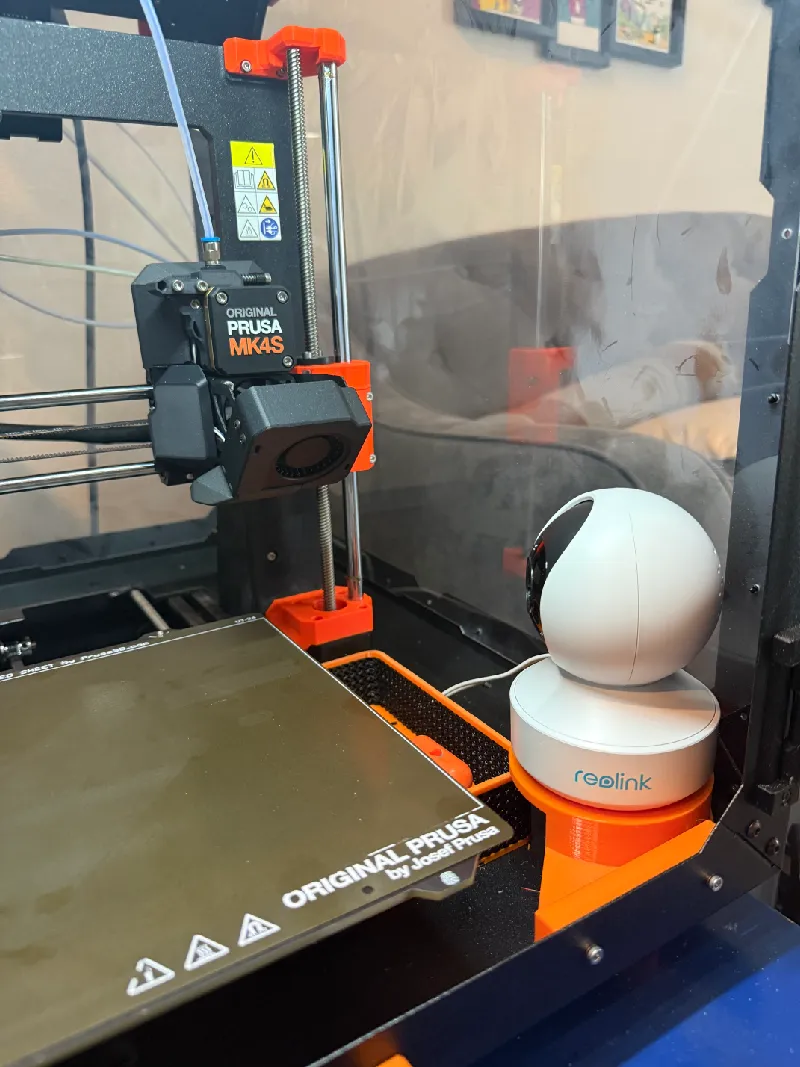

This mount is designed to attach a ReoLink E1 Zoom camera into the front bottom corners of the Prusa Original Enclosure, although it can also still be used on the top corners.

The bottom corners were the primary design consideration, so the camera has a nice view of the front corner of the build plate and model and can be used to get very good timelapse videos.

If you are curious this timelapse is a of a banana holder model I happened to be printing right around the time I was working on all this.

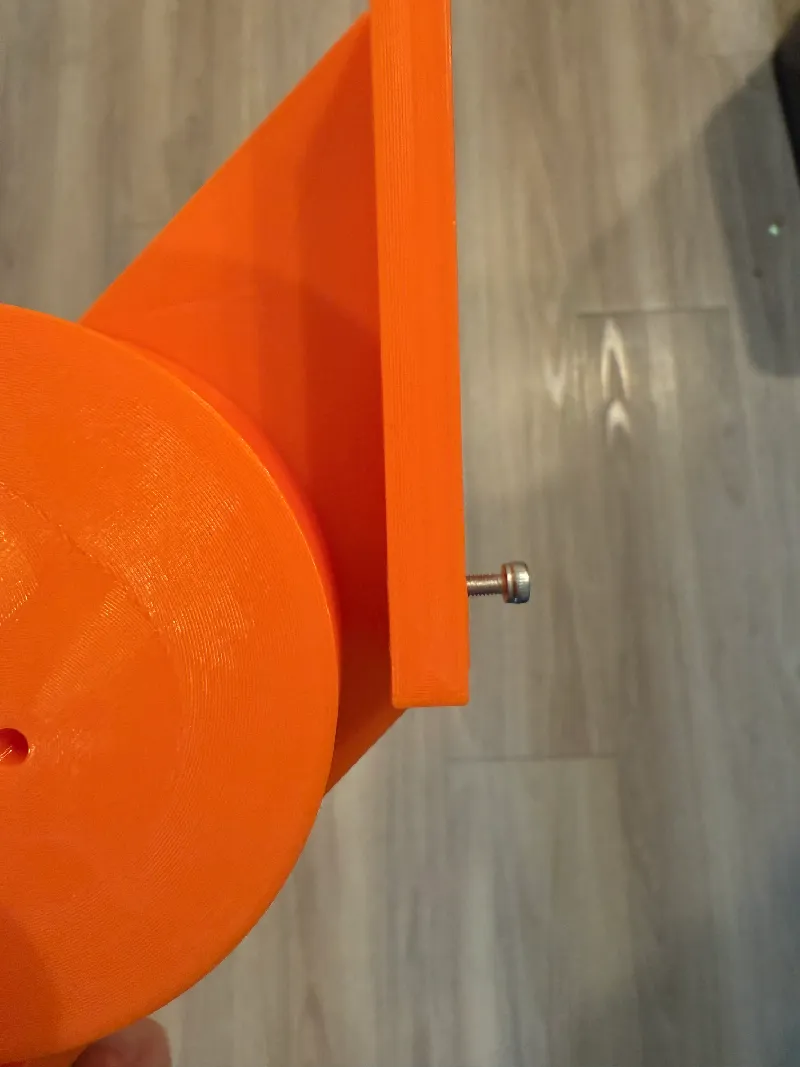

• You will need (2) M3x6x5 heat inserts and (2) M3x6 Hex Socket Head Cap screws to attach the base plate for the camera to the model.
• You will also need two (4) M3x12 screws and (4) M3 nuts to attach the mount to the enclosure.

The mount also has clearance for some other things that might be installed in the base of the encloser, like these organizers:

• https://www.printables.com/model/520308-original-prusa-enclosure-ope-precision-fit-multico

MAKERS: Please post a picture with comments here of any prints/makes you do from this model so that I can see how people are using it and whether you are finding success with it. Thanks!

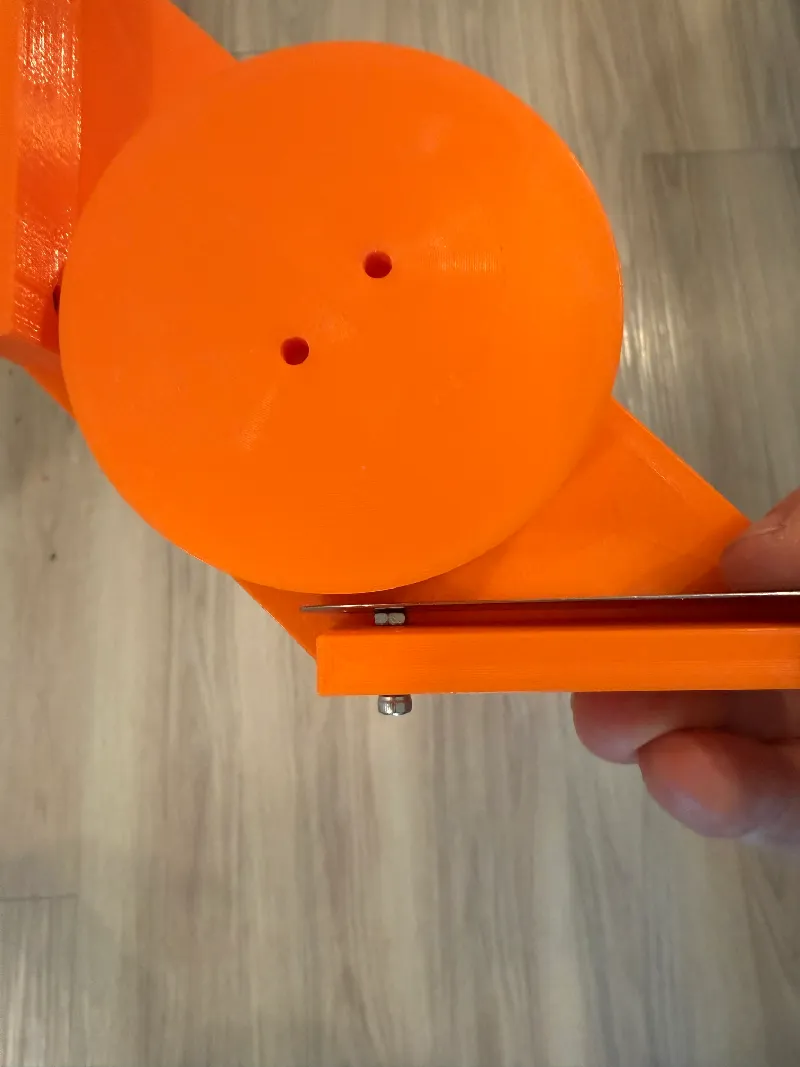

NOTE: Installing the two back nuts can be a bit tricky, but with the help of something like a kitchen knife and a long M3 screw, you can hold the nut flat, screw it in a bit and then use the screw to pull the nut into place.

This remix is designed to be attached to the mount for a ReoLink E1 Zoom camera.
