Voron Trident Frame Brace with Cover

Why a brace?

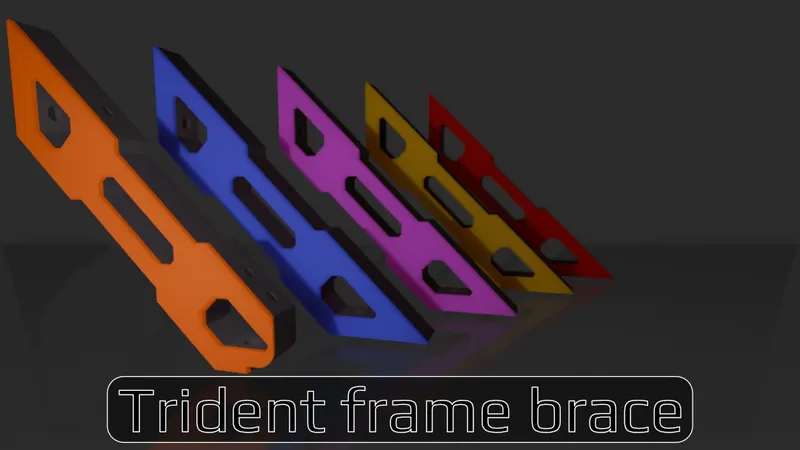

I loved to look of frame braces. So made my own version swappable covers. Safe some filament after changing your accent color. Braces printed out of proper material (ABS/ASA/...). Cover could be printed in some fancy material like luminous PLA. Would PLA melt away. Propably. But maybe it looks cool.

What you need

Printed Parts

• brace_normal_x3.stl
• brace_z-chain_x1.stl
• [a]_brace_cover_normal_x3
• [a]_brace_cover_z-chain_x1

BOM

• 8x M3 T-Nuts or hammerhead nuts
• 8x M3 heatset inserts (Voron Spec M3x5x4)
• 8x M3x8 for mounting the brace to the frame
• 8x M3x8 for mounting the cover to the brace. Optionaly cou can put M3x12 for mounting. There is somee extra space left.

Print settings

Print parts in Voron print settings. Parts need no support and are oriented correctly.

Mounting

1. insert the heatset inserts with your favorite tool.
2. mount the cover to the brace with M3x8 screws.
3. mount the braces to the frame. Printed part brace_z-chain_x1.stl is mounted at the back left corner. Loose your Z_chain mount for a snug mounting. There is a cutout for screw. The othere 3 braces (brace_normal_x3.stl) belong to the other corners.

Attention please!

Caution! The front braces need to be mounted flush to the extrusion at the front! The braces have a gap of 0.5mm to the Z Carriage. Check clearence after mounting!

Enjoy.
