DSG gearbox refill adapter (top fill service) - VAG

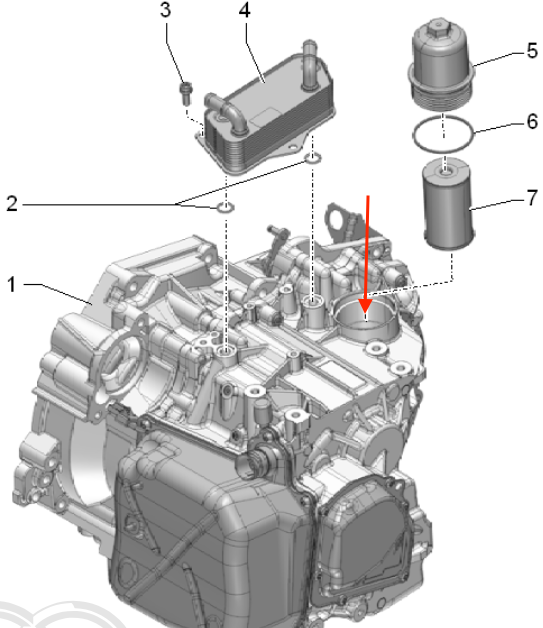

Adapts a funnel to the oil filter housing for a "top fill" method gearbox service. This way you don't have to mess around below the car with hoses and pumps and it's reasonably quick.

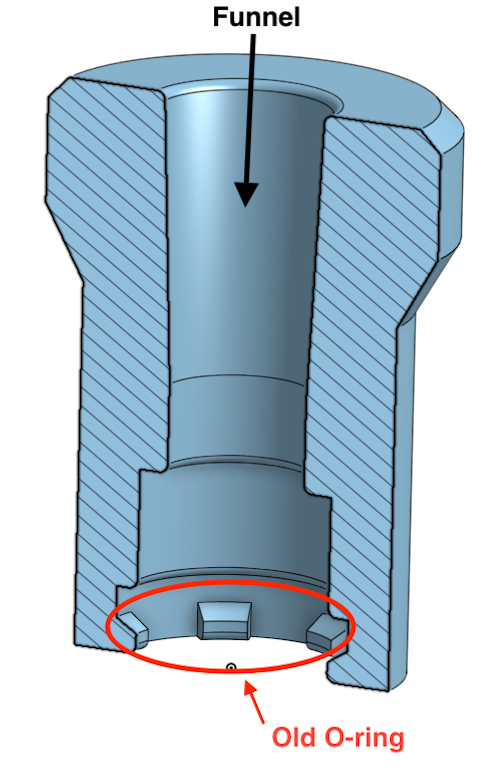

You need to use the O-ring from the old filter inside the adapter so that it can seal properly against the oil filter housing:

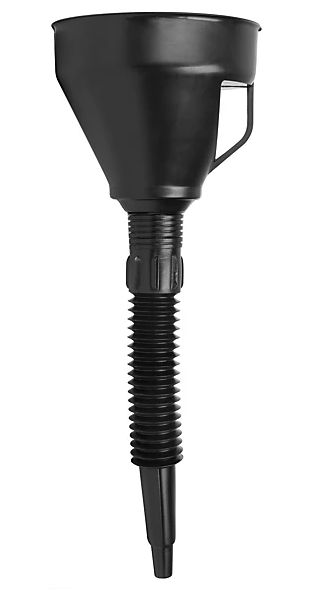

I used a funnel like the one below and it took around 15 mins to fill 5L of DSG fluid in my A3. You can adapt the file to whatever funnel/hose you're using (the longer the funnel, the quicker it will fill). Make sure the funnel tip has a decent seal against the adapter.

Printing Instructions:

I would just suggest to use a wall count of at least 3. Make sure it's clean from loose bits of plastic from the printing process before using it.

Print in the orientation shown in the photo (O-ring section up)
