Din Rail Holder Mount for PSU
Description

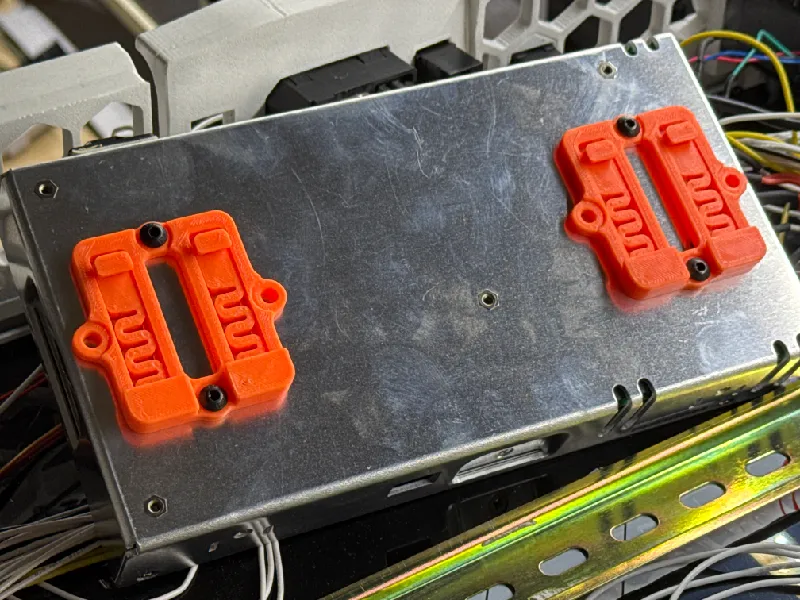

PDFFor mounting devices to your DIN-Rail.
It grips firmly and has improved stability. 50mm and 55mm hole pattern available for mounting PSU and other electronics.
.step Available for modification to your own needs
Printing:
Print in the given orientation. No support needed.
CHANGE LOG 25.05.2025
Added a single 55mm and 50mm version with reinforced “nubbin” on the slider.
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
The following modifications were made to the original Din Rail Mounting Bracket:
- Increased scaling of the spring, in order to make it harder.
- Made the sliding part a little smaler in order to have a slightly bigger spring.
- Tightened the grooves for the sliding part. It holds more firmly now.
- Made the “Rail holding” parts a little more tight.
- Reinforced the sliding parts “clip”
- Added Versions with extra bolt holes
