Thermometer / Hygrometer Stand

A stand designed for the temperature and humidity meters often found in online stores. It replaces the stock case to deliver a clean, ultra-minimalist look.

Required other than printed parts:

• 1x Thermometer/hygrometer

Disassembly Thermometer/Hygrometer:

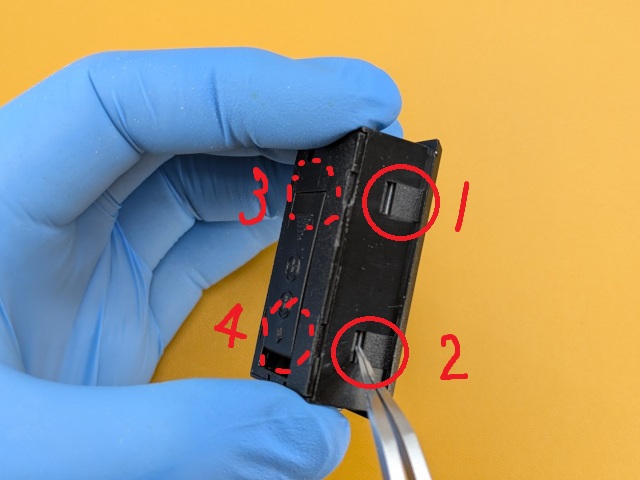

Press the two snap-fit tabs on each side (four in total) to release the fit, and then remove the internal parts. Please remember the order and orientation of the parts for reassembly.

Assembly:

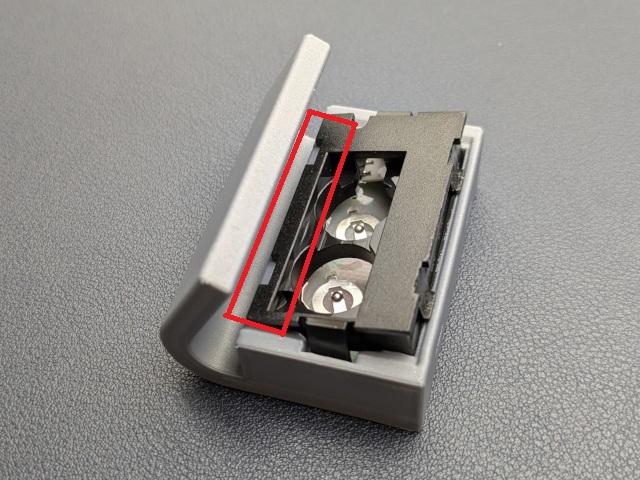

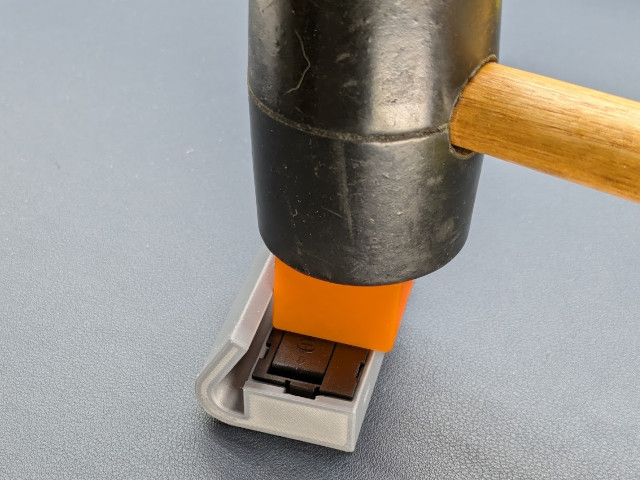

Reinsert the removed parts and snap the four snap-fit tabs into place. If fitting the back cover is difficult, you can try inserting the two snap-fit tabs marked in red in the image first, then gently tap the opposite side using a hammer and a mallet block.

Notes:

• The internal dimensions of the parts are based directly on the stock case, so it's necessary to account for filament shrinkage when printing. In my case, I use a scale factor of 100.5% for PLA and PETG, and 101% for ABS.
• In the case of matte PLA and Silk PLA, which have weak layer adhesion, cracks occurred when struck with a hammer. It’s advisable to avoid using these filaments.

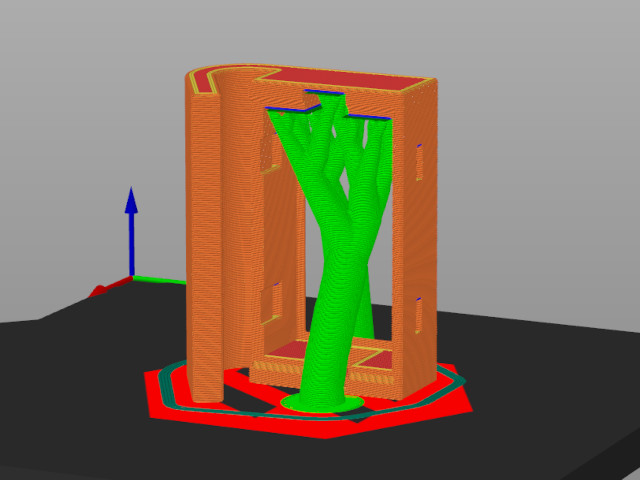

• Support is required for printing.

I remixed it into a desktop stand.
