Tiles "Tri Tiles"

Printing

• print using 0,16mm layer height (All tiles and connectors are optimized for that size)
• use different colors to extend the palette of your creations

Tiles

• disable supports! The printer is capable of printing the bottom home without any supports

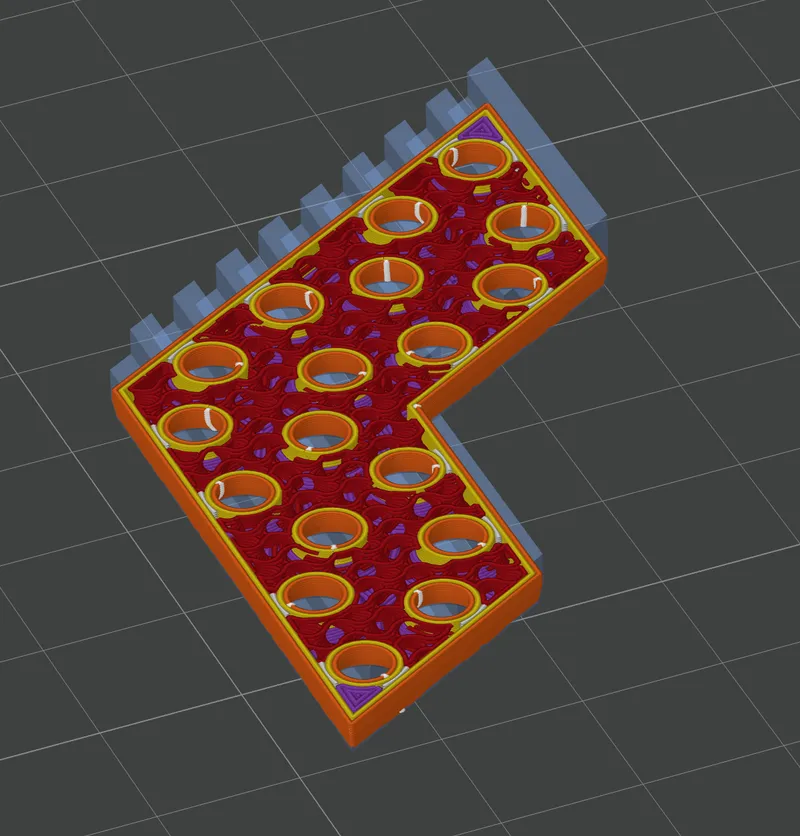

• infill: 30 gyroid

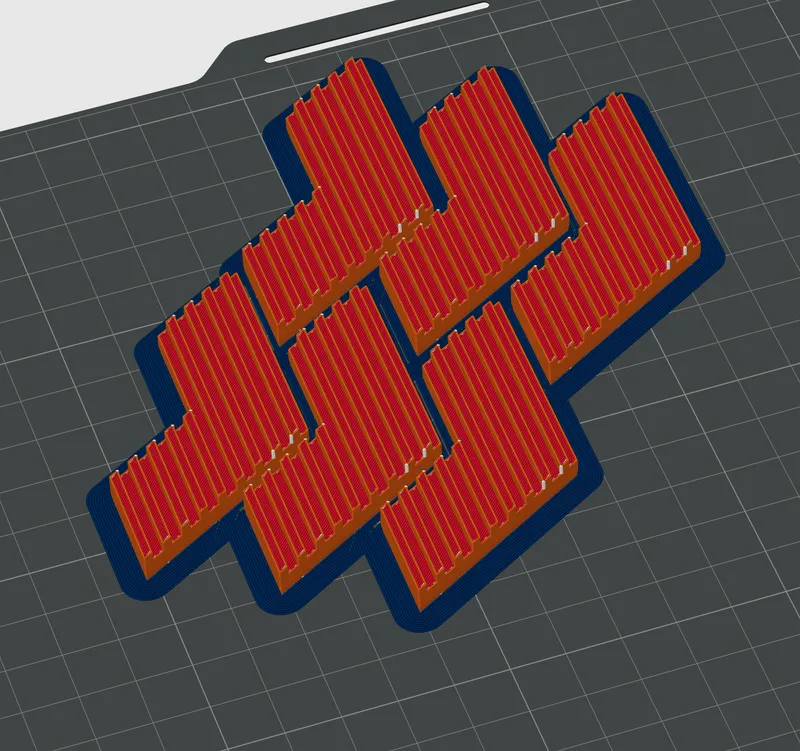

• I print 6 tiles at once
  • use an outer brim if you print many tiles at once and you experience wrapping

Connectors

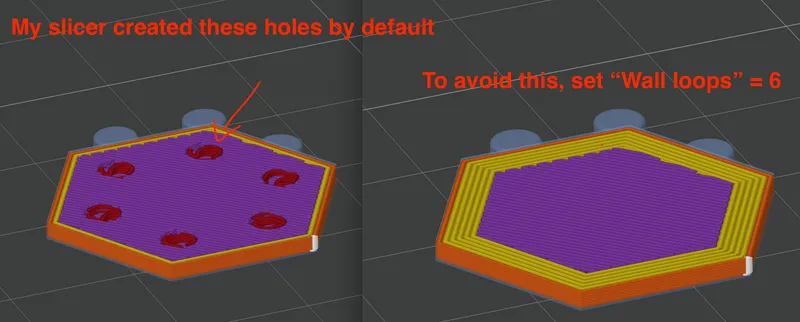

set strength > wall loops = 6

Assembling

I recommend using a big connector like tri-tile-connector_big2.stl to assemble your tiles. Use the smallest connector (tri-tile-connector.stl) when you need to snap parts to the edge of your figure. The bigger connectors have holes so you can easily eject tiles when you want to start over

Have fun

Show me your creations !

What's next

• more patterns to come
• new tile shapes to come

Feedback

If you have ideas about particular patterns or tile shapes you'd want message me, I'll do my best to add them
