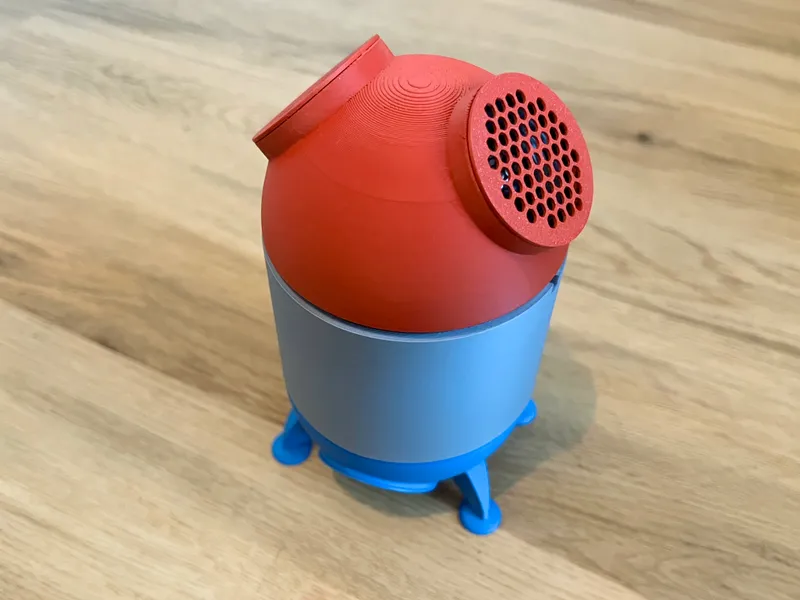

Music Pill - Rock until the doctor is coming...

Music Pill is a bluetooth enabled mobile speaker which is reusing old Bambulab cardboard spools. If there is no more cardboard spool, there is also a “fake spool” included in the project.

Required tools:

• Soldering Ion

Required parts:

• 2x 2-wire 150-200mm (speakers)
• 1x wire black 50mm
• 1x wire red 50mm
• 1x wire red 100mm
• 1x Switch Pololu Rocker Switch: 3-Pin, SPDT, 10A
  https://eckstein-shop.de/PololuRockerSwitch3A3-Pin2CSPDT2C10A
• 1x Adafruit 4410
  https://eckstein-shop.de/AdafruitMicro-LipoChargerforLiPolyBattwithUSBTypeCJack
• 1x 2500mA Li-Ion battery with JST-PHR-2 connector 63 × 50,3 × 8,1 mm
  https://eckstein-shop.de/LiPo-Akku-Lithium-Ion-Polymer-Batterie-37V-2500mAh-mit-JST-PHR-2-Stecker-LP785060
• 2x speaker 40 × 40 × 20 mm speaker (is in reality 40 × 40 × 24 mm)
  https://www.roboter-bausatz.de/p/mini-lautsprecher-40mm-4-ohm-3w
• 1x bluetooth amplifier XY-BT5W
  https://www.roboter-bausatz.de/p/bluetooth-4.2-audio-decoder-verstaerker-modul-xy-bt5w

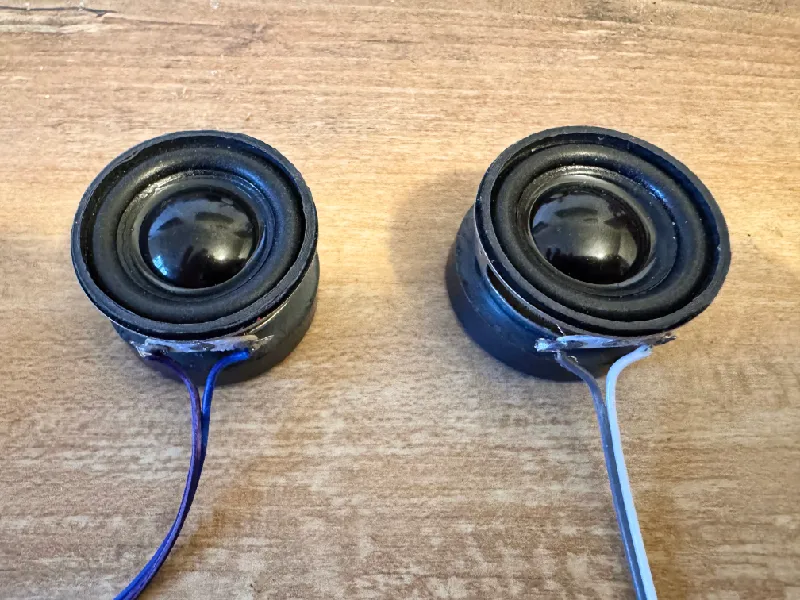

Step 1: Solder speakers

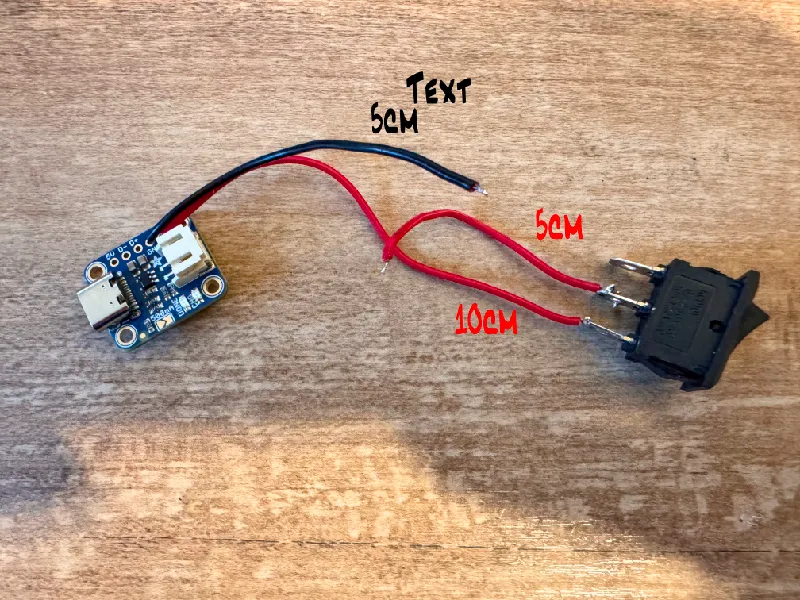

Step 2: Solder Adafruit 4410 and Switch

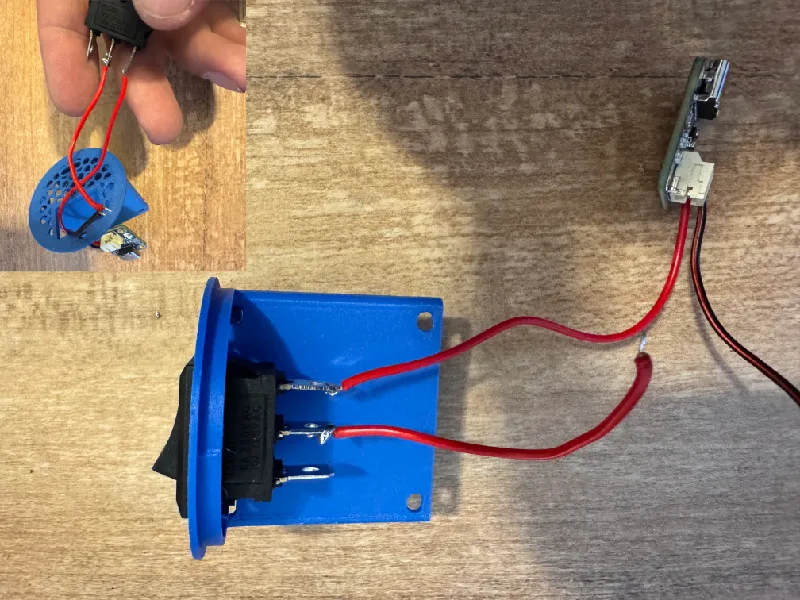

Step 3: Mount switch into backpanel - move Adafruit 4410 through the switch mount hole

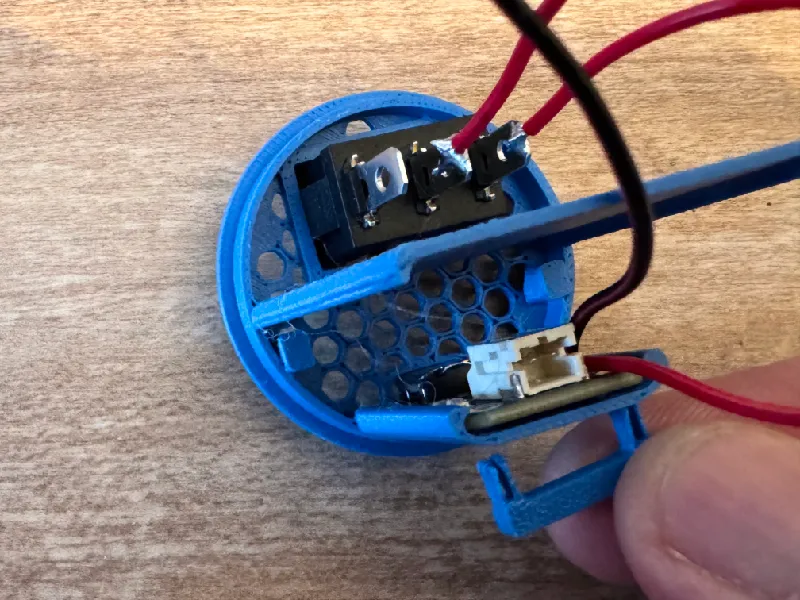

Step 4: Install Adafruit 4410 by pressing the locker through the holes

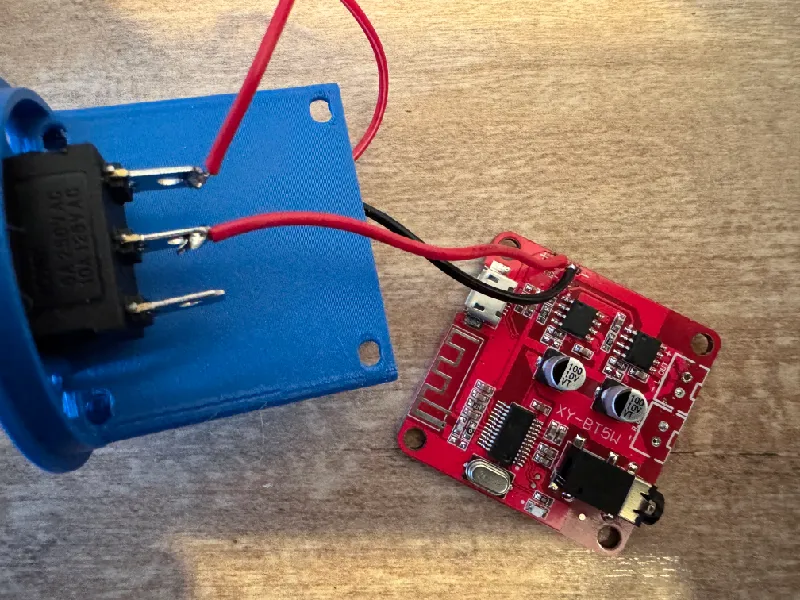

Step 5: Solder power cables to XY-BT5W

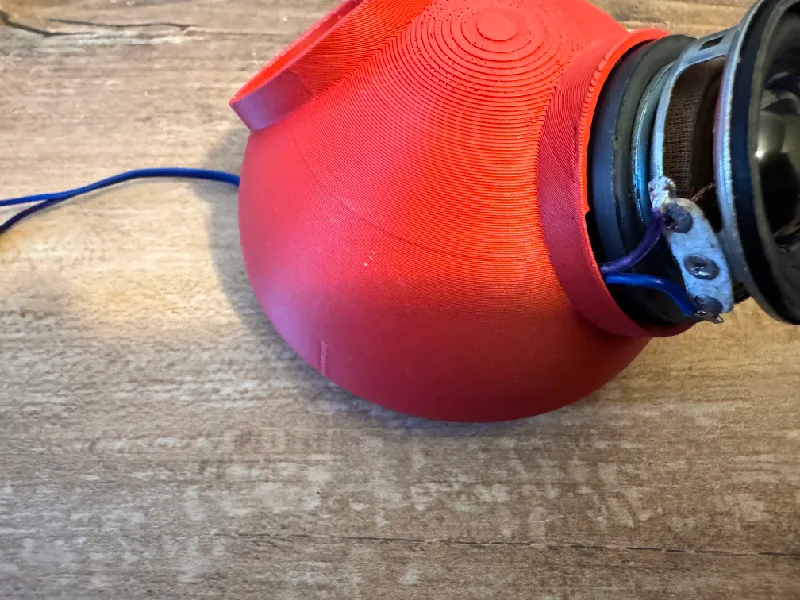

Step 6: Install speakers in the top part

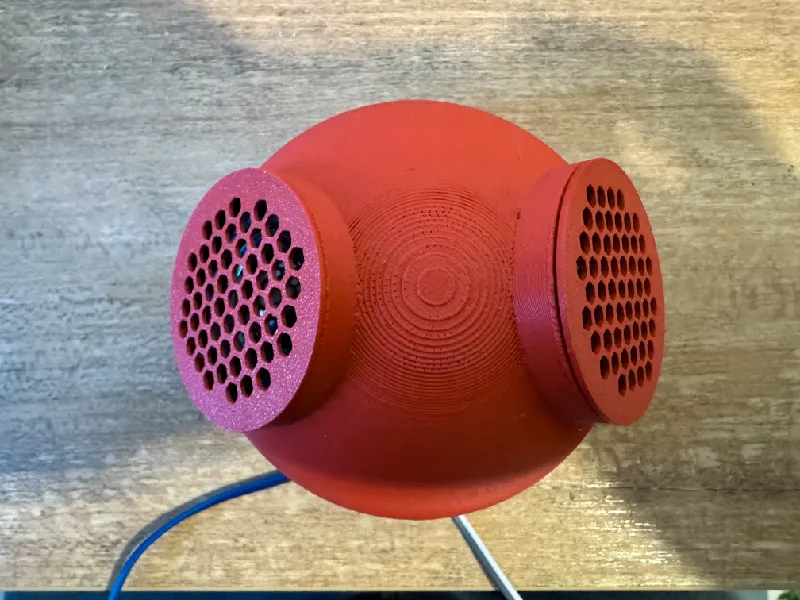

Step 7: Install caps

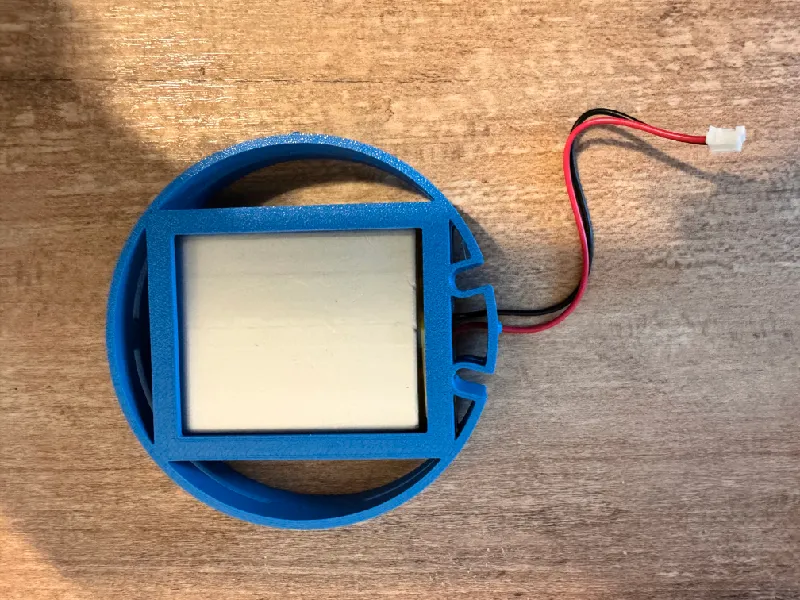

Step 8: Prepare battery by putting the battery between both battery holder parts

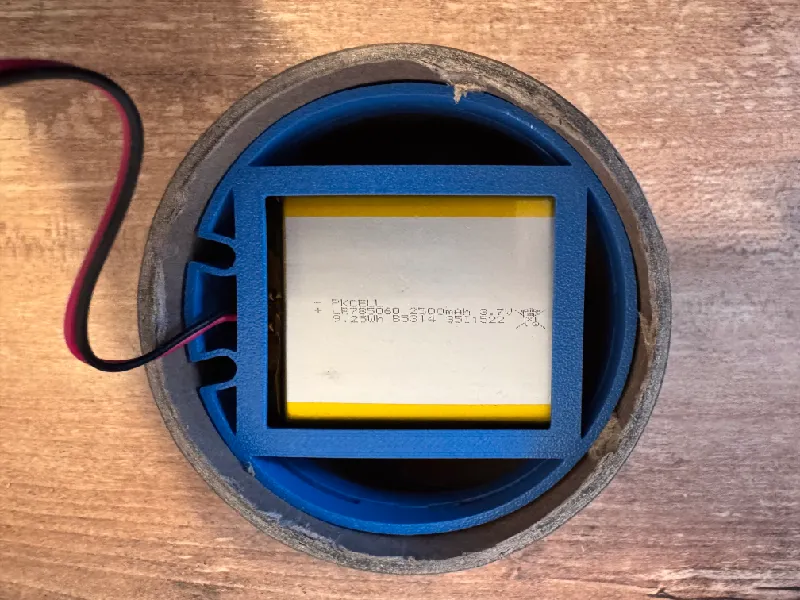

Step 9: Install battery into the cardboard spool (or fake-spool)

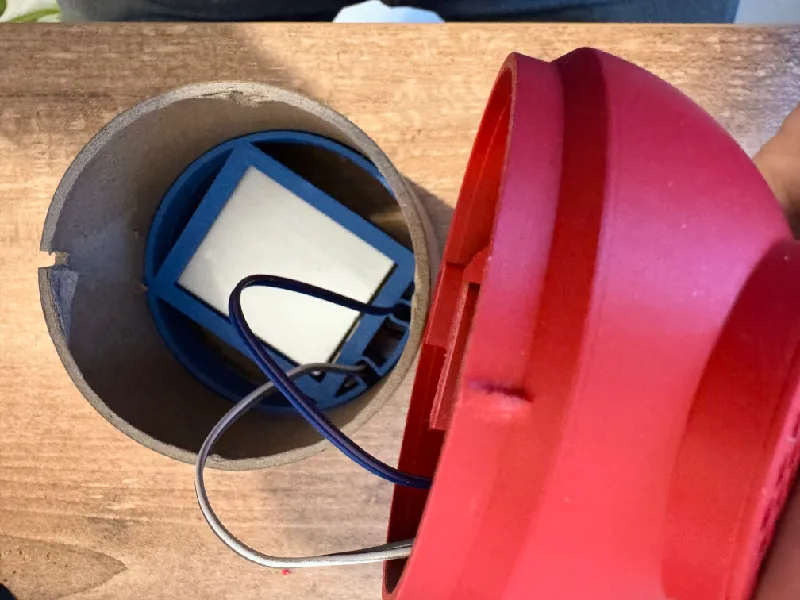

Step 10: Install top part to the card spool and put the wires through the battery holder.

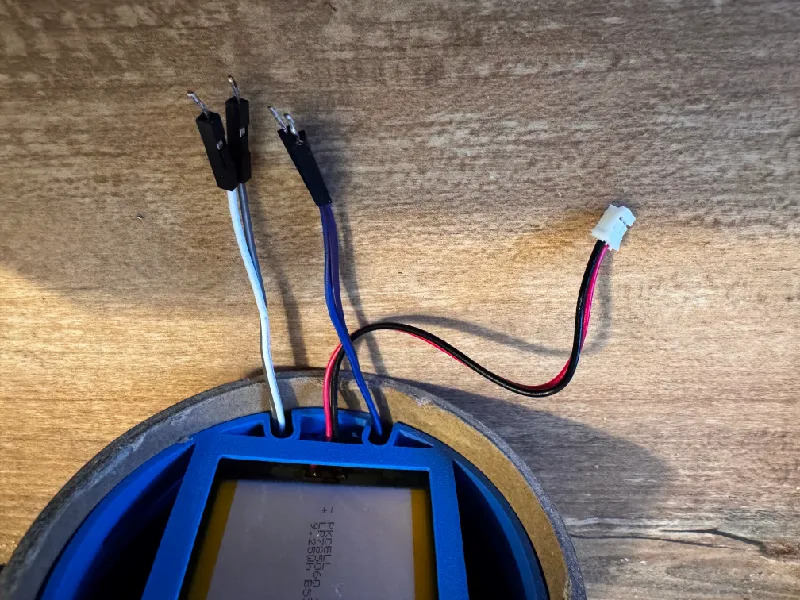

Step 11: Tighten cables

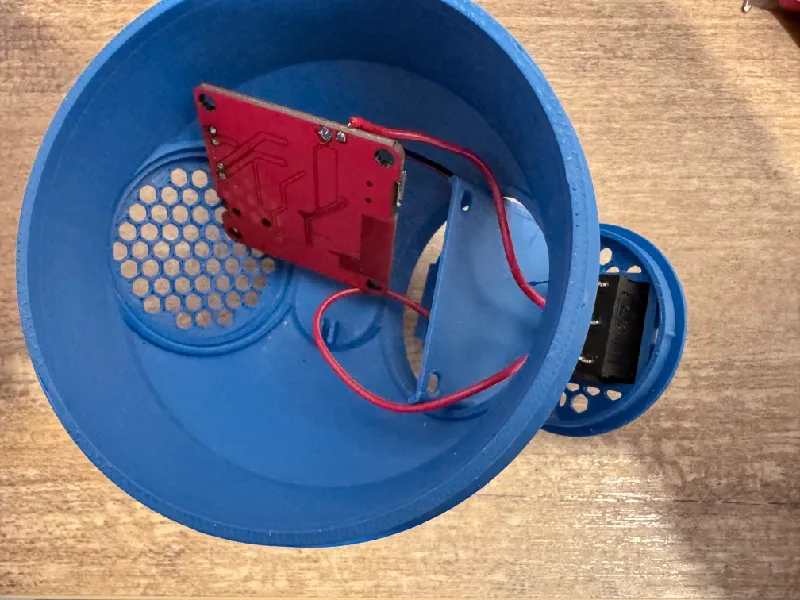

Step 12: Install electronics into bottom part

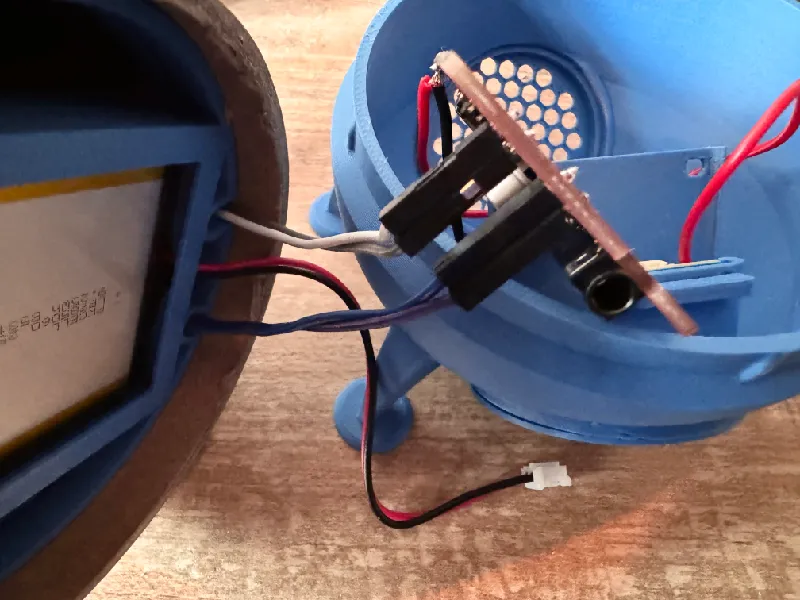

Step 13: Solder seaker wires to the amplifier board

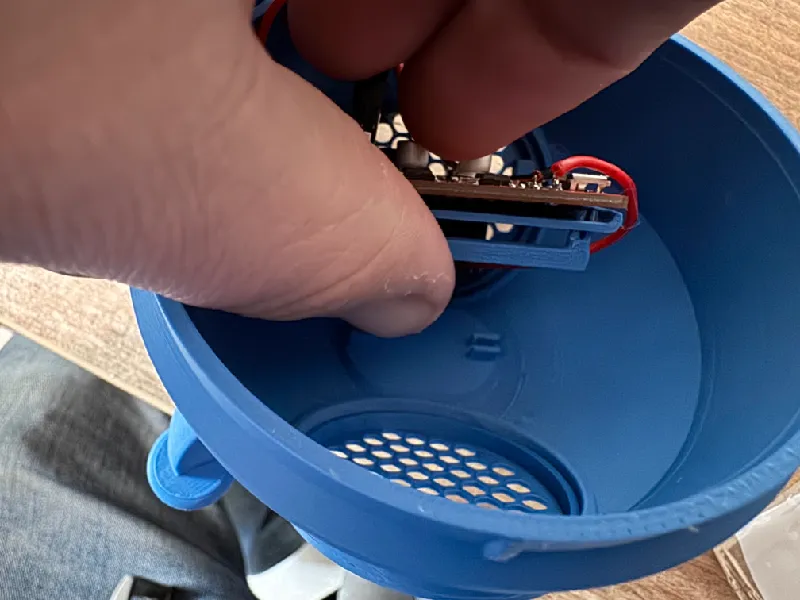

Step 14: Install the amplifier board and lock it with the locker

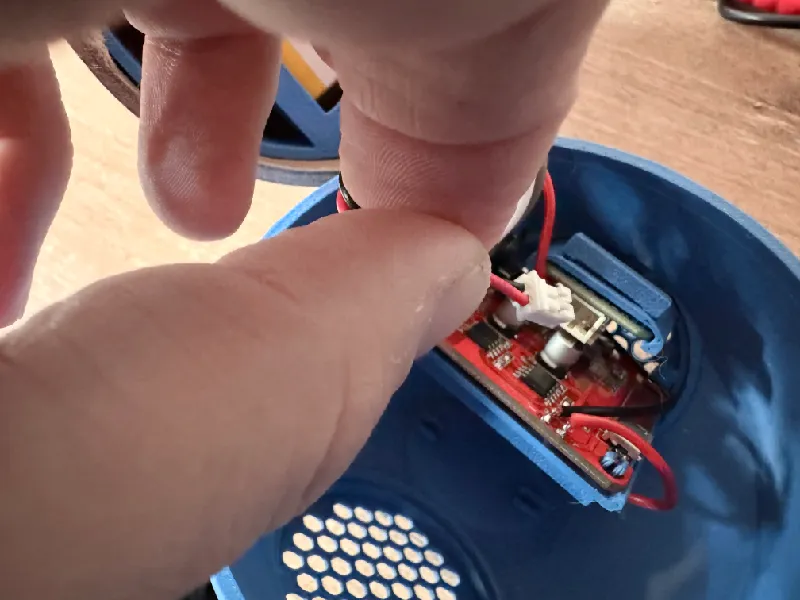

Step 15: Connect the battery

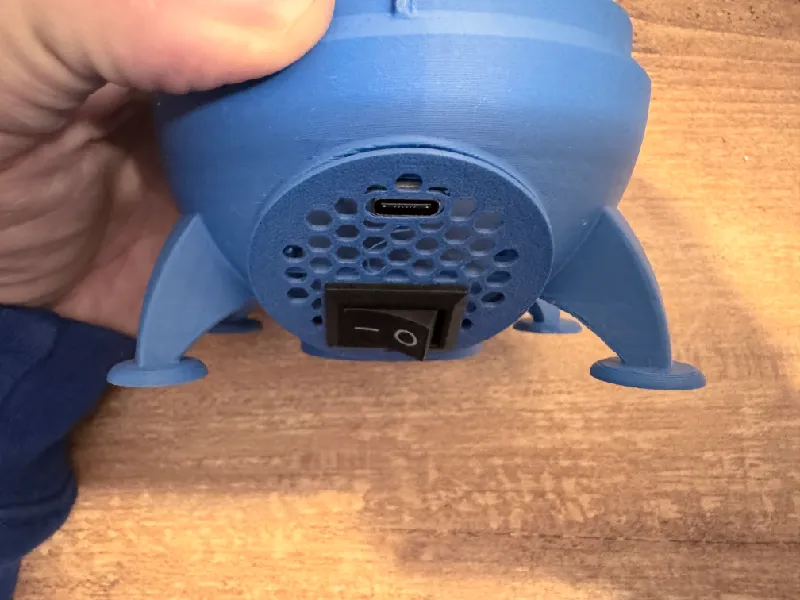

Step 16: Install the connector plate

Done! Lets rock!
