Original Prusa Enclosure Lid Hinge for Quick Release Locking Pin

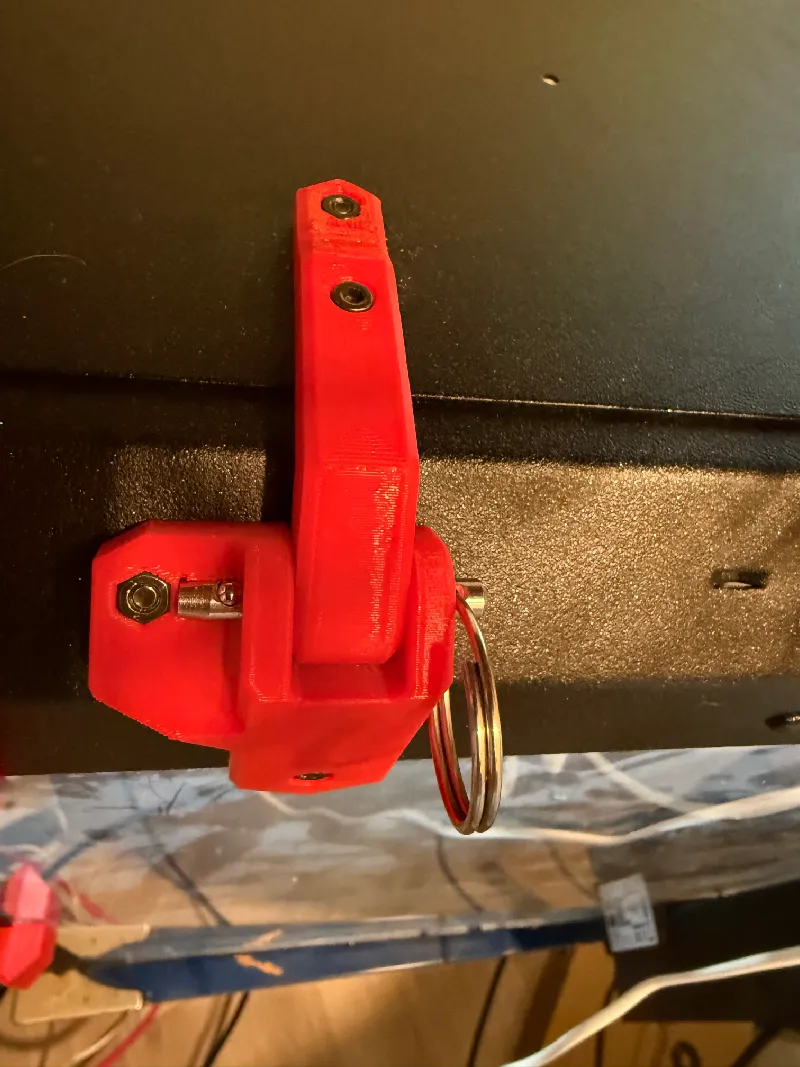

This is a remix of the hinge for the Prusa Original Enclosure lid, designed to work with a more secure pin.
4
6
0
65
updated April 4, 2025
Description
PDFThis remix alters the hinge for the Original Prusa Enclosure lid so that it will work with a Quick Release Bimini Top Pin. These pins are much more secure (less likely to work their way out) and easier to remove when you want to.
You will need to print:
- (1) R1 L
- (1) R1 R
- (2) R2
To mount the hinges, you will need:
- M3x8 screw (8x)
- M3 nut (6x)

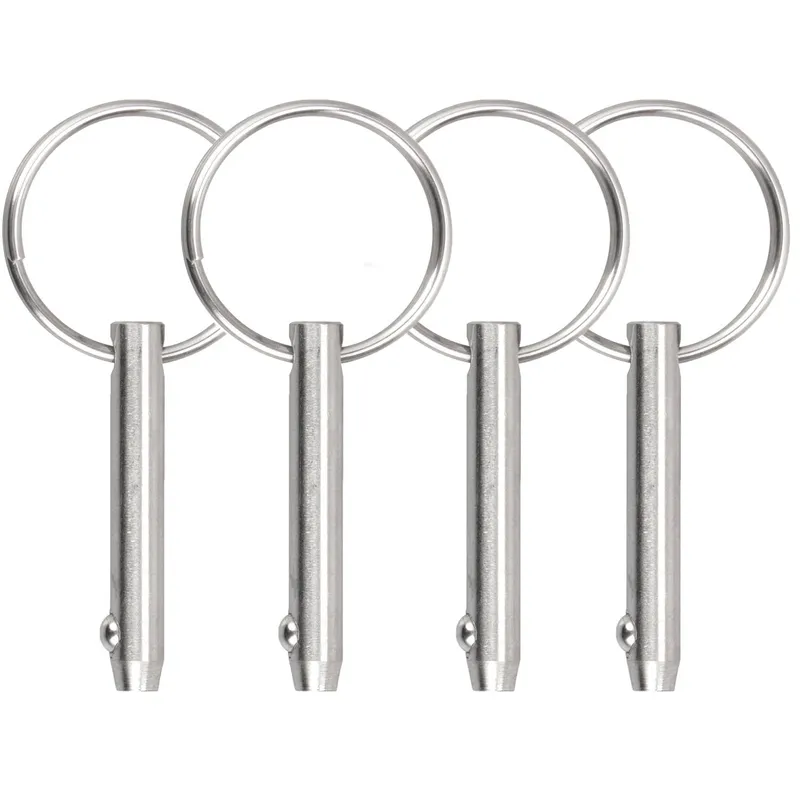

- Quick Release Bimini Top Pin (2x)
- With these dimensions:
- Diameter 3/16"(4.8 mm)
- Overall Length 1.37"(35 mm)
- Usable Length 0.866"(22 mm)
- With these dimensions:
I purchased these pins from Amazon.
MAKERS: Please post a picture with comments here of any prints/makes you do from this model so that I can see how people are using it and whether you are finding success with it. Thanks!
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
This remix alters each hinge to work with a Quick Release Bimini Top Pin with these dimensions:
- Diameter 3/16"(4.8 mm)
- Overall Length 1.37"(35 mm)
- Usable Length 0.866"(22 mm)
