Chernobog airsoft speedloader.

Now this took me some effort.
This is an analouge to the Odin, yes, however they only share the same principle, (and naming conventions because irony).

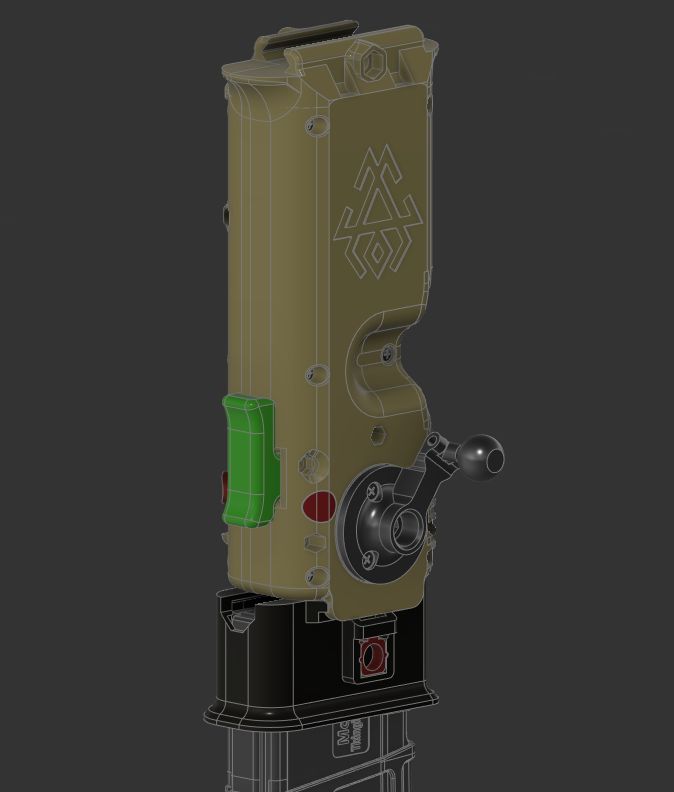

Chernobog has features. Hand crank for loading with one hand holding magazine with another. It is *modular* meaning different magwells can be attached. And the most important feature, it is meant to be printed. As in optimized for 3d printing.
This might be a WIP as in I'm trying to make it load reliable number of bbs (it does from 3 to 5 per pull of the crank, winding crank on the side is very hard to quantify) . Some experimentation is inevitable. Body and most working bits are sound and do function.


Printing is straight forward, first make sure you have orca/superslicer/prusa slicer installed (yes I have opinions on slicers, fight me), then press auto orient, then arrange objects however you see fit. That covers all questions about orientation, slicer literally can tell which is meant.
I recommend to alternate filament choice on static and moving parts. Say static - PLA, moving - PETG. That way wear is lessened.

Let's talk assembly.
Tools required: screwdriver, round nose plyers, deburring tool. knife.

Fasteners list: M3 nuts, 1 M6 nut, 6 M3x30, 9 countersunk (flat head) M3x6, 1 M3x20, 3 M3x25, 1 M6x25 and 1 M3x20.
Springs: 6mm od or 9mm od compression spring. In case not enough, add a 5-6mm od pull spring. Those can be found in generic sets of springs in clear cases.

We also need a roll of 0.5-0.6mm spring wire. Can be found readily, search (spring wire, musical wire, piano wire), cut 20mm, proceed to do a U shape with round plyers, bend 1-2mm up and you have a spring for anti reverse, you'll need 3 or 6 of those.
There is a spring jig file included, bend one end 90 degrees and push wire in the grooves, then cut ecxess. This is a helical gear spring you got. Note that when the spring is relaxed it will expand and expansion depends on how springy the wire is. adjust size with round nose plyers or try to scale the jig and try again in case it's bigger or smaller than the target. Do not scale the height.

At the moment (4.04.2025) I only made ar magazine adaptor, however THERE IS A LIST of magazines I am in position to implement magwells for.

The list be: G36, UMP, ptw, scorpion evo, VSS(LCT),  MP5, FAL(CA), scar H(vfc), AK, M4, SIG550, SR25(except ares), AUG, G3, MP7(vfc), ARP, 417(VFC and S&T) + MY KEK9 and MPX.

Now that I have your attention, clarification is in order. Most of those midcaps I've designed for 3d printing and some can be found on thingiverse (ak12, pmag) and some day here on printables. Others can be found on my boosty page (scar H, FAL, Sig550, SR25, 417, MP7, ARP, AUG, G3, PTW), and those that don't I haven't bothered to finish yet (UMP, G36, VSS). Remaining are what a friend has made and threw files at me (Scorpion evo). And lastly we got magazines I designed for my own 3d printable airsoft body kits (TEC9, MPX).


Given time all those will be covered. But there's a twist. Magwells are on boosty too.
Link → https://boosty.to/mosesind/posts/6420015f-8f4a-461b-863b-283edb365253?share=post_link

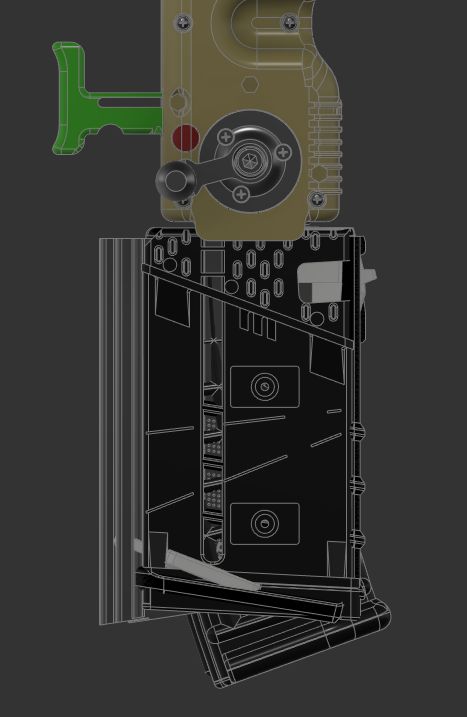

As well as this silly foregrip body version. Second picture showcases some of the magazines awaiting a magwell model.



In case of questions, demands to make some magwell from the list faster, and whatever it is you want to ask, here's my discord → https://discord.gg/DX2meNa6by
