Marking Gauge
A measuring tool consisting of a few printed parts, a metal ruler and some nuts and bolts
125
614
5
2993
updated
January 27, 2022
Description
PDFA marking gauge i use for woodworking projects.
In addition to the printed part you need:
- Metal ruler (crosssection 26mm x 1mm)
- 4x M5x12 socket screw
- 4x M5 nut
- 1x M6x20 hex set screw
- 1x M6 nut

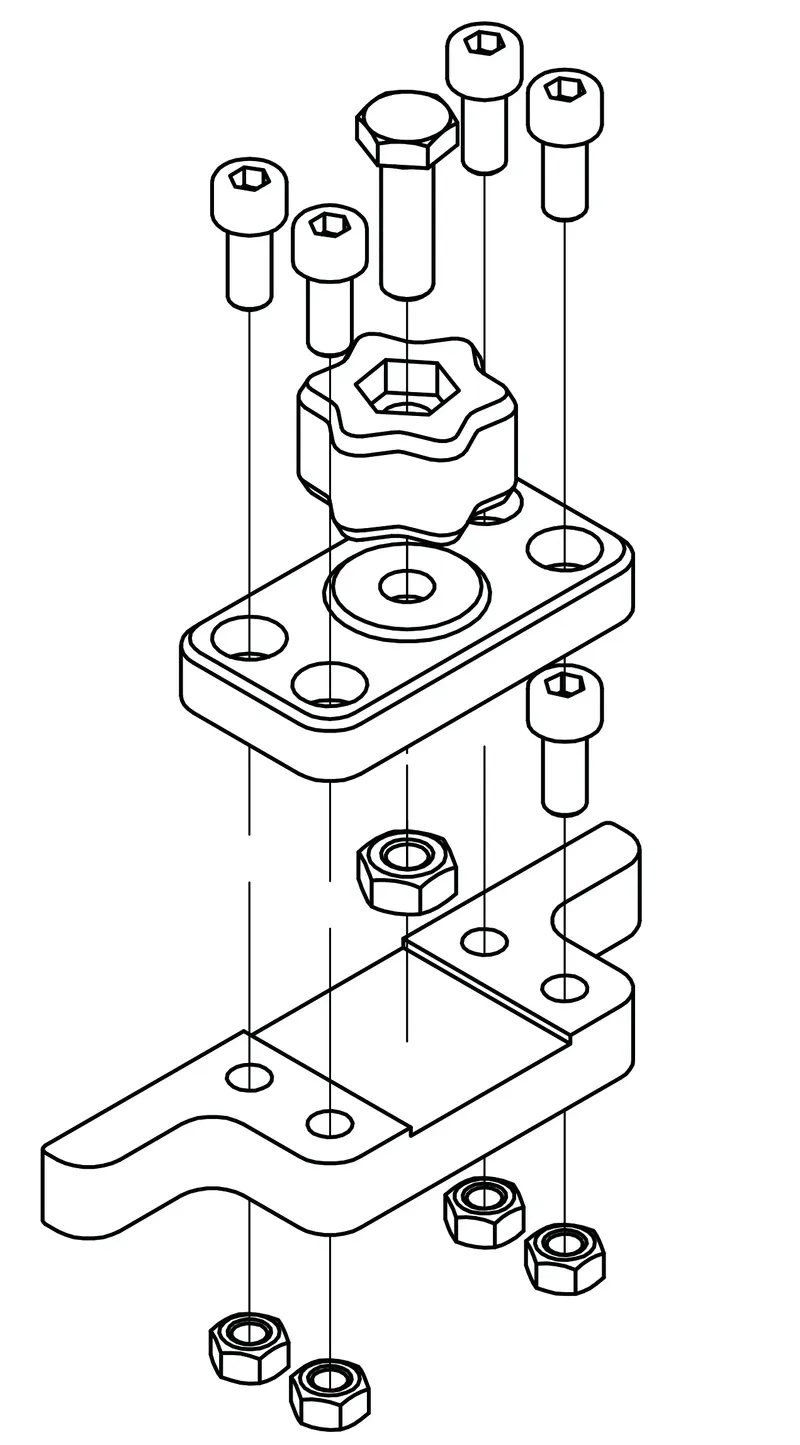

To help you with the assembly here is a little instruction:
Parameter:
- 0.2 mm layer height
- 15 % infill
- no supports needed
