SV06 Plus Logitech C270 Mount

A side extrusion mount for your webcam
0
0
0
15
updated March 31, 2025

Description

PDF

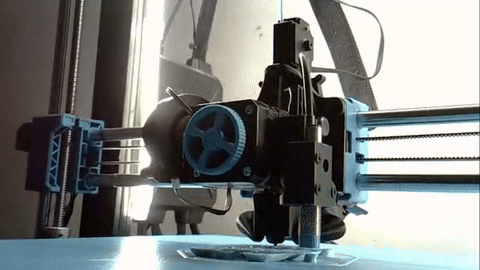

IGNORE THE SHAKINESS IN GIF its to only show the view of the webcam, was still using a magic clamp which the bed kept hitting so i made this mount

Print in whatever filament except flexibles
If you have an enclosure please use the appropriate filament (E.g. ABS if you're printing ABS)

Settings:
Supports - Yes* (i didn't use supports but i have great cooling)
Brim - Yes if you have adhesion issues cause the base is tiny
Walls - 3-4
Line width  - 125%
Infill - Gyroid (or whatever)
Infill % - 15-25%

Model origin

The author remixed this model.

Differences of the remix compared to the original

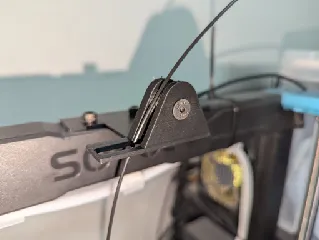

I cut off the bed cable support and added a ¼ 20 mount for a magic arm i had lying around, then made a little platform for the logitech C270 webcam, the platform is kind of a bad design so do make your own if you can.
