Zip Tile - Set

Zip Tile - Set

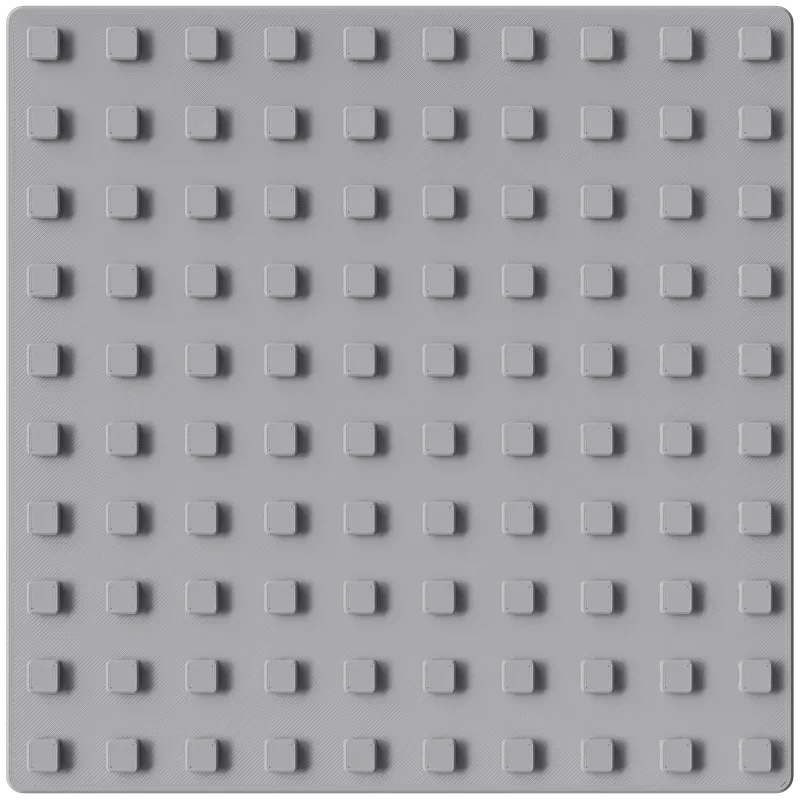

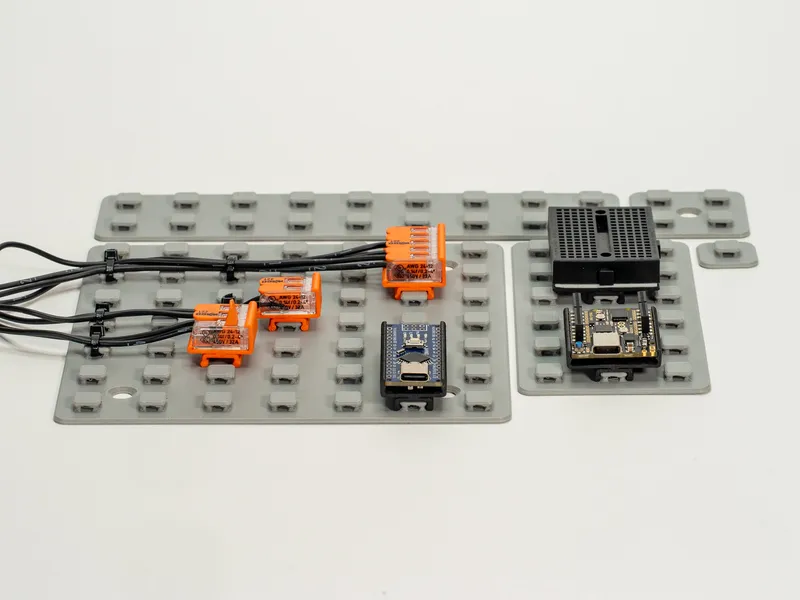

The board to organize your project. The Zip Tile is the result of too many messy IOT projects. Usually screwed down to some random wooden leftover and cables about to disconnect with just a wrong look, was what we wanted to change. The tiles come in 1x1 to 10x10 and everything in between. While zipties hold your cables neatly secured, customized Clickboards for individual boards and components can be placed with just a click.

Design

Simple but versatile. Designed to be printed effortlessly with a minimum of material, we intentionally optimized if for a 0.2mm layerhight to also print fast.

Material

PLA but…! PLA and PETG will withstand the click forces easily, but matt finished PLA (like PolyTerra) might break. PLA will generally hold the Clickboard more firmly and PETG a bit more loosely in place.

Printing

Too easy! The Zip Tiles are a no brainer-, no supports-, no nothing print job, while the Clickboards will benefit from a small brim.

Dimensions

Compatibility

• WAGO 221 412/413/415/2411 (updated)
• WAGO 221 612/613/615 (updated)
• Arduino Nano (updated)
• Arduino Uno (updated)
• Arduino Uno Mini (updated)
• Breadboard Mini (updated)
• Breadboard Half (updated)
• Perfboard Mini (updated)
• Perfboard Half (updated)
• 9V Battery (updated)
• 2x AA Battery holder (updated)
• Shelly
• Shelly Mini
• Potentiometer

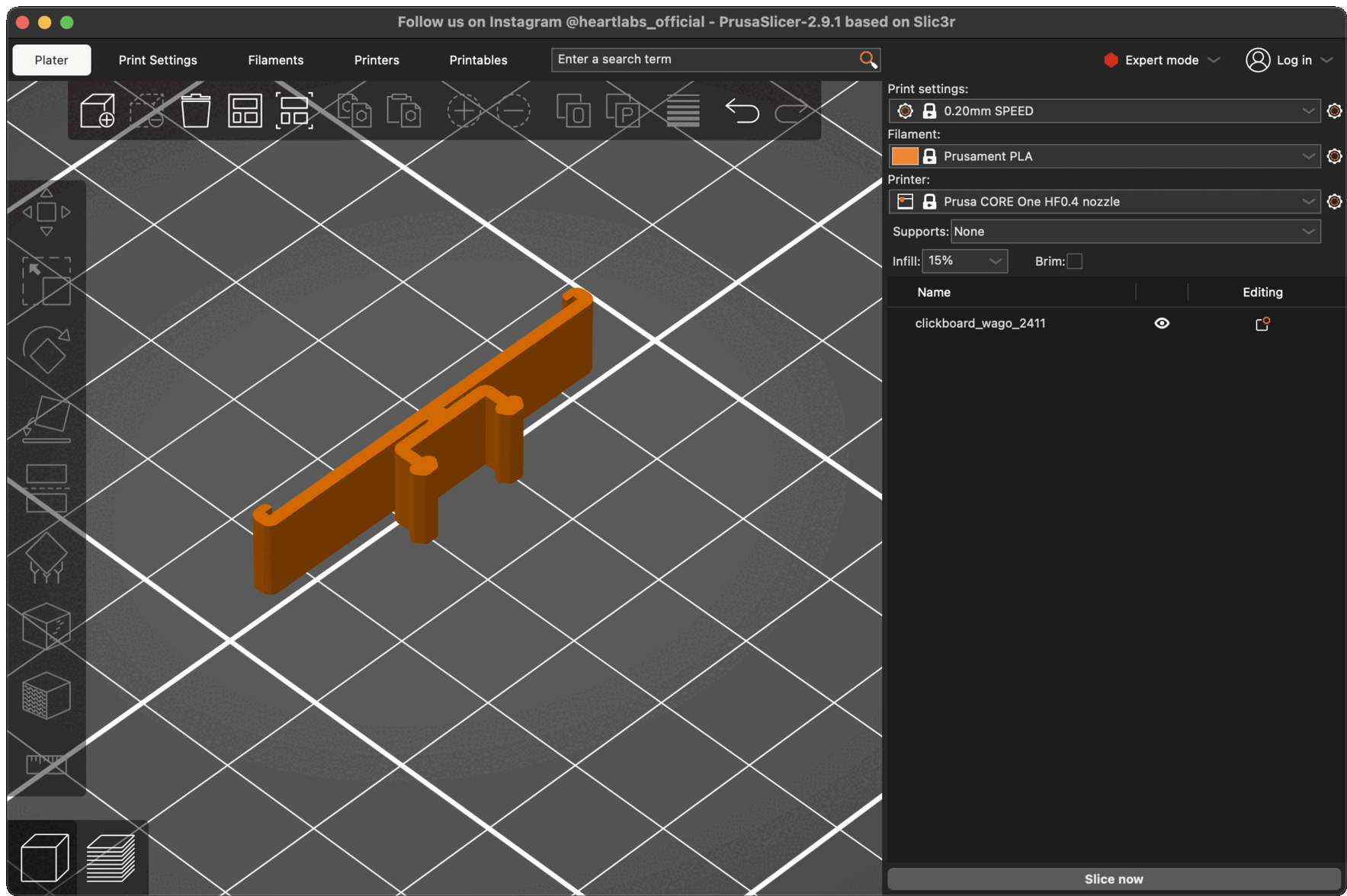

Tip of the print!

Scalable. You can adjust the hight of clickboards directly in your slicer. Just don't forget to open the lock for non-uniform scaling.

Which board should we clickify next? Write us on  Instagram.
