GEN2 165-1W-1.5H Decor Drawer
Description
PDF
The GEN2 Series is the next evolution in the most versatile 3D printed drawer system, the GEN2 Modular Storage System. You can now easily swap drawers around thanks to the fully 3d printable QuickLock mechanism design.
STEP 1: Location
Decide how you would like to use your GEN2 storage. Keep in mind that the drawers are modular and can be easily swapped between under table and table top locations. All drawers are available for mounting under the table using rails, but you can also place them on top of any surface with table top kits.
Find these kits at JERRARI3D/gen2-modular-system
UNDER TABLE (GEN2 RAILS) Attach GEN2 drawers under any surface by installing the GEN2 RAILS. Once installed drawers can slide and lock into place, they can then be swapped out and rearrange in seconds. | TABLE TOP KITS Table Top Kits include covers and foot rails that when combined with drawer cases create a rigid structure that can be placed anywhere |
What You'll Need
Visit Jerrari3D.com for a list of all compatible drawers.
Understanding Part Names

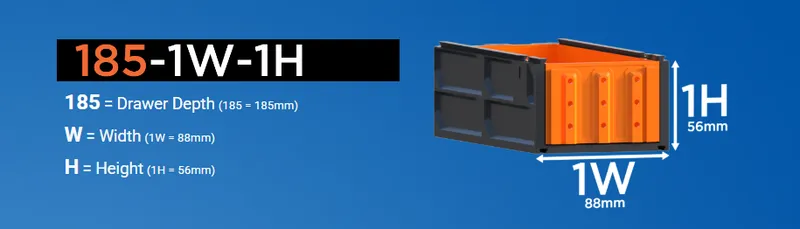

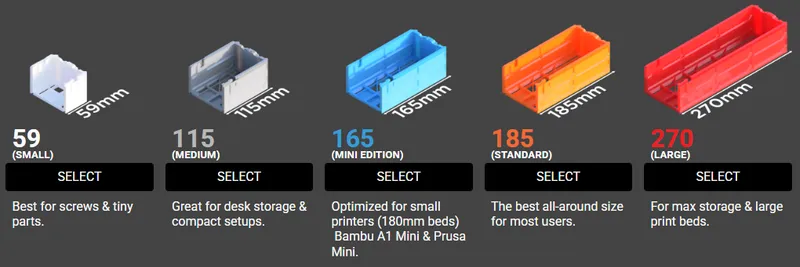

GEN2 drawers are titled by length, width and height, such as in this example.
Choose a Faceplate
Download and customize faceplates HERE
HARDWARE
Includes affiliated links to help support my projects
• Filament - Black PETG (My go to for the drawer bodies) or PLA
• Screwdriver
• Countersunk woodscrews: (Metric: 4x25mm to 4x16mm) or (SAE: #6 or #8 up to 1" long)
• Drill bit that is smaller diameter than the wood screws
• Pen, Marker, or Scratch Awl (for installing under tables)
• Magnets (Optional): 10x5x2mm or 10x2mm
• M3 nuts and screws: M3x6 - M3x10- I prefer this kit
INSTRUCTIONS
Detailed visual instructions at Jerrari3d.com
For basic instruction on assembly please check out the above video
Please note: The Non-Commercial license refers specifically to selling prints. You're absolutely welcome to use my designs in commercial environments—I actually encourage you to use them anywhere you see fit! 👍
